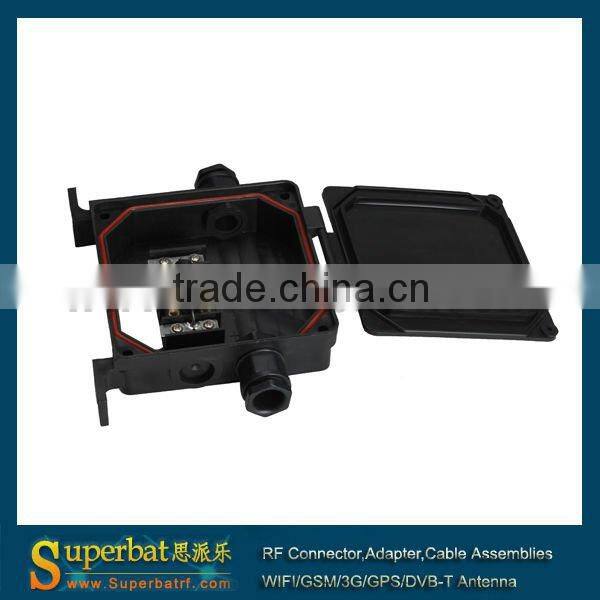

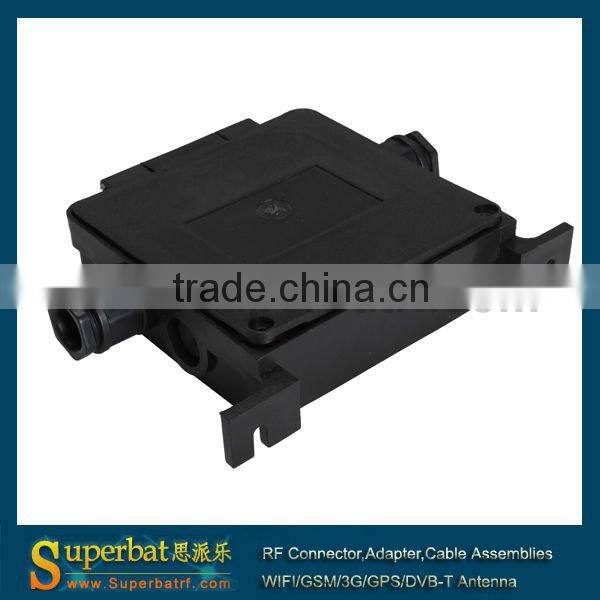

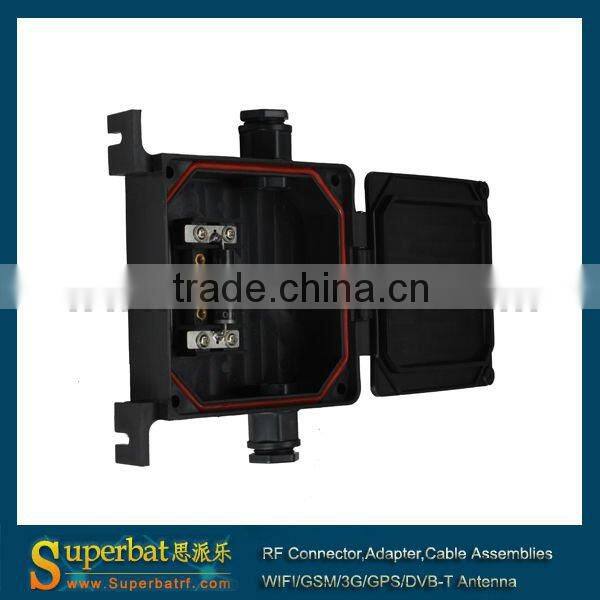

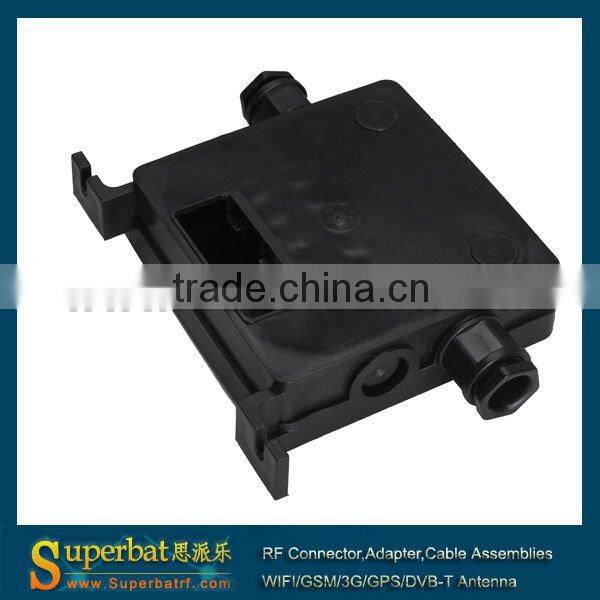

PV Junction Box 50W/70W 6A for Thin-Film Modules Solar Mc3 Connector

Name: PV Junction Box 50W/70W 6A for Thin-Film Modules Solar Mc3 Connector
Brand: Superbat
SKU: 121461603
Availability: InStock

US$ 8.37 - 11.48 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Superbat

Model Number:

PV-1097-JB013

Shenzhen Superbat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Superbat

Model Number PV-1097-JB013

Type Other, PV Junction Box

Specifications

lar mc3 connector
2.Number of Terminals:2/3
3.Overall Dimensions:100*100*30mm
4.Rated Current:6A
5.Diodes:1pcs/2PCS

Model: PV-1097-JB013

Subject	PV Junction Box
Type of appliance	PV Junction Box for Thin-Film Modules
Trademark	Hong Xin Xu
Model No.	PV-1097-JB013
Rated Voltage (VDC)	1000
Rated Current (A)	6A
Diodes	10A10 1pcs /2PCS
Number of Terminals	2/3
Power Range	50W/70w
Application Class (Class A/B/C)	A
Pollution Degree (1/2/3/4)	3
Overvoltage Category (I / II / III / IV)	III
Low Ambient Temperature (°C)	-40°C
Upper Ambient Temperature (°C)	+85°C
Enclosure Rating ( RTI and Flammability Class)	UL94-V0
Wire Cross Section Area Range	2.5mm2-4mm2
Wire Length	90cm or Arbitrary length
Degree of Protection (IP Code)	IP67
Back Sheet of PV Module	TPT,TPE,PET,glass
Contact Material	Copper
Insulation Material	PPO
Overall Dimensions	10010030mm
Outlet of PV Junction Box	TWO
Net Weight	0.120kg
