Specifications
1.mc4 y solar connector2.Wire Size:4mm2
3.Rated Current:10A
4.Overall dimensions:94*94*29mm
5.Diodes Details:2PCS

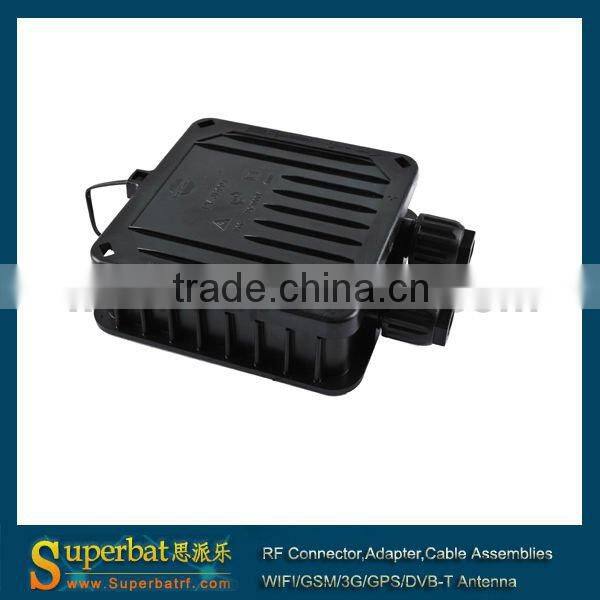

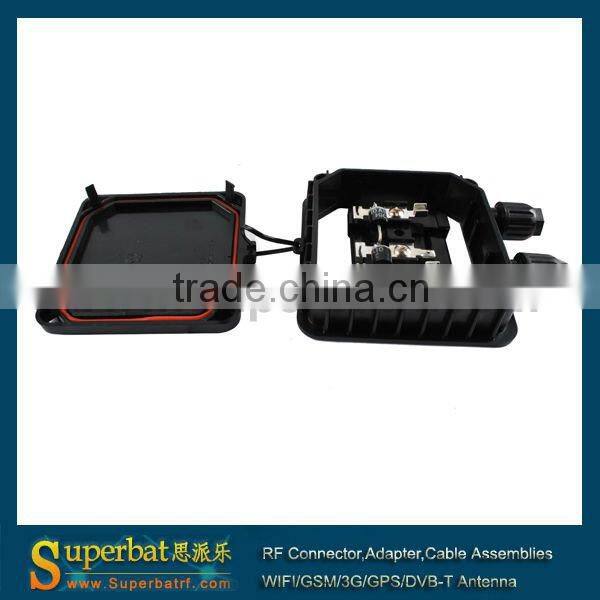

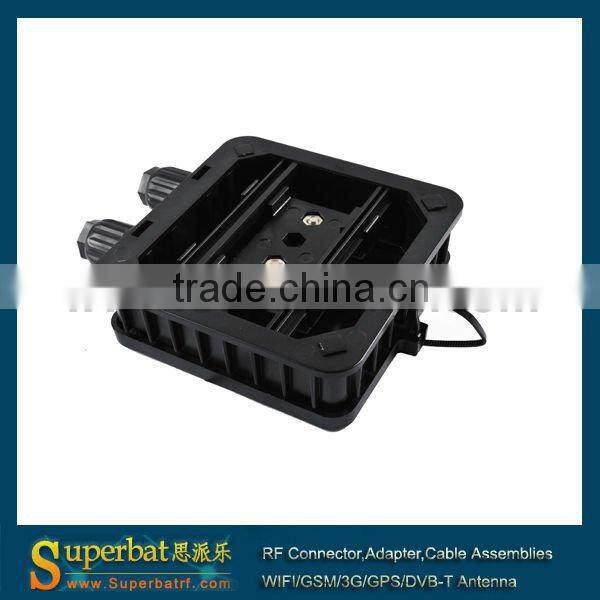

PV Solar Junction Box with 3 rails terminals for 120W Crystallin # C01
Model: PV-2106-JB001-3
The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.
Main technical parameters
| Current for PV Module | 10A |
| Rated Voltage | DC 1000V |
| Protection Degree | IP66 |
| Power Capacity | 120W |
| Touch Protection Class | Ⅱ |
| Temperature Range | -40°C ~ 85°C |
| Diodes Details | 2 PCS |
| Number of terminals | 3 rails |
| Wire Size | 4mm2 (~10 gauge AWG) |
| Contact Resistance | <0.5Ohm |
| Flame Class | UL94-V0 |
| Contact Material | Copper |
| Insulation Material | PPO |
| Standard | DIN V VDE 0126-5:2008 |
| Authentication | TUV RoHS |
| Overall dimensions | 94*94*29mm |
| N.W(KG) | 0.099KG |
Product Features:
1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3. Excellent sealing performance, waterproof and dustproof rating up to IP66.
4 A variety of connectivity options, can provide 2-4 set of input and output wiring, to meet the multi-bypass the need to use high-power Crystalline silicon PV modules.
5 Products for a variety of backplane, with TPT, TPE, and PYE, etc. back to match
6 Products are sold through TUV and RoHS certification, and obtained two patents for utility model and appearance.
7 High-current,high voltage carrying capacity,suitable for 120W crystalline silicon PV modules
8 Patented On PV-JB001
Easy-Using & Cheap! Don't Hesitate~! Just take it~!
Please note these information
