Solar Junction Box for Lowpower PV Module/50-70W Solar Panel Mc4 Connector Tool

Name: Solar Junction Box for Lowpower PV Module/50-70W Solar Panel Mc4 Connector Tool
Brand: Superbat
SKU: 121458027
Availability: InStock

Solar Junction Box for Lowpower PV Module/50-70W Solar Panel Mc4 Connector Tool thumbnail-1

Solar Junction Box for Lowpower PV Module/50-70W Solar Panel Mc4 Connector Tool photo-1

US$ 4.12 - 5.65 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Superbat

Model Number:

PV-2117-JB016-2

Contact Supplier Request Quote Chat Now

Shenzhen Superbat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Superbat

Model Number PV-2117-JB016-2

Type Other, PV Junction Box

Specifications

1.mc4 connector tool
2.Diodes Details:1PCS
3.Overall dimensions:100*74*21mm
4.Wire Size:4mm2
5.Rated Current:7A

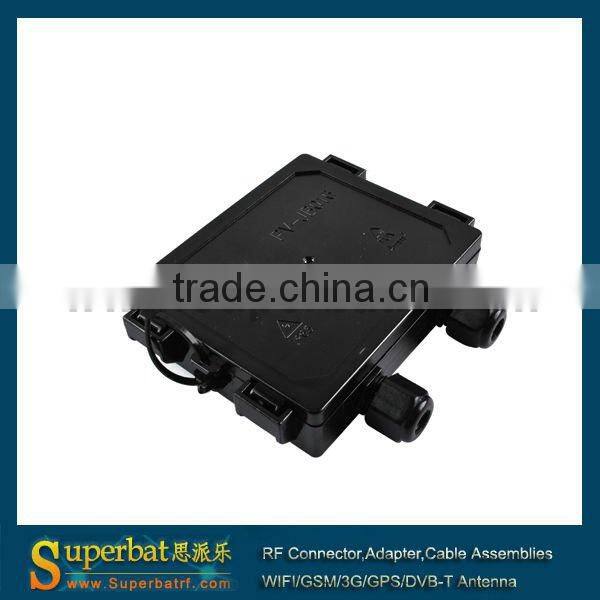

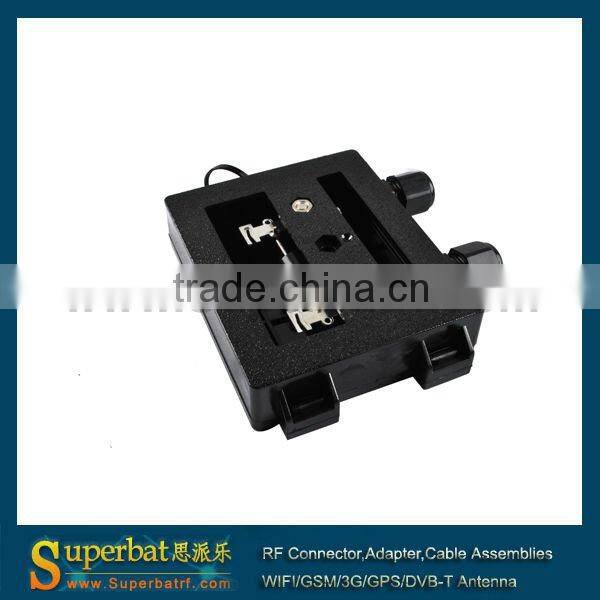

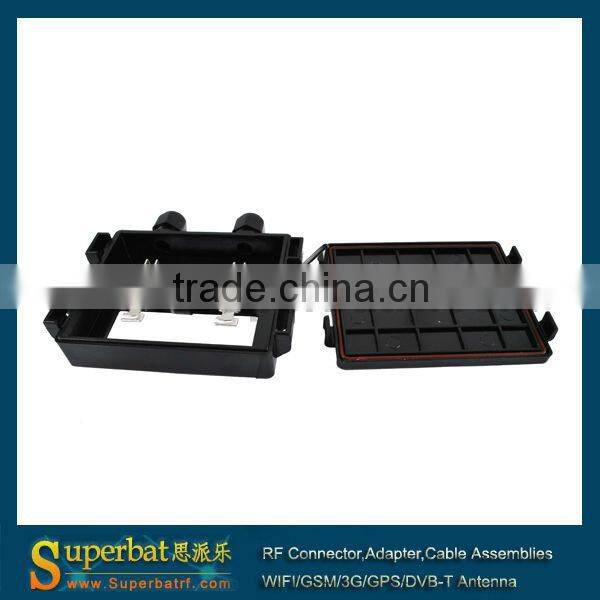

Solar Junction Box for Lowpower PV module/50-70W Solar panel # C01

Model: PV-2117-JB016-2

The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.

Main technical parameters

Current for PV Module	7A
Rated Voltage	DC 1000V
Protection Degree	IP65
Power Capacity	50-70W Solar panel
Touch Protection Class	Ⅱ
Temperature Range	-40°C ~ 85°C
Diodes Details	1 pcs
Number of terminals	2 rails
Wire Size	4mm2 (~10 gauge AWG)
Contact Resistance	<5 Ohm
Flame Class	UL94-V0
Contact Material	Copper
Insulation Material	PPO
Overall dimensions	1007421mm
N.W(KG)	0.070KG

Product Features:

1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3. Excellent sealing performance, waterproof and dustproof rating up to IP66.
4 Designed Specially for 50-70W solar panel, used widely in solar street lights,solar lawn lights etc.
5.Adopted welding and crimping connect way,easy, quick and reliable.With Low price,reduce production cost.
