PV Solar Junction Box for Low Power PV Module /80-110W Solar Mc4 Connector Tool
- shenzhen
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
PV Solar Junction Box for Low Power PV Module /80-110W Solar Mc4 Compatible Connector
-
PV Solar Junction Box for Low Power PV Module /80-110W Mc3 Mc4 Solar pv Connector Cable
-
6A PV Junction Box 50W/70W for Thin-Film Modules 4mm Mc4 Connector Solar Cable
-
6A PV Junction Box 50W/70W for Thin-Film Modules Mc3 pv Connector
-
6A PV Junction Box 50W/70W for Thin-Film Modules Male and Female Solar Connector
-
PV Solar Junction Box for 2-10watt Module,screws Inlcuded Mc4 Solar Panel Connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | Superbat | |
| Model Number | PV-2129-JB030-3 | Type | Other, PV Junction Box |
Product Description
Specifications
1.mc4 connector tool2.Diodes Details :2PCS
3.N.W(KG):75g
4.Rated Current:7A
5.Overall dimensions:110*70*22mm

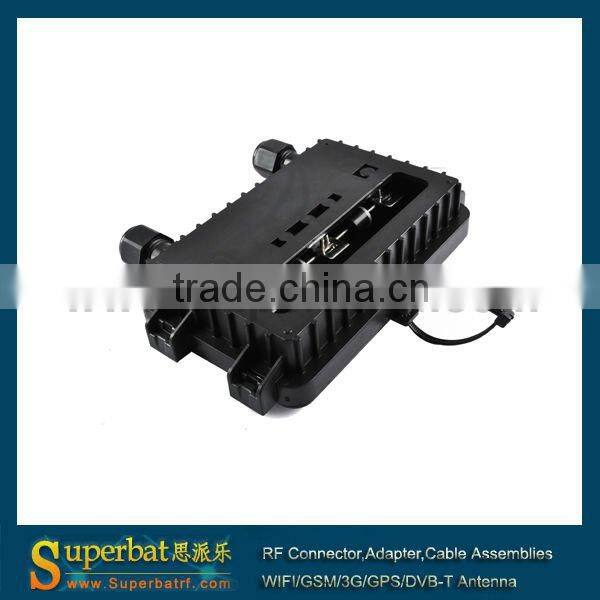

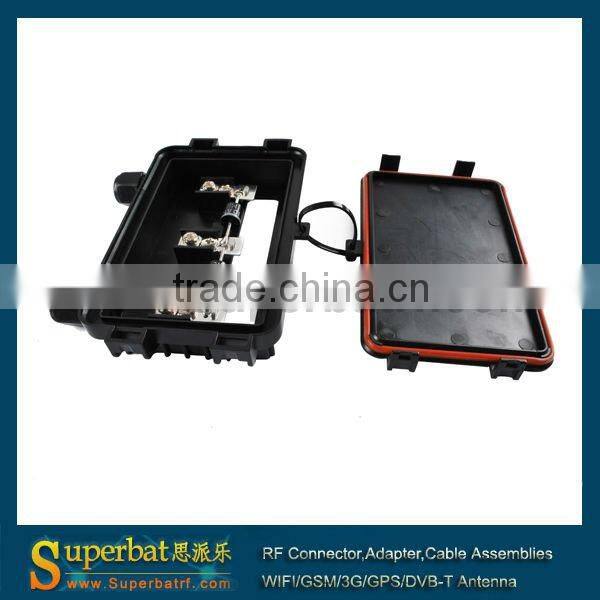

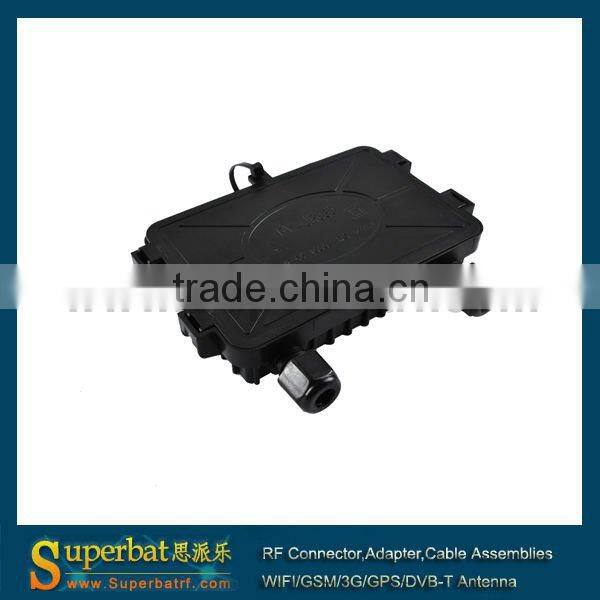

PV Solar Junction Box for Low power PV module /80-110watt solar # C01
Model: PV-2129-JB030-3
The Solar Junction Box, designed for robotic-assembly of silicon photovoltaic systems, reduces assembly time and production costs for PV-panel manufacturers. Rugged and durable, IP67-sealed, DC connectors feature simple snap-lock mating and an internal locking mechanism for superior safety. They are designed for direct connection to solar junction boxes, field installations and PV grid wiring. In addition, DC double-insulated cable assemblies, with proven long life cycle and optimum weather resistance, meet the demands of harsh and outdoor solar wiring applications.
Main technical parameters
| Current for PV Module | 7A |
| Rated Voltage | DC 1000V |
| Protection Degree | IP65 |
| Power Capacity | 80-110W Solar panel |
| Touch Protection Class | Ⅱ |
| Temperature Range | -40°C ~ 85°C |
| Diodes Details | 2 PCS |
| Number of terminals | 3 rails |
| Wire Size | 1.5mm2 -4mm2 |
| Contact Resistance | <0.5Ohm |
| Flame Class | UL94-V0 |
| Contact Material | Copper |
| Insulation Material | PPO |
| Overall dimensions | 110*70*22mm |
| N.W(KG) | 0.075KG |
Product Features:
1.With the capacity of anti-aging and UV resistant, provide longer life span under outdoor bad condition.
2.Adopted reliable connection solution ,simple,quick and safe effective field assembly.
3.Designed Specially for 80watt to 110watt solar panel,used widely in solar street lights,solar lawn lights etc.
4.Adopted welding and crimping connect way,easy,quick and reliable
Easy-Using & Cheap! Don't Hesitate~! Just take it~!
