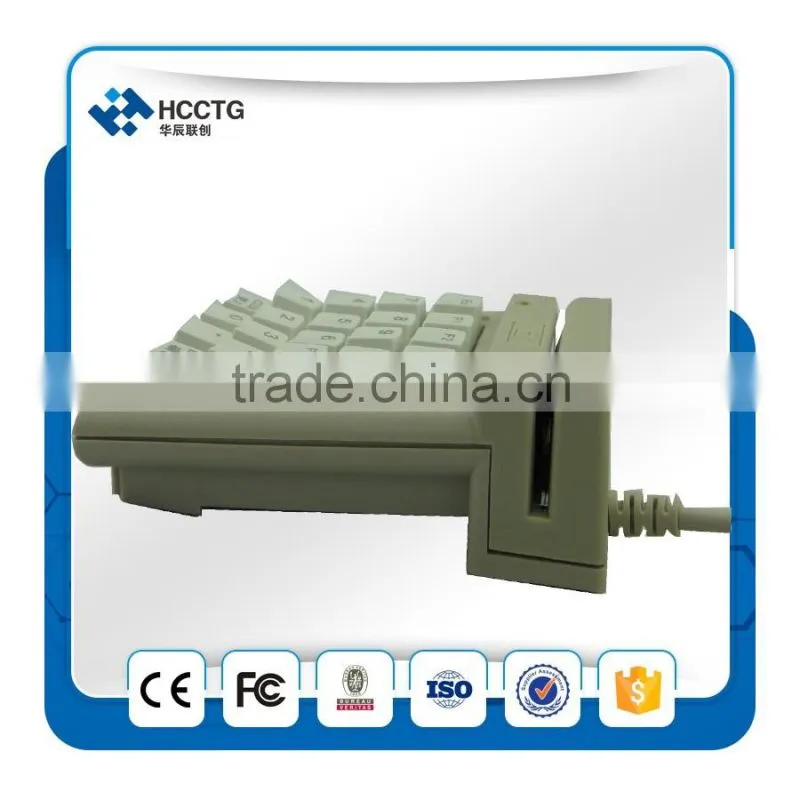

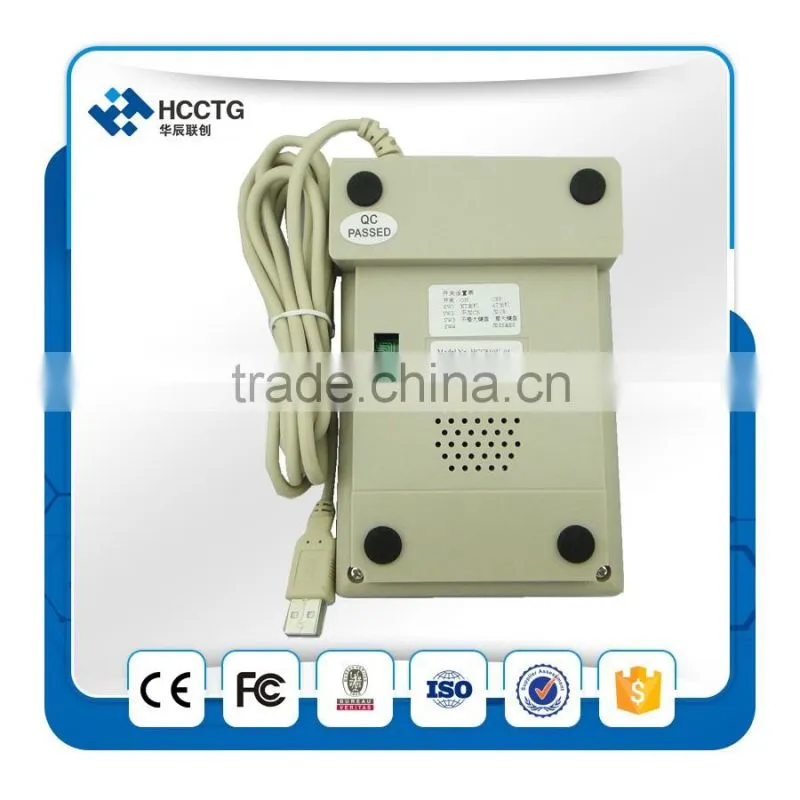

terminal payment method pinpad/alipay payment sblc/card-HCC810
General
HCC 810 series keypad combine PIN input, magnetic stripe and barcode reading function together, provide convenient & flexible application for banks, POS and retail systems.
Feature
Ÿ Optional slot reader for barcode or magnetic stripe
Ÿ PS/2 or RS-232 communication interface, USB at optional
Ÿ LED and audio beep indicators
Ÿ Single or dual-track configuration
Ÿ Bi-directional swipe
Ÿ ISO 7810/7811/7812/7813 compliant
Ÿ Recognize many kinds of barcode, such as EAN/JAN-8/13 Code 39/128 Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5 etc.
Ÿ Easy configuration through barcode menu
Specification
Keypad |
18 or 20 keys, DES or Triple DES encryption at optional |
Communication interface |
RS232, standard keyboard, PS/2 or USB at optional |
Power supply |
DC +5V , 40 to 80mA |
Manual swiping speed |
20~100mm/sec |
Reliability |
> 500,000 times pass |
Working temperature |
5~45℃ |
Humidity |
10%~90% RH non-condensing |
Dimensions (L*W*H) |
180mm*113mm*40mm |
Housing |
Plastic PC, Ivory color |
Model Description
810x1-x2x3x4
Type |
X1 |
Interface |
X2X3 |
Tracks |
X4 |
Encryption |
810 |
R |
RS232 Series port |
04 |
1&2 tracks |
0 |
No |
|
U |
USB port |
05 |
2&3 tracks |
1 |
Yes |
|
K |
Keyboard compatible |
06 |
1&2&3 tracks |
|
|
