Help CenterHigh Gain Outdoor 14dbi 2.4G WIFI Patch Panel Antenna
Related Products

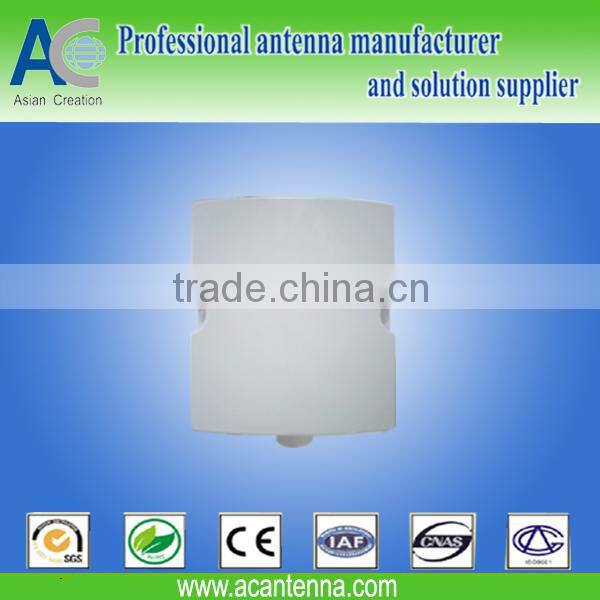

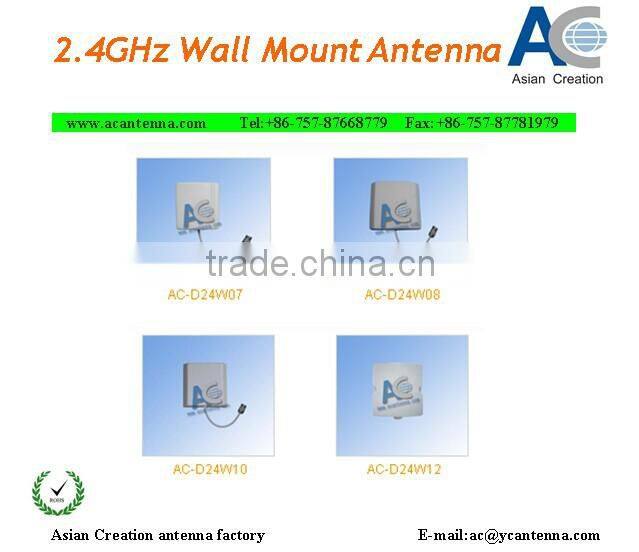

High gain outdoor 14dbi 2.4G WIFI patch panel antenna
Applications:
* 2.4GHz ISM band
* 2.4GHz WLAN system
* WiFi system
* Point to point and point to multipoint
Features:
* Low VSWR
* Compact size, Good appearance
* Strong adaptability of environment
* Designed by broadband technology
* DC grounded
Electrical Specifications | |
Model | AC-D24W10 |
Frequency Range | 2400-2483MHz |
Gain | 14dBi |
VSWR | ≤1.5 |
Polarization | Vertical |
Horizontal Beamwidth | 65° |
Vertical Beamwidth | 35° |
F/B Ratio-dB | >25 |
Impedance | 50ohm |
Maximum Input Power | 100W |
Connector | N Female |
Operating Temperature | -40℃ to+80℃ |
Mechanical Specifications | |
Antenna Dimension | 207*180*45mm |
Weight | 500g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
