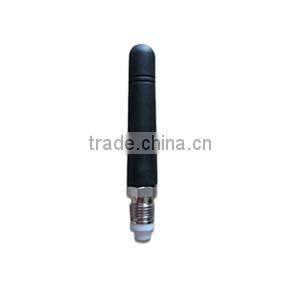

Fme Connector Wireless 2.5dbi Small Commnucation Antenna

Specifications

fme connector wireless 2.5dbi small commnucation antenna
1.Frequency Range:2400-2483MHz
2.Gain:2.5dBi
3.Antenna Size:10x55mm

   fme connector wireless 2.5dbi small commnucation antenna





Applications:

for 2. 4ghz spread spectrum of communications mobile

terminal design of the secondary benefits of antenna an

antenna body. the special rubber in beauty for installing.



Features:

antenna for 2. 4g system of communication terminals. the antenna

design of the production structure and beauty for installing.





Electrical Specifications:
Frequency Range	2400-2483MHz
Gain	2.5dBi
VSWR	≤1.8
Polarization	Vertical
Impedance	50ohm
Maximum Input Power	50W
Connector	FME Female
Operating Temperature	-40°C to+80°C
Mechanical Specifications:
Antenna Dimension	Φ10×55mm
Weight	9g
