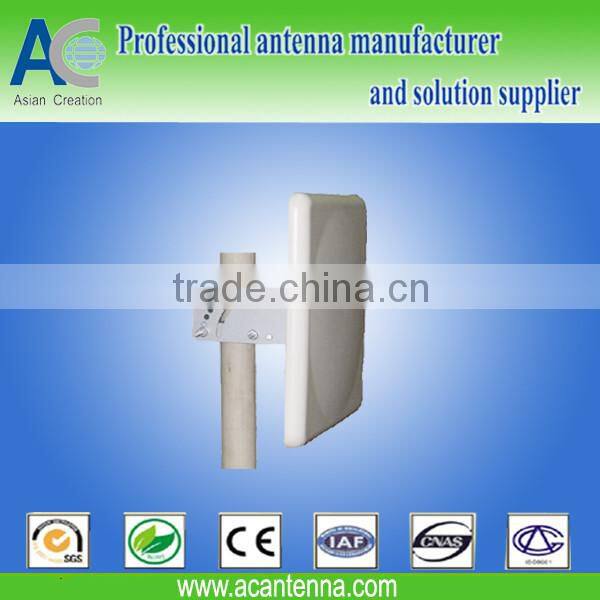

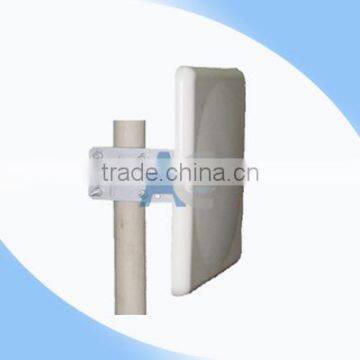

outdoor wireless wifi antenna 5km panel type
Applications:
* 2.4GHz UNII Application
* 2.4GHz ISM Application
* 2.4 GHz WLAN System
* IEEE802.11a,g
* WIFI System
Features:
Integrative Application

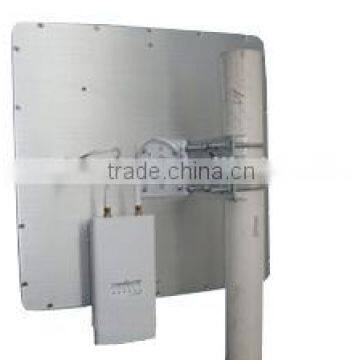

CPE could be put in Enclosure
Gain: 18dBi
V/H Polarization
Electrical Specifications | |
Model | AC-D24W18 |
Frequency Range | 2400-2483MHz |
Gain | 18dBi |
VSWR | ≤1.5 |
Polarization | Vertical |
Horizontal Beamwidth | 20° |
Vertical Beamwidth | 20° |
F/B Ratio-dB | >28 |
Impedance | 50ohm |
Maximum Input Power | 100W |
Connector | N Female |
Operating Temperature | -40°C to+80°C |
Mechanical Specifications | |
Antenna Dimension | 305*305*20mm |
Weight | 650g |
Enclosure | Material Aluminium Die Cast |
Mounting | Mast Diameter-mm Ø30~Ø50 |
Rated Wind Velocity | 241 Km/h |
