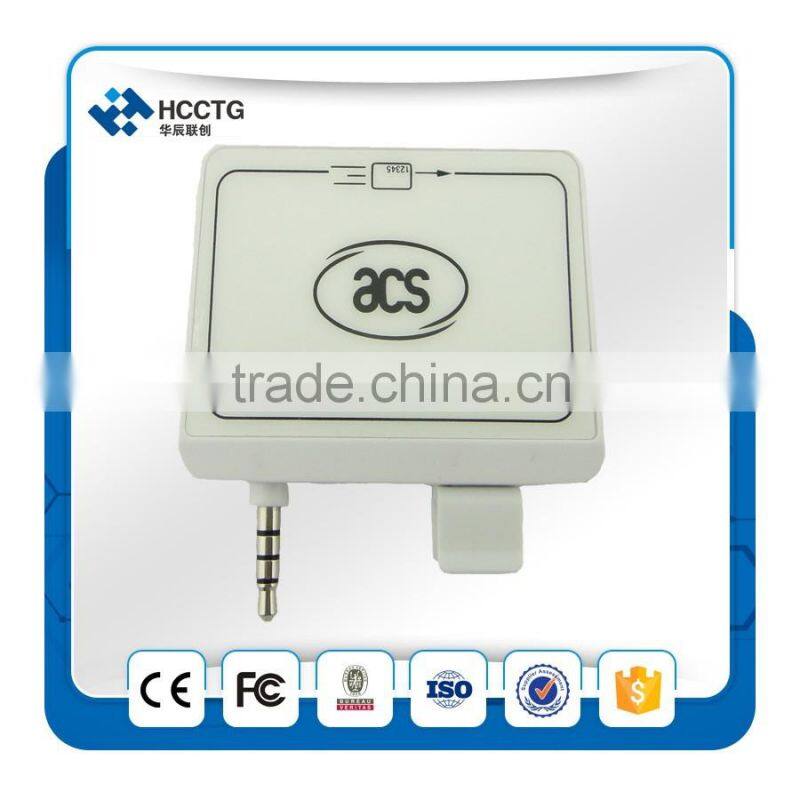

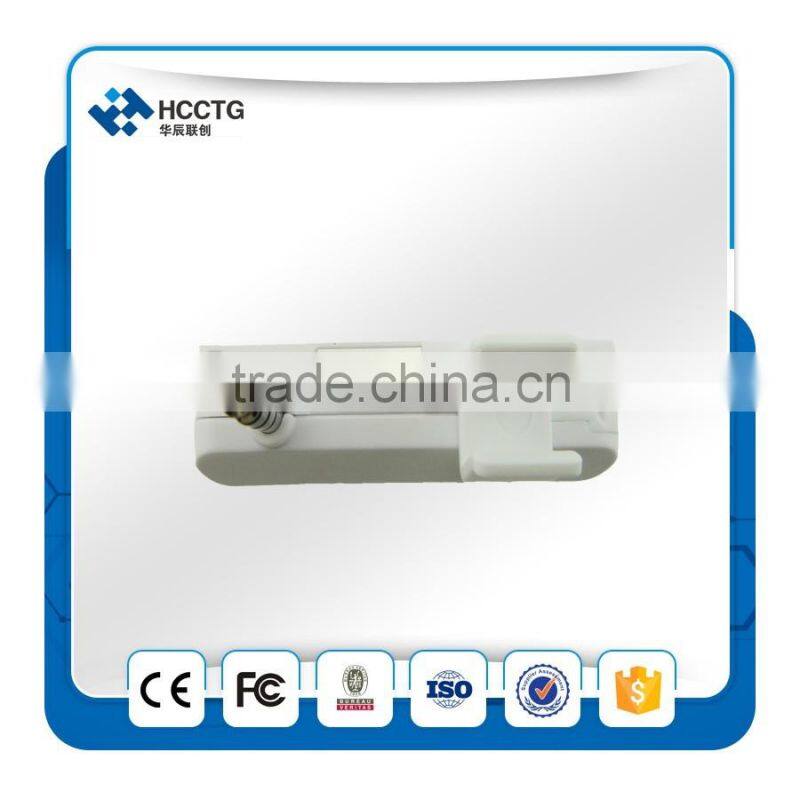

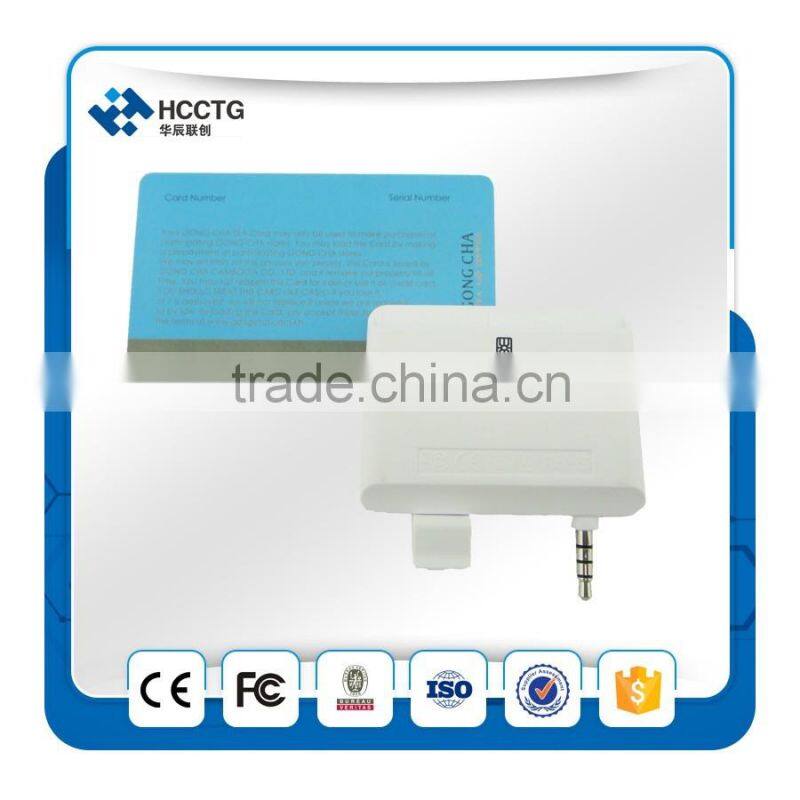

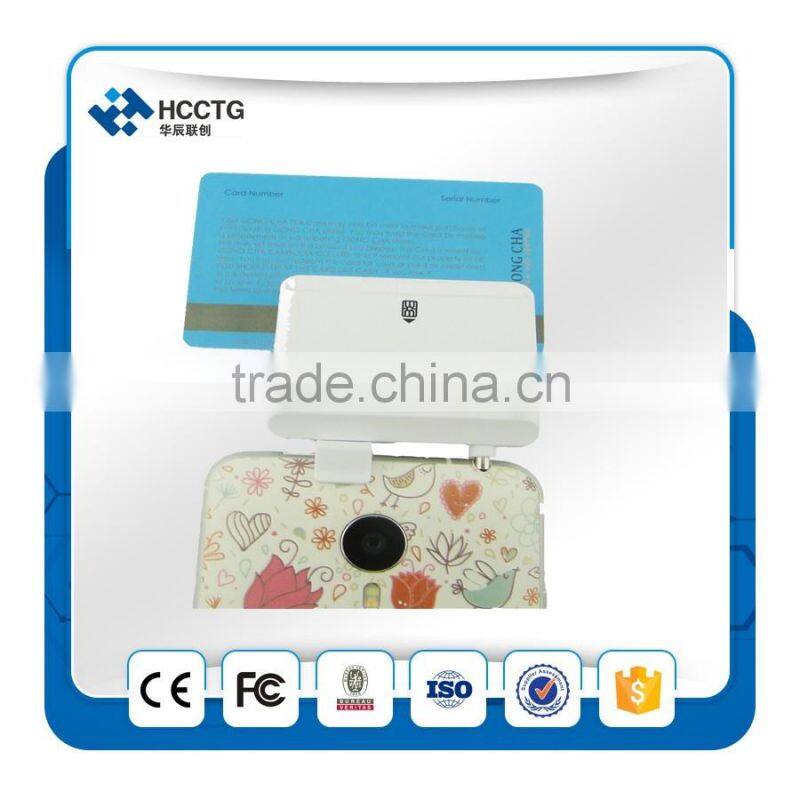

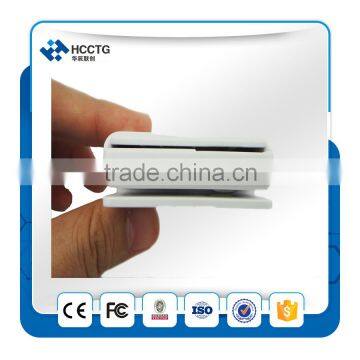

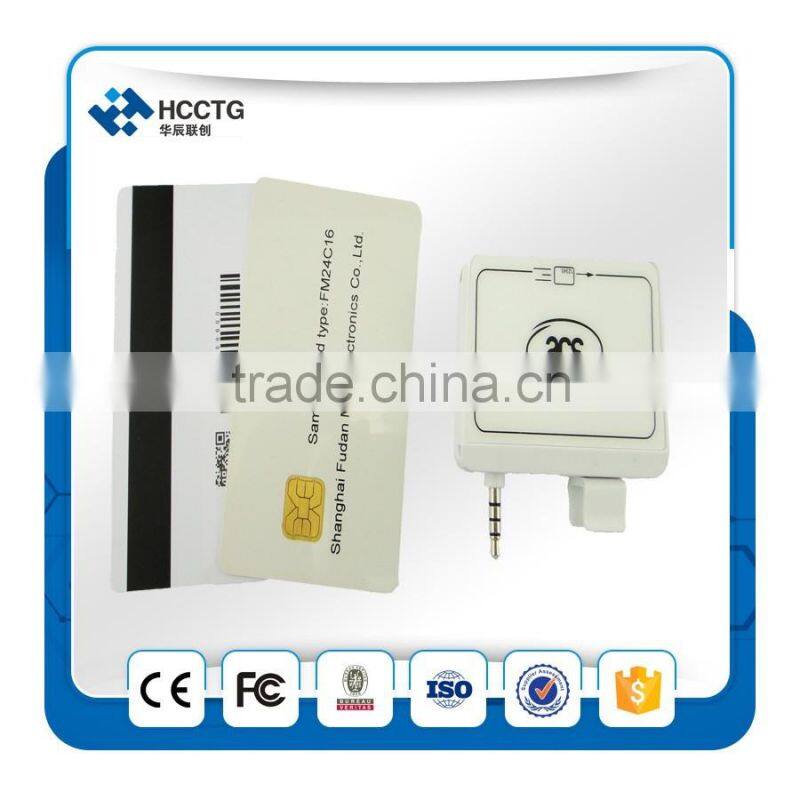

mobile pos terminal emv kiosk smart ic card reader/writer-ACR32
Overview:
ACR32 MobileMate Card Reader is the ideal tool that you can use with your mobile device. Combining two card technologies into one, it provides its user the flexibility to use magnetic stripe cards and smart cards without the additional cost.
Additionally, ACR32 Mobile Mate uses a rechargeable Lithium-ion battery as its power supply and a standard 3.5mm audio jack interface , thus allowing it to be integrated impeccably into any mobile device in the market.
ACR32 Mobile Mate is a reliable mobile card reader that uses AES-128 encryption algorithm and DUKPT Key Management System for secure transactions. It seamlessly unites card reader functionality with mobility, which allows you to access secure applications anytime, anywhere.
Features:
- Ø 3.5mm Audio Jack Interface
- Ø USB-Powered (PC-linked Mode):
n USB 2.0 Full Speed Interface
n CCID Compliance
n Application Programming Interface:
u Supports PC/SC
u Supports CT-API (through wrapper on top of PC/SC)
- Ø Battery-Powered:
n Powered by a Lithium-ion battery (rechargeable through PC-linked mode)
- Ø Smart Card Reader:
n Supports ISO7816 CLass A, B and C (5 V, 3V, 1.8 V) cards
n Supports microprocessor cards with T=0 and T=1 protocol
n Supports memory cards
n Supports PPS (Protocol and Parameters Selection)
n Features Short Circuit Protection
- Ø Magnetic Stripe Card Reader:
n Reads up to two tracks of card data (Track 1 / Track 2)
n Capable of bidirectional reading
n Supports AES128 encryption algorithm
n Supports DUKPT Key Management System
n Supports ISO 7810 / 7811 magnetic cards
n Supports Hi-Coercivity and Low-Coercivity magnetic cards
n Supports JIS1 and JIS2
Applications:
- Ø Mobile Banking & Payment
- Ø e-Healthcare
- Ø e-Purse & Loyalty
Tech Specs:
Dimensions |
60.0mm (L) x 45.0mm (W) x 16.0mm (H) |
Interface |
3.5mm 4-pole audio jack USB Full Speed |
Power |
Lithium-ion battery (rechargeable through USB) |
Supply Voltage |
3.2 to 3.7 V DC |
Supply Current |
5 mA |
Operating Temperature |
0-50°C |
Card Swipe Speed |
Max. 10 IPS (inches per second) |
Card Swipe Cycles |
Min. 500,000 |
Contact Card Insertion Cycles |
Min. 100,000 |
Magnetic Stripe Card Support |
ISO7810 / ISO7811 cards Hi-coercivity and Low-coercivity cards JIS1 and JIS2 cards |
Smart Card Interface Support |
ISO7816 Class A, B and C cards Microprocessor cards with T=0 and T=1 protocol Memory cards |
Compliance / Certifications |
EN60950/IEC 60950, ISO7816, CE, FCC, VCCI, PC/SC, CCID, EMV Contact Level 1, RoHS 2, REACH, USB Full Speed Microsoft WHQL: 2000, XP, Vista, 7, 8, 8.1, Server 2003, Server 2008, Server 2008 R2, Server 2012, Server 2012 R2 |
Operating System Support |
Windows CE, 98, ME, 2000, 2003, 2003 R2, XP, Vista, 2008, 7, 8, 8.1 Windows XP x64, 2003 x64, 2003 R2 x64, Vista x64, 2008 x64, 2008 R2 x64, 7 x64, 8 x64, 8.1 x64, 2012 x64, 2012 R2 x64 Mac Linux Android™ 2.0 and above iOS 5.0 and above |
