internal emv smart contact card reader writer -ACR38U-ND
Overview

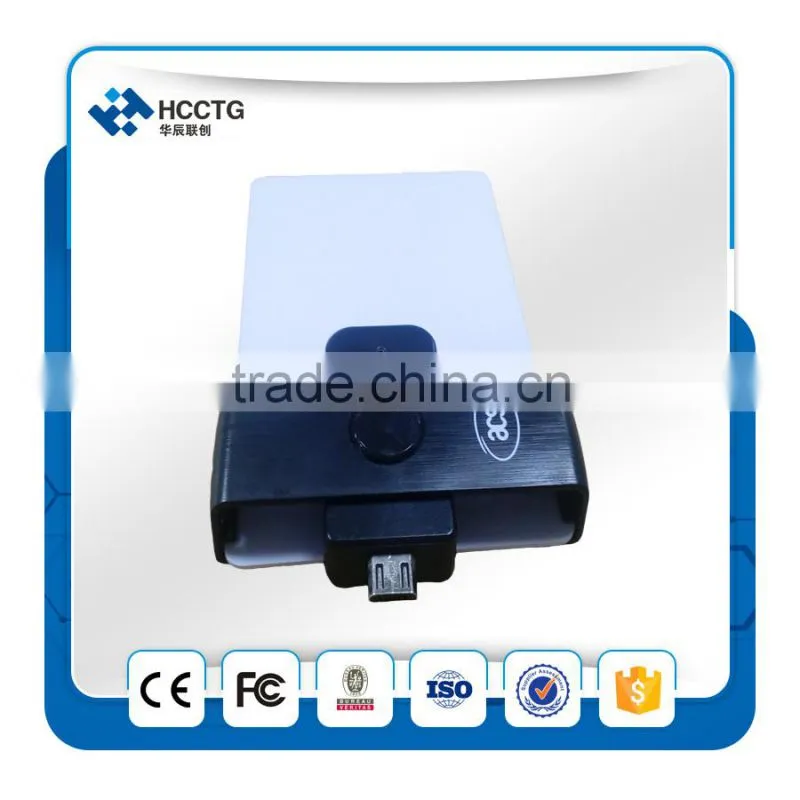

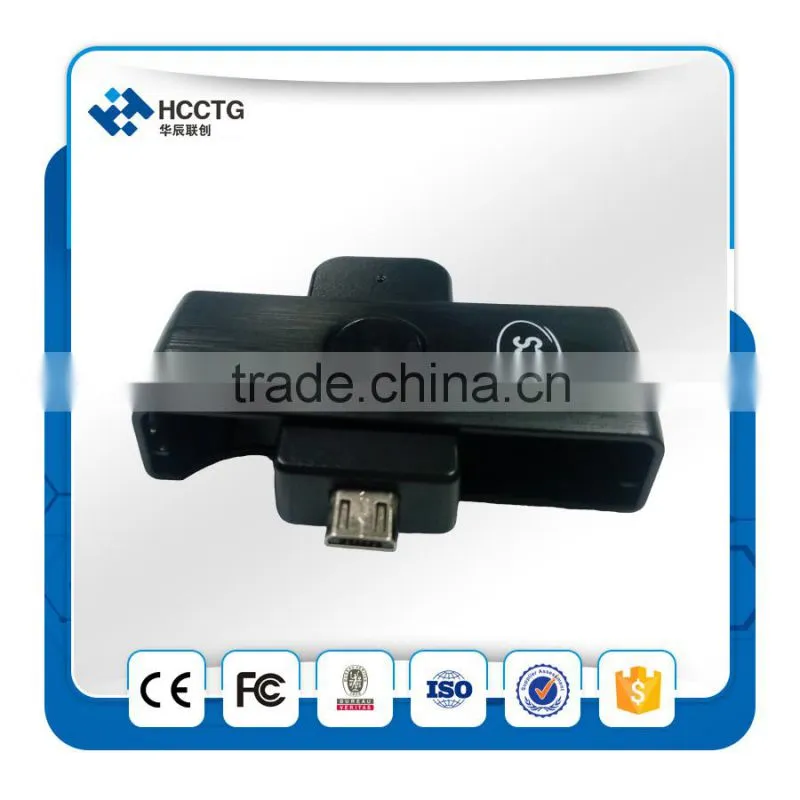

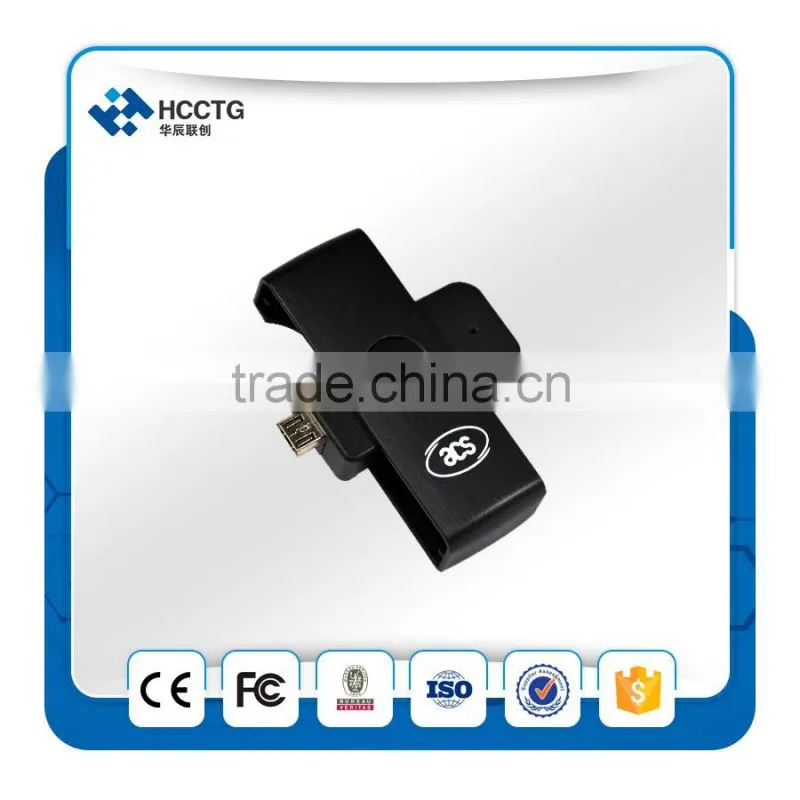

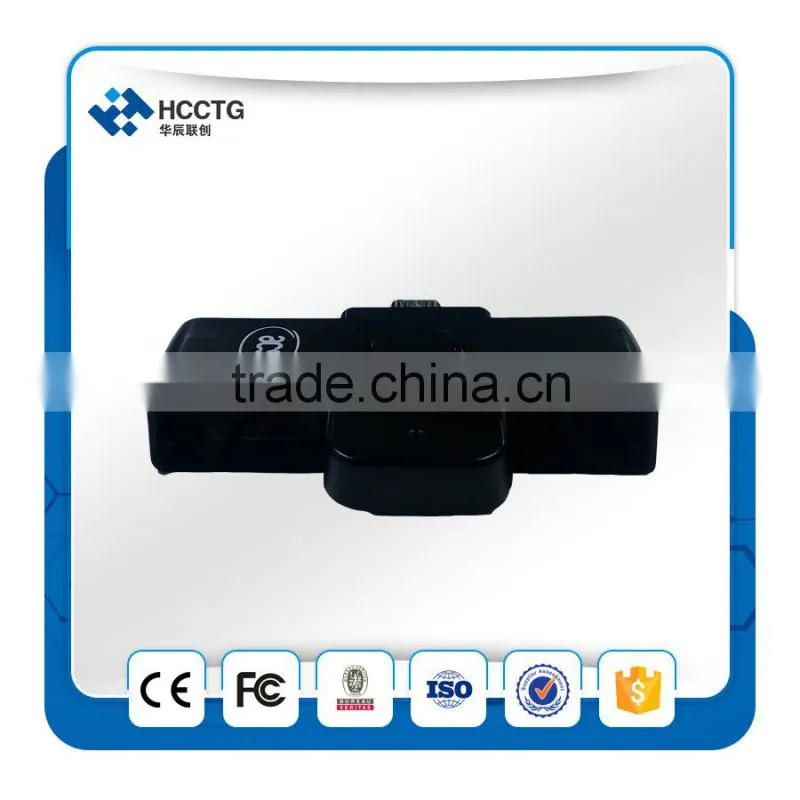

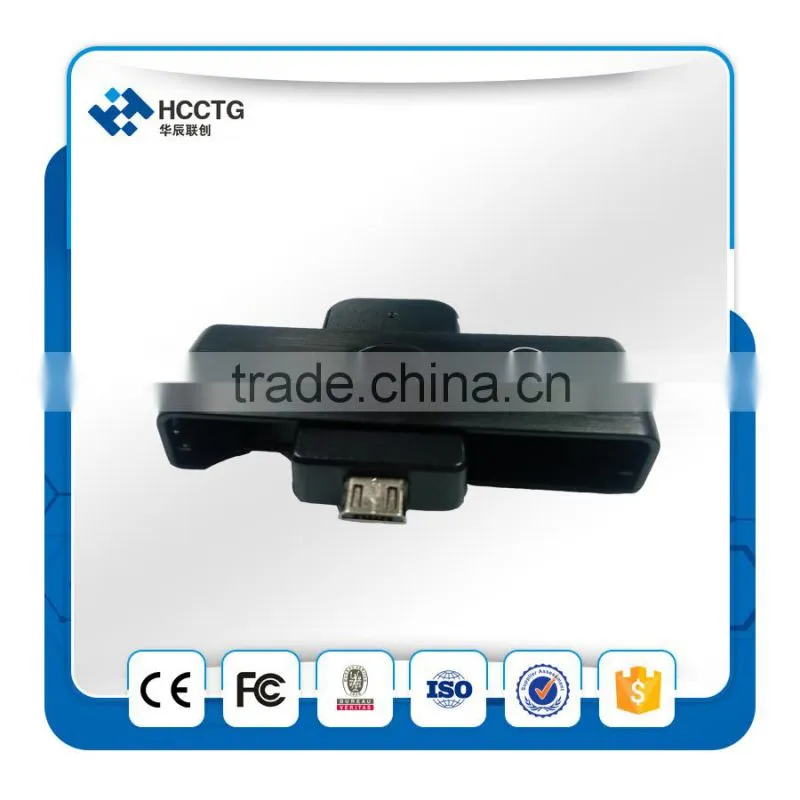

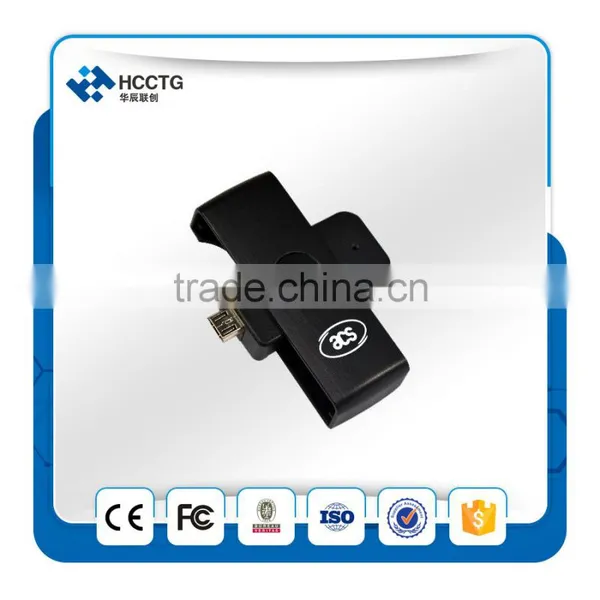

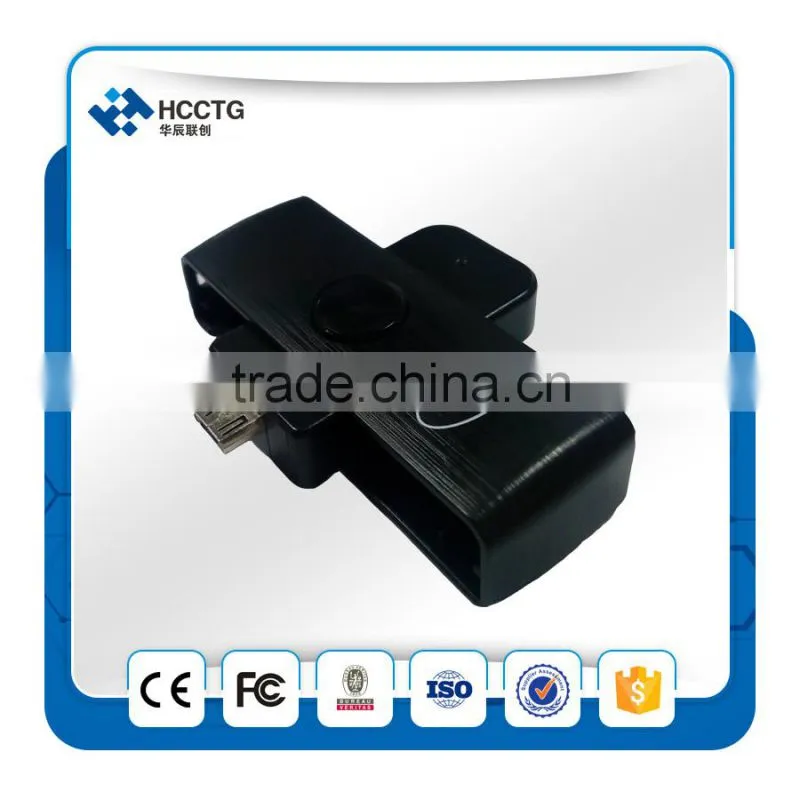

Portable and lightweight, the ACR38U-ND PocketMate II Smart Card Reader is a USB-sized device that transforms into a smart card reader for full-sized contact smart cards with just a single swivel motion.
With its MicroUSB OTG interface, it supports most smartphones and tablets, and can be easily integrated with any mobile device running on the Android™ platform versions 3.1 and above. Additionally, it may be used with Windows, Linux, or Mac operating systems, because of its PC/SC and CCID compliance.
It can run applications that use full-sized contact smart cards and meets security requirements in various fields, including m-Commerce.
ACR38U-ND PocketMate II supports ISO 7816 Classes A, B, and C smart cards (5V, 3V, and 1.8V), microprocessor cards with the T=0, T=1 protocol, and common memory cards. It has a smart card read/write speed of up to 344 Kbps.
This small device proves to be a powerful smart card reader, as it houses the ACR38 core, which has been proven to support highly demanding smart card applications. Built with a modern and functional design, the ACR38U-ND PocketMate II is a smart card reader that is particularly recommended for frequent travelers who need to complete transactions securely on the road.
Feature
- Supports ISO 7816 Class A, B and C (5 V, 3 V, 1.8 V) cards
- Supports microprocessor cards with T=0 or T=1 protocol
-
Supports memory cards:Supports PPS (Protocol and Parameters Selection)
-
o Cards following the I2C bus protocol (free memory cards), including:
- § Atmel: AT24C01 / 02 / 04 / 08 / 16 / 32 / 64 / 128 / 256 / 512 / 1024
- § SGS-Thomson: ST14C02C, ST14C04C
- § Gemplus: GFM1K, GFM2K, GFM4K, GFM8K
- o Cards with intelligent 256 bytes EEPROM and write protect function, including: SLE4432, SLE4442, SLE5532, SLE5542
- o Cards with intelligent 1K bytes EEPROM and write-protect function, including: SLE4418, SLE4428, SLE5518, SLE5528
- o Cards with '104' type of EEPROM non-reloadable token counter cards, including: SLE4406, SLE4436, SLE5536, SLE6636
- o Cards with secure memory IC with password and authentication, including: AT88SC153, AT88SC1608
- o Cards with Intelligent 416-Bit EEPROM with internal PIN check, including: SLE4404
- o Cards with Security Logic with Application Zone, including: AT88SC101, AT88SC102, AT88SC1003
-
o Cards following the I2C bus protocol (free memory cards), including:
- Features Short Circuit Protection
-
Application Programming Interface:
- o Supports PC/SC
- o Supports CT-API (through wrapper on top of PC/SC)
Applications
- Mobile Banking & Payment
- e-Healthcare
- e-Purse & Loyalty
Tech Specs
Dimensions |
58.0 mm (L) x 20.0 mm (W) x 13.7 mm (H) |
Interface |
MicroUSB (OTG) Full Speed |
Supply Voltage |
Regulated 5V DC |
Supply Current |
Max. 50mA |
Operating Temperature |
0-50°C |
CLK Frequency |
4 MHz |
Smart Card Interface Support |
|
Compliance / Certifications |
|
Operating System Support |
|
