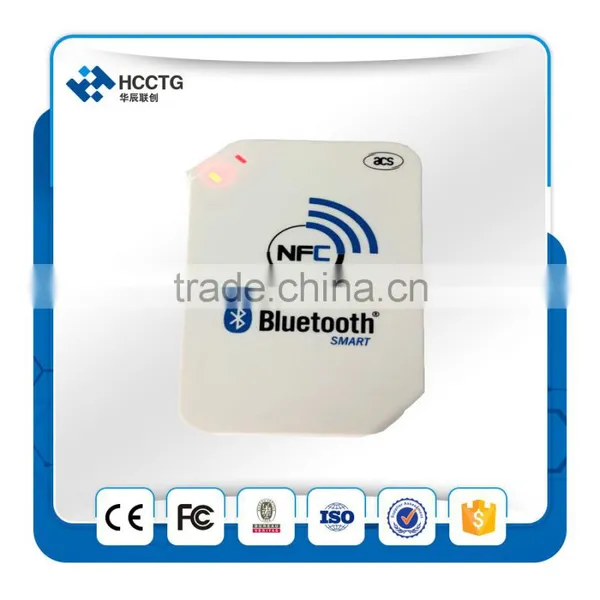

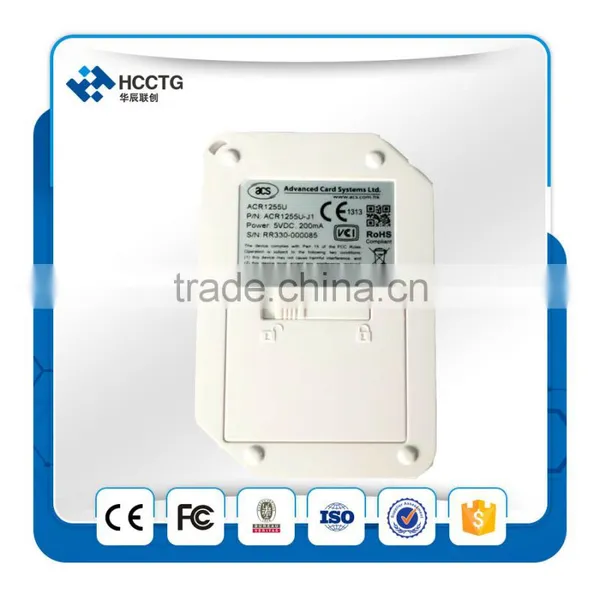

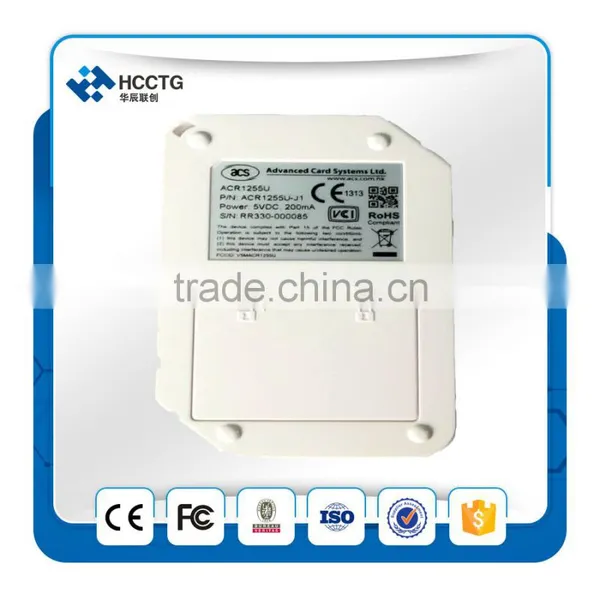

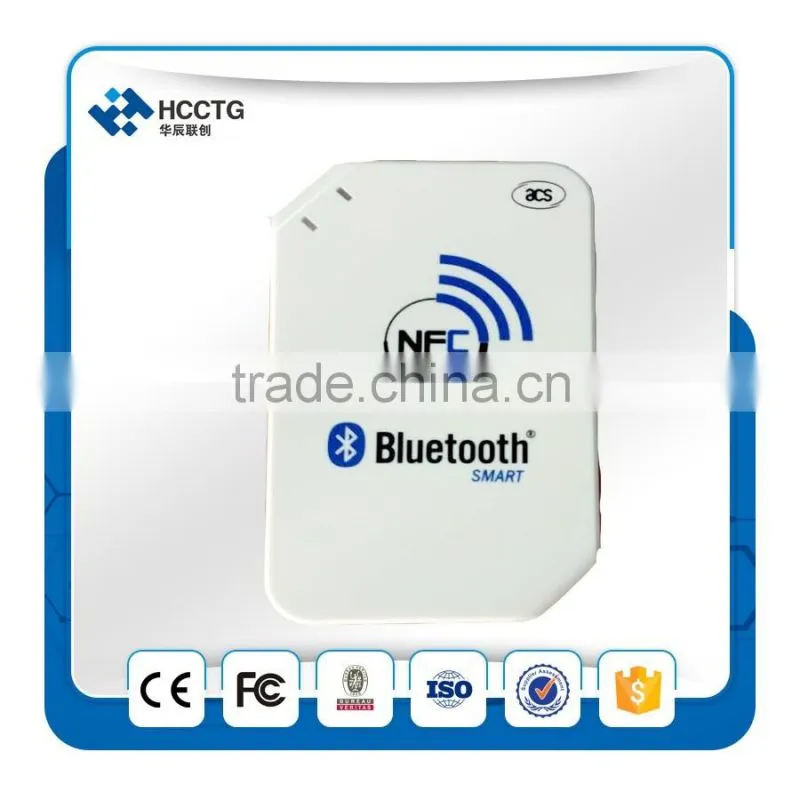

13.56mhz nfc bluetooth/biometric fingerprint card reader writer software-ACR1255U
Introduction
The NFC Bluetooth Reader ACR1255U-J1 is compliant to ISO-14443 Parts 1-4, ISO 18092 and supporting contactless card, , FeliCa cards, NFC tags etc. The reader supports Bluetooth Standard 4.0, “single-mode” operation. It is full-speed USB 2.0 and compatible to different OS, e.g. iOS, Android and Windows platform. ACR1255U-J1 provides Li-ion battery with 320mAh forpower supply. It also has two LEDs and buzzer to show the state of operation. The reader will use the "Li-ion hanging square casing".
Features
- Ø Support contactless smart card:
ISO14443 Parts 1-4.
ISO18092 (NFCIP-1) Compliant.
Classic, 1K,4K, Plus and DESFire.
FeliCa Card.
NFC Tag Types 1,2,3,4.
- Ø Support 2 LEDS for smart card and wireless transmission.
- Ø Support Bluetooth 4.0 protocol for data transmission(single-mode operation).
- Ø Support User-controllable Buzzer.
- Ø Switch for Bluetooth/OFF/PC-linked modes.
- Ø USB 2.0 full speed (12 Mbps).
- Ø Li-ion rechargeable battery ( for portable usage).
- Ø Mini USB port.
- Ø CCID protocol.
- Ø PC/SC compliant.
- Ø OS Platform support:
WHQL from Windows 2000, XP and up.
Win CE 5.0 and up.
Mac 10.5 and up.
Linux .
Android 3.1 and above .
- Ø Compliance to Standards and Certifications:CE,FCC,VCCI,RoHS,BQB.
- Ø Compliance to CSCR API Standardization .
Typical Applications
- Ø Cashless payment system
Technical Specification Un
Universal Serial Bus interface | |
Type |
USB full speed, four lines: +5V, GND, D+ and D- |
Power source |
From USB |
Speed |
12 Mbps |
Power supply | |
Supply voltage |
Regulated 5V DC or Battery 3.7V DC |
Supply current |
< 200mA (without smart card) |
Bluetooth interface | |
Type |
Bluetooth low energy 4.0 single-mode Co |
Contactless smart card interface | |
Standard |
ISO 14443 A & B Parts 1-4, ISO18092 |
Protocol |
ISO14443 T=CL for ISO14443-4 compliant cards and T=CL Emulation ISO 18092 FelCa and NFC tag |
Smart card read / write speed |
106 kbps, 212 kbps, 424 kbps and 848 kbps |
Operating Frequency for Contactless Cards Access | |
Operating Frequency |
13.56 MHz |
Antenna | |
Operating distance |
up to 60mm(Depend on Card Type) |
Case | |
Dimensions |
85.00mm (L) x 54.00mm (W) x 10.00mm (H) |
Color |
White |
Weight |
40g (approx.) O |
Operating Conditions | |
Temperature |
0-50.C |
Humidity |
10 - 90% Stan |
Standards/Certifications |
CE,FCC,VCCI,RoHS,BQB |
OS |
Windows XP,Win CE5.0,Mac 10.5, Linux, Andriod 4.3 O |
OEM |
OEM-Logo possible, customer-specific colors, casing and card connector |
