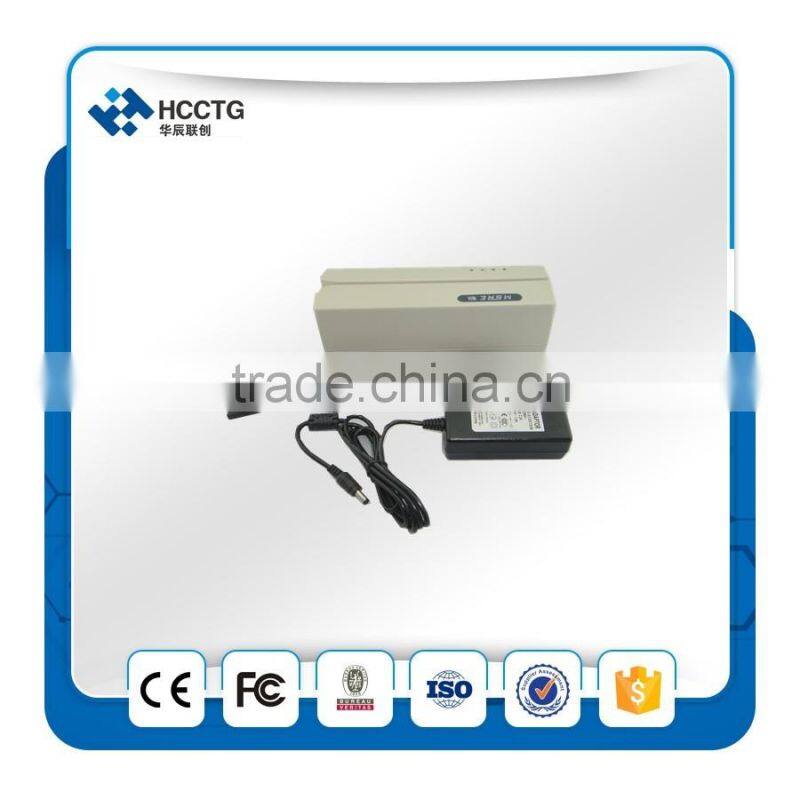

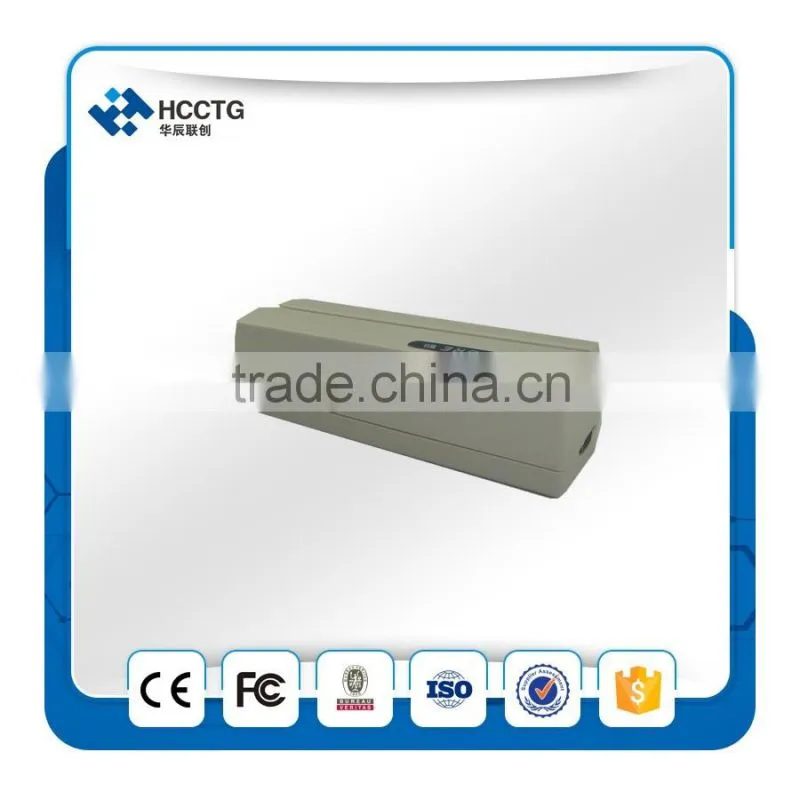

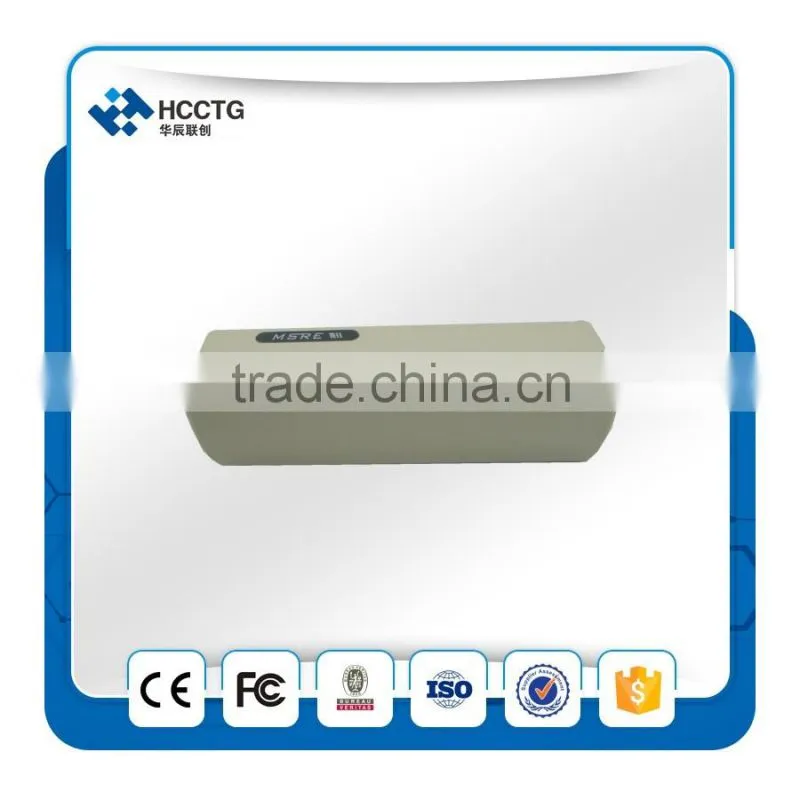

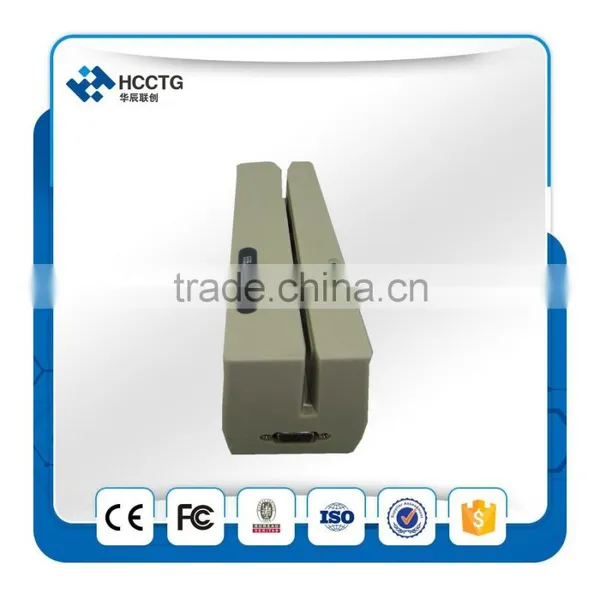

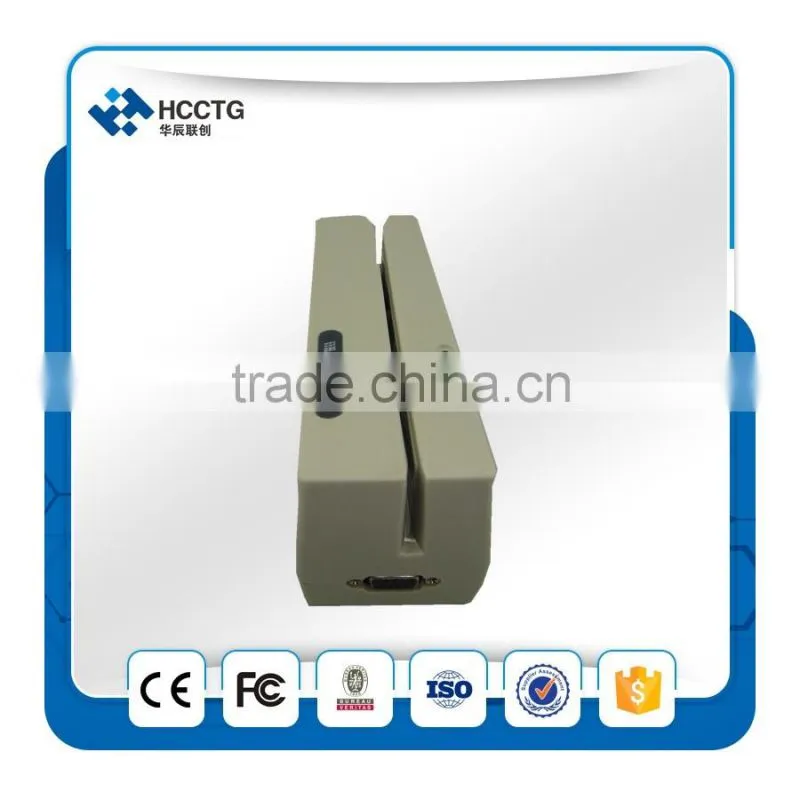

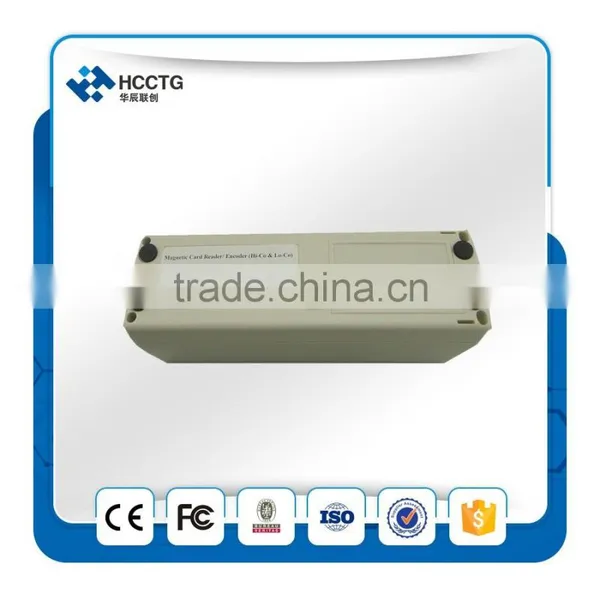

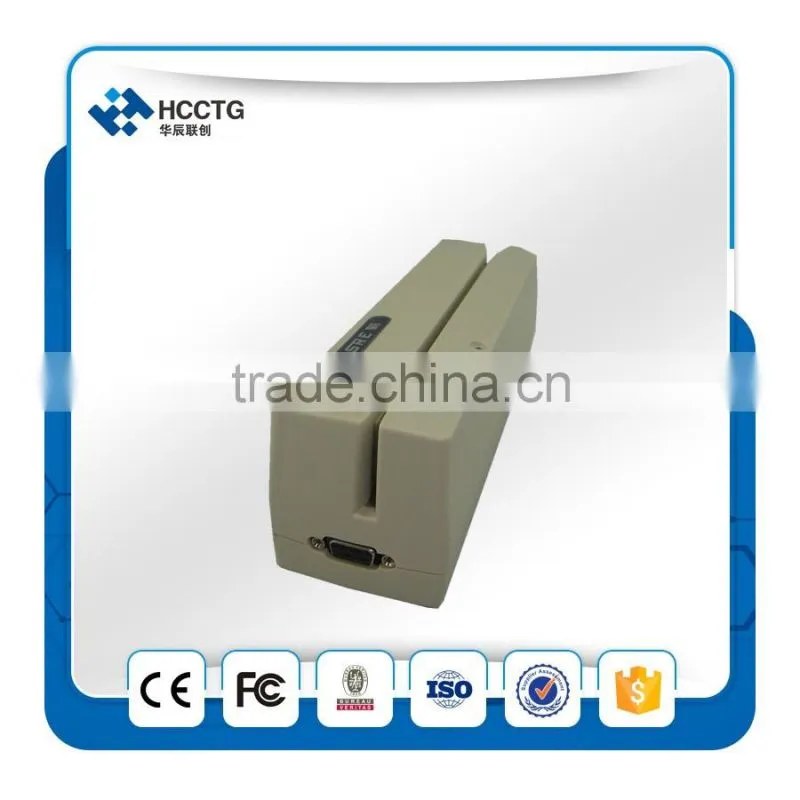

cheap!Magnetic Card Reader/Writer (Hi/Lo-Co)-HCC2300
General
HCC2300 Magnetic Stripe Reader/Writer can read / write magnetic cards from low to high coercivity, providing reliable magnetic stripe reading/writing solution for business, retail, security and other related systems.
Feature
Ÿ Compact size
Ÿ manual swipe to read/write data with a single pass
Ÿ Read/ write magnetic stripe card in both ISO & IBM format
Ÿ Read / write magnetic cards of Hi/Lo Co 300 -2,750Oe
Ÿ Read/ write up to triple tracks (track 2&3 or track 1&2&3)
Ÿ LED & beeper indication for power on/read/write operations
Ÿ Well designed software/hardware and imported key components ensure the whole excellent performance
Ÿ Module structure technology applied to ensure high efficiency and reliability
Specification
Card standards |
IBM, ISO, DIN, ANSI |
Manual feeding speed |
20~100mm/sec |
Writing density |
1st track 210 BPI (max 76 characters) |
2nd track 75 BPI/210 BPI (max 36/104 characters) | |
3rd track 210 BPI (max 104 characters) | |
Interface |
RS232, 2400/4800/9600 bps at option |
Reliability |
MTBF > 20000H, MTTR < 30 MIN |
Magnetic head lifetime |
Min. 500,000 swipes |
Power supply |
DC+12V by external adaptor |
Operating conditions |
0~40℃ 15%~85% RH non-condensing |
Dimensions (L *W *H) |
210mm *60mm *60mm |
Cable length |
2m |
Weight |
About 1.4Kg |
Housing |
Plastic PC, Ivory color |
Model Description
2300x1-x2x3
Type |
X1 |
Interface |
X2X3 |
Magnetic Tracks |
|
2300 (MSRE, With Hi-Co and Lo-Co) |
R |
RS232 Series port |
44 |
1&2 tracks |
U |
USB |
55 |
2&3 tracks |
|
|
|
66 |
1&2&3 tracks |
|
|
|
|
|
|
|
|
|
|
For example
HCC2300 R 66 – MSRE (Hi-Co & Lo-Co), with RS232 series interface, triple tracks (1/2/3)
