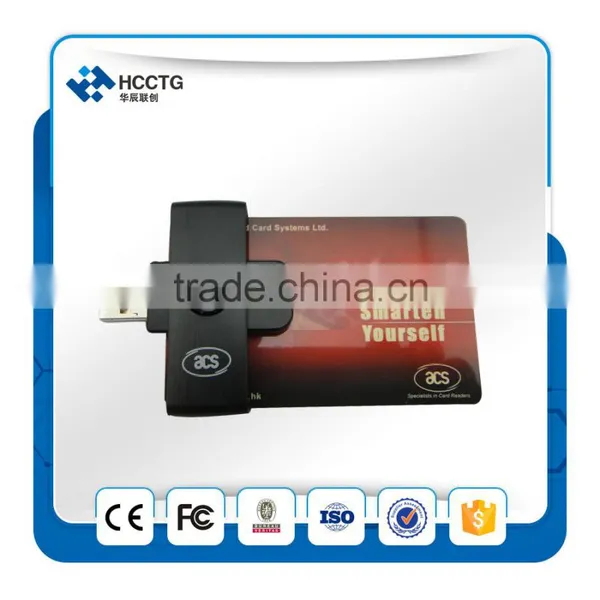

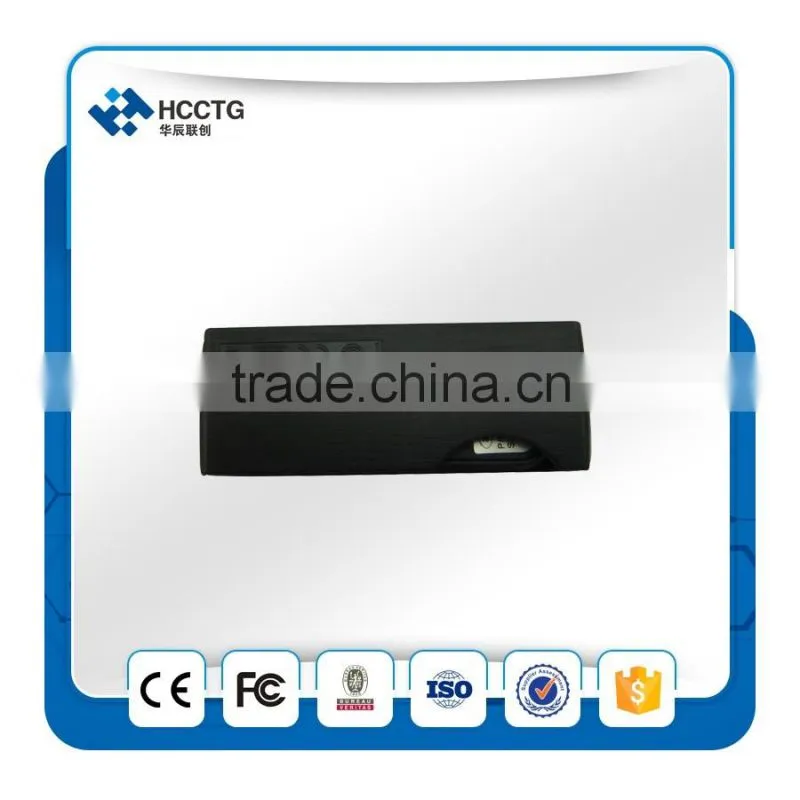

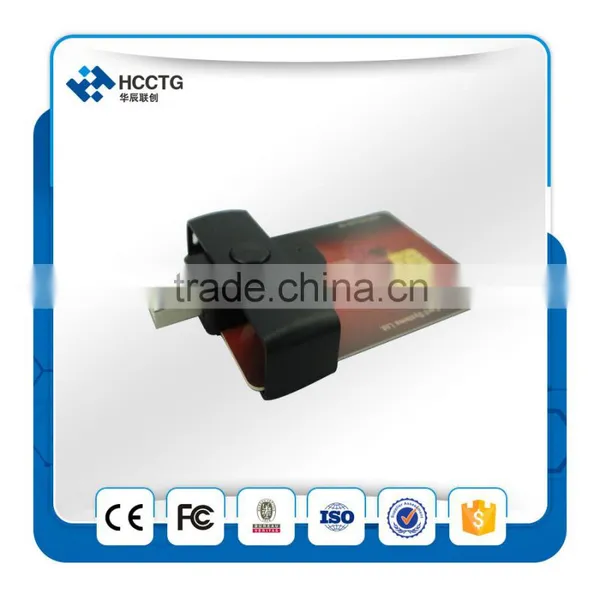

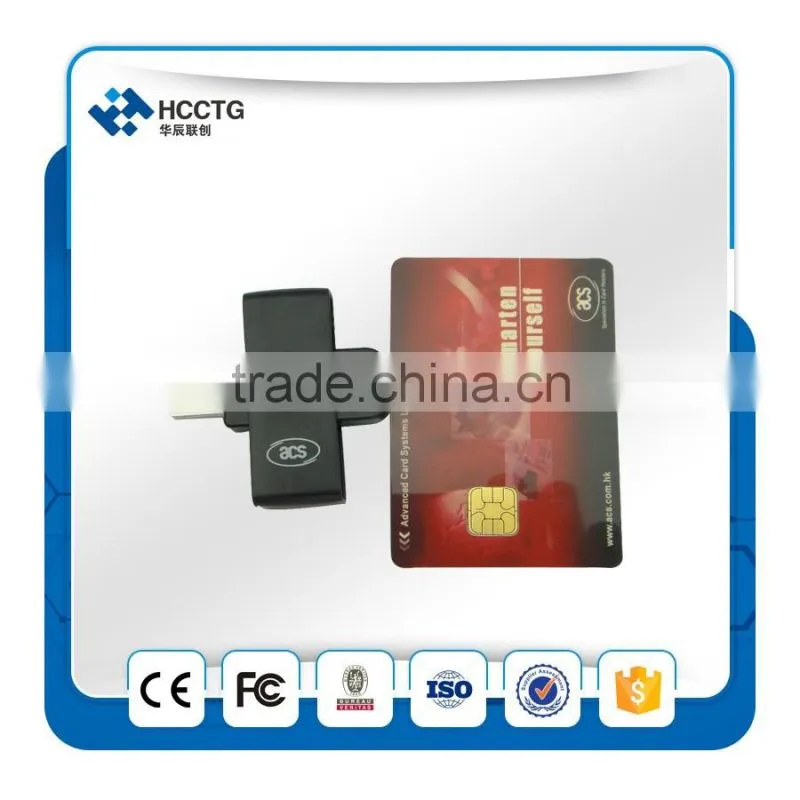

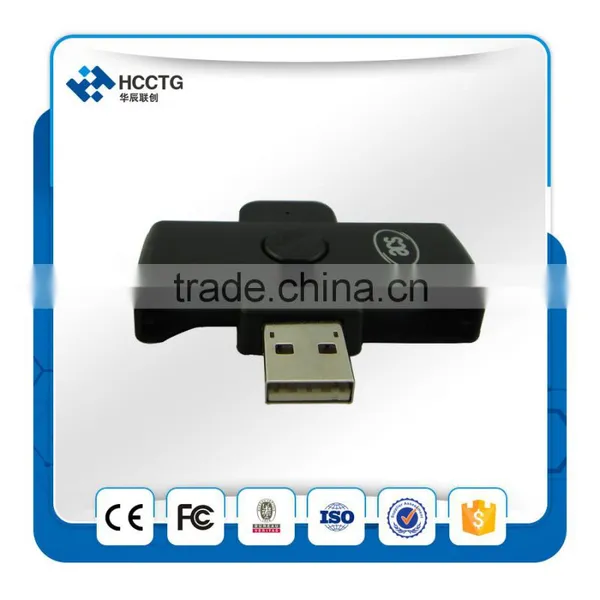

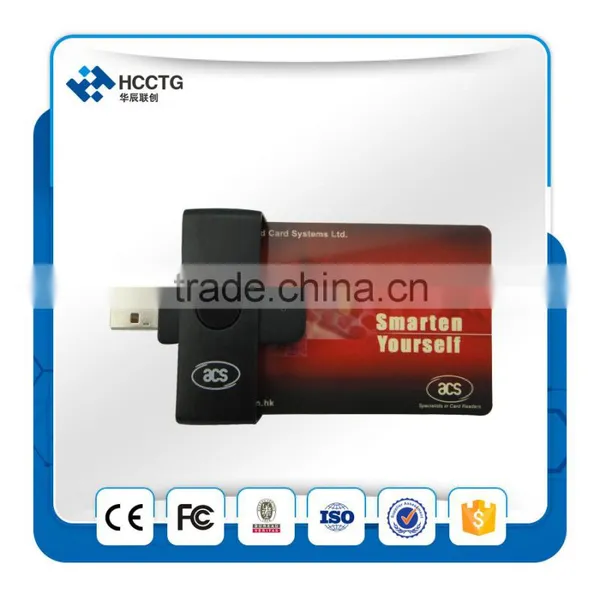

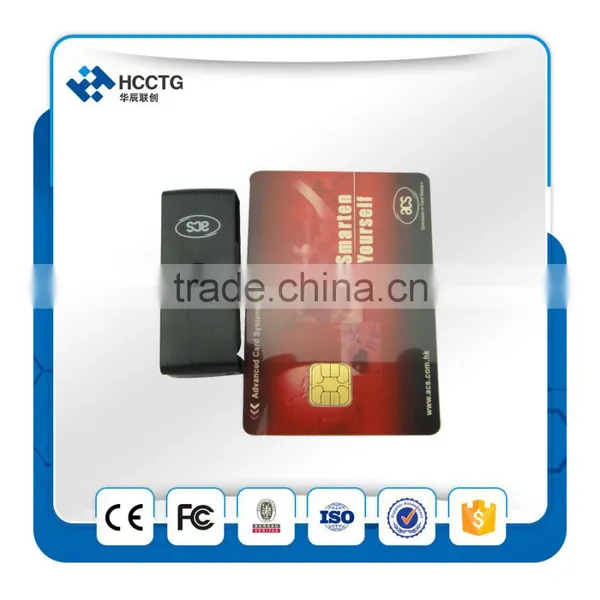

USB Full Speed Interface to PC Smart Card Reader for Access Control System--ACR38U-I1
US$ 9 - 13
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HCC long range rfid/emv reader and writer
Model Number:
ACR38U-I1 long range rfid/emv reader and writer
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Hongkong Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Outdoor Data Collection and Processing for EFT Mobile Data Terminal With Pos Printer--S1000US$ 1 - 1MOQ: 1 Unit -
Multil Ayer Key Time-lapse Key 101 Keys Programmable POS Keyboard --KB101BUS$ 59 - 65MOQ: 1 Piece
-
Supports ISO 18092 Tags (NFC Tags) SMART/NFC Swipe Card Reader-ACR31US$ 17 - 22MOQ: 1 Unit
-
Stable and Reliable Function for Fingerprint Attendance Machine-TX628US$ 100 - 110MOQ: 1 Set
-
Mobile Police System for 58MM Mobile Thermal Printer-- HCC320MUS$ 115 - 135MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
HCC long range rfid/emv reader and writer
Model Number
ACR38U-I1 long range rfid/emv reader and writer
USB full speed interface to PC smart card reader for access control system--ACR38U-I1
Feature
- Ø USB full speed interface to PC with simple command structure
- Ø Read and write all microprocessor cards with T=0 or T=1 protocols
- Ø Support SLE 4418/28/32/42 memory cards
- Ø Support most common memory-based smart cards, including I2C bus protocol cards (from 1k bits up to 1024k bits) and secure memory cards (Atmel AT88SC153 and AT88SC1608)
- Ø Support 1.8V, 3V and 5V MCU cards
- Ø Short Circuit Protection
- Ø Certificate of conformance: ISO 7816-1/2/3, PC/SC, CE, FCC, Microsoft WHQL, EMV certified
- Ø ISO7816-1/2/3 compatible smart card interface
- Ø Support PPS (Protocol and Parameters Selection) with 1743 – 307200 bps in reading and writing smart cards
- Ø 768 bytes RAM size and 16K bytes ROM size
- Ø Extra SAM slot is optional
Specification
Universal Serial Bus Interface | |
Type |
USB full speed, four lines: +5V, GND, D+ and D- |
Power source |
From USB |
Speed |
12 Mbps |
Smart Card Interface | |
Standard |
ISO 7816 1/2/3, T=0 and T=1 |
Supply current |
Max. 50mA |
Smart card read / write speed |
1743 – 307200 bps |
Short circuit protection |
+5V / GND on all pins |
The presence of the smart card power supply voltage is indicated through a green LED on the reader | |
CLK frequency |
4 MHz |
Card connector |
Contact mode |
Card insertion cycles |
min. 100,000 |
(Optional) SAM Card Interface | |
Card connector |
Landing |
Location |
Under the removable dark lid |
Physics | |
Dimensions |
97mm (L) x 72mm (B) x 18.5mm (H) |
Color |
White |
Environment | |
Temperature |
0 - 50° C |
Humidity |
40% - 80% |
Standard/Certificate |
EMV Level 1, ISO7816-1/2/3, PC/SC, CE, FCC, Microsoft WHQL ME, 2K, XP |
Operating System |
Windows 98, ME, 2K, XP |
OEM |
Possible OEM-Logo, customer-specific colors, casing, and card connector |
Package Contents
- Ø ACR38 Smart Card Reader, ACR38T SIM Tracker SIM-sized plug-in Smart Card Reader, ABR08LS Balance Reader
- Ø 5 ACOS2 8Kbyte microprocessor-based smart cards, 5 ACOS2 SIM-size plug-in 8Kbyte microprocessor-based smart cards, 5 SLE 4428 memory-based smart cards, 5 SLE 4442 memory-based smart cards
- Ø Installation and operation CD-ROM (including drivers, source codes, utility tools and demo software)
The SDK CD-ROM includes
- Ø Demo Programs – Casino Application, School Application, ACOS Screen Saver and SIMmate. These demo programs can show the wide range of applications that ACR38 can be used in, e.g. e-purse, physical and logical access control, etc
- Ø Documentation – ACOS2 Reference Manual, ACR38 Memory Card Access, ACR38 OCF, ACR38U Reference Manual, ACR38 Technical Specifications, FAQ, PC/SC Specifications
- Ø Sample Codes – C#, Delphi, VB.NET, Visual Basic, Visual C++
- Ø Tools & Utilities – Card Tool, PC/SC Learning Tool, Quick View, Script Commander PC/SC
- Ø SDK User’s Guide
