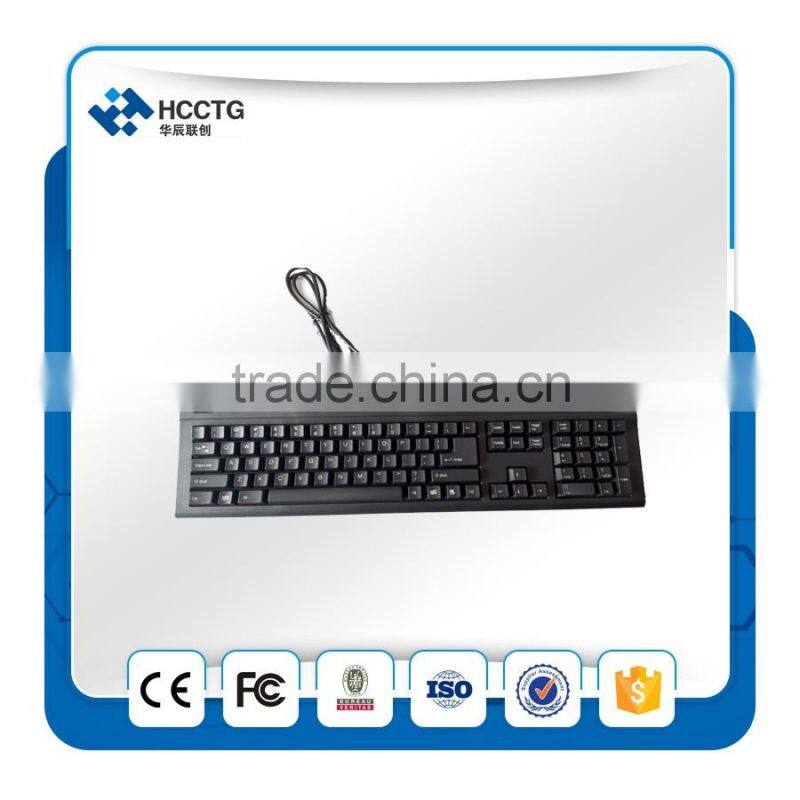

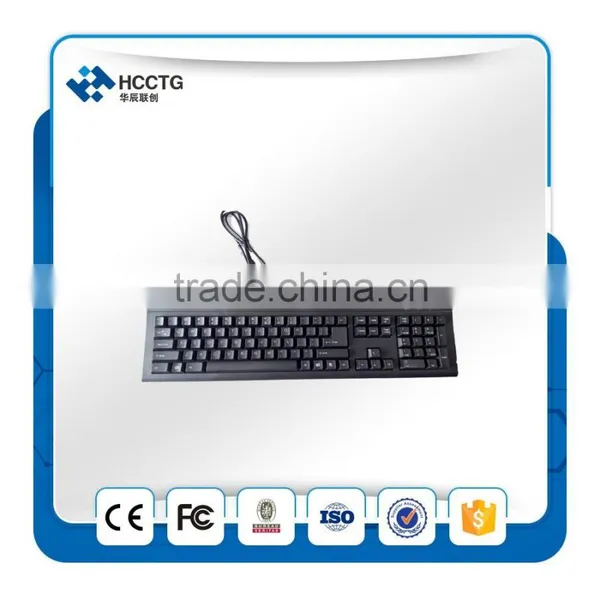

104 Keys Multi-functional Mechanical POS Keyboard

104 keys multi-functional mechanical POS keyboard

Feature

• Ø  With 104 Cherry MX keys based on Gold Crosspoint  technology, and have tactile feeling
• Ø  Two different key actions (soft contact and keyclick)
• Ø  Laser-engraved keycap symbols or high quality UV silk screen printed keycap symbols
• Ø  Operating life cycle of individual keys:

 Soft contact mode: 50 million strokes

 Key click mode: 20 million strokes

• Ø  Damaged keys can be easily replaced and hence save the replacement cost
• Ø  With internal metal plate for key fixation, the protection against ESD is increased
• Ø  Can be upgraded to programmable version
• Ø  USB, PS/2 interfaces are available

Magnetic Stripe Reader Feature

• Ø  Comply with ISO 7812, IBM standards, American Driving License
• Ø  Support multi-country code settings
• Ø  Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence
• Ø  Track 1: 210BPI with max 76 characters
• Ø  Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters
• Ø  Track 3: 210BPI with max 107 characters
• Ø  Card swipe speed: 10 to 100 cm/s
• Ø  500,000 swipe cycles
• Ø  Available Configuration
• Ø  Dual Track: Track 1 & 2 or Track 2 & 3
• Ø  Three Track: Track 1, 2 & 3

Smart card Reader Feature

• Ø  T=1, T=0 protocol support; Memory card support through SCM MCARD API
• Ø  Communication speed up to 344,105 bps (PPS, FI parameter)
• Ø  Frequency up to 12 MHz (PPS, DI parameter)
• Ø  Support ISO 7816 Class A and AB smart card
• Ø  Sliding contact connector; Certified for 200,000 insertions
• Ø  Support PC/SC, CT-API (thru wrapper on top of PC/SC); OCF upon request
• Ø  Full speed USB (12Mbps); Bus powered device; CCID compliant

Dimension

470(L) * 190(H) * 45(W) mm

Model

150x1-x2x3x4
