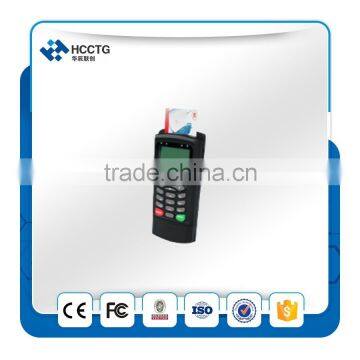

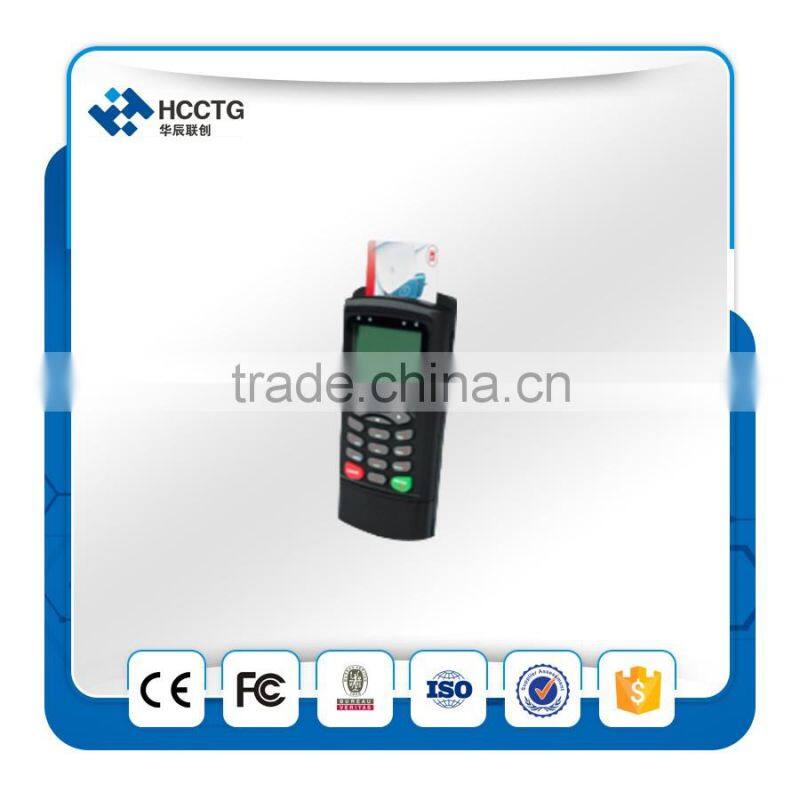

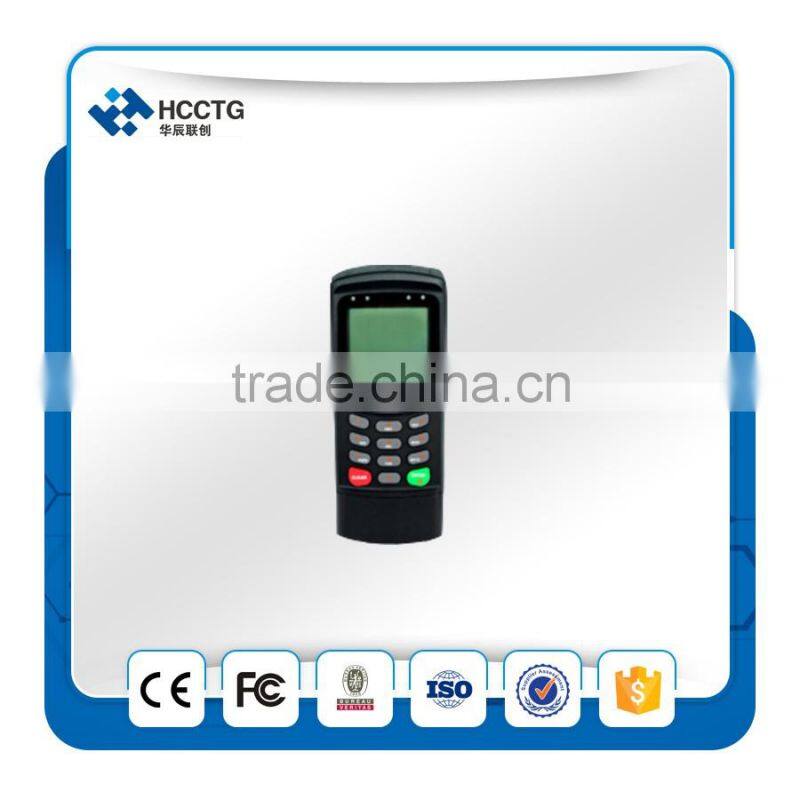

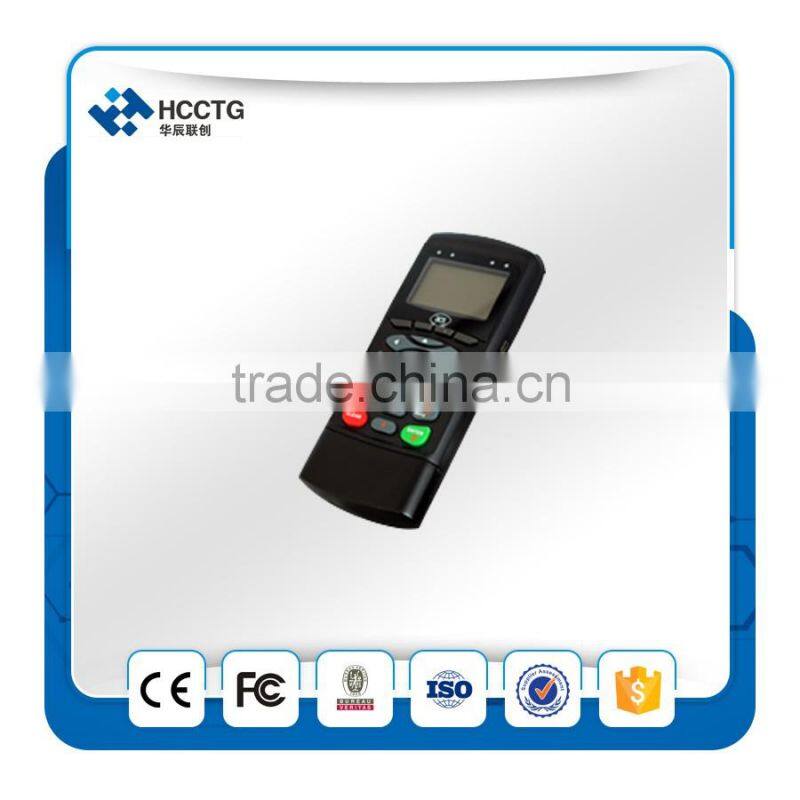

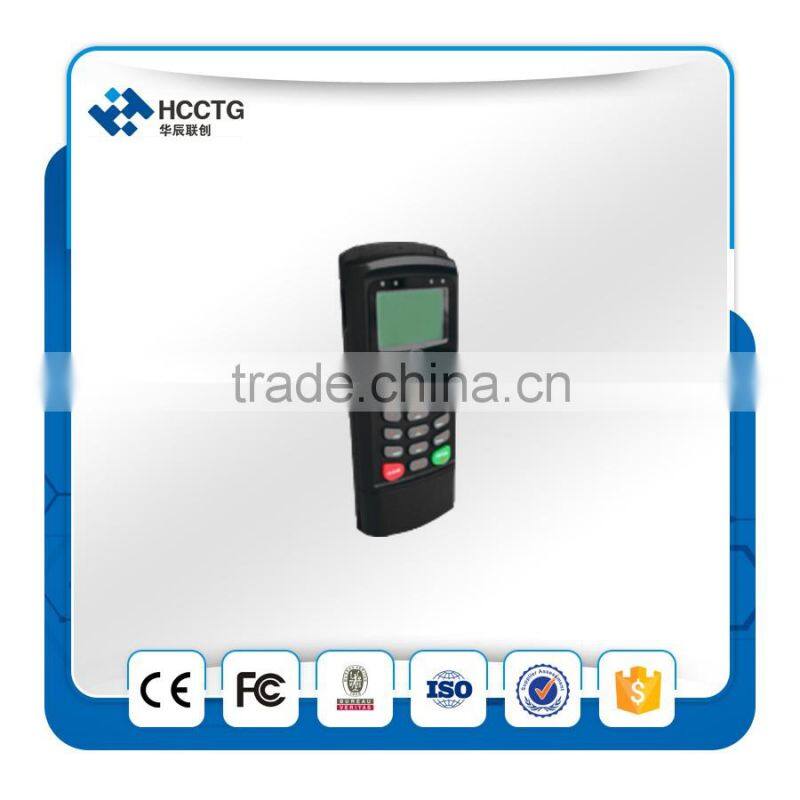

Acs Handheld Data Collector for Inventory and Hotel Lock With Smart Card Reader -ACR89

US$ 105 - 118 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ACS

Model Number:

acs handheld data collector for inventory and hotel lock-ACR89

Shenzhen HCC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong Zhuhai Zhongshan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ACS

Model Number acs handheld data collector for inventory and hotel lock-ACR89

acs handheld data collector for inventory and hotel lock with smart card reader -ACR89

Features

Ø 32-Bit RISC Processor running Embedded FreeRTOS
Ø Portable Handheld Device
Ø Long Battery Life for All Day Use
Ø User Programmable by C Language
Ø Operations Modes:
Ø PC-Linked: Smart Card Application Resides in PC (i.e. Application Accessed via USB cable)
Ø Standalone: Smart Card Application Residing inside the Device
Ø Smart Card Interface Available:
Ø 2 Full-Size Contact Card Slots
Ø 3 SAM Card Slots
Ø Contact smart Card Support:
Ø ISO 7816 MCU Cards (Class A, B, C)
Ø Memory Cards
Ø Interface Available:
Ø USB
Ø Serial - RS232 (Upon Request)
Ø Built Peripherals
Ø Easy-to-Read, High Resolution Backlit LCD
Ø Highly Durable Chemical Resistant 20-Button Keypad
Ø 4 LED Status Indicators
Ø Monotone Buzzer
Ø Tamper Detection Switch to Protect Against Unauthorized Intrusion
Ø Real-Time Clock (RTC) with Independent Backup Battery
Ø User Programmable Memory for Standalone Program
Ø Firmware Upgradeable
Ø Support Secure PIN Entry (SPE)
Ø Supports PPS (Protocol And Parameters Selection) with 115,200 – 206,451 bps In Reading and Writing Smart Cards
Ø (Optional) Contactless Version
Ø (Upon Request) Detachable Portable Thermal Printer

Specification

Dimensions		181mm (L) x 77mm (W) x 30.5mm (H)
Weight		235g
Interface	USB full speed
Power	PC-linked mode: automatically switch to USB bus power, always ON. Standalone mode: automatically switch to rechargeable battery, soft ON/OFF switch
Power Consumption	without contactless: Less than 40mA (excluding card and backlight) with contactless : Less than 60mA (excluding card and backlight)
Backup Battery	Independent rechargeable backup battery (1 x ML1220) for RTC
Supply Voltage	3.7 Vdc
Supply Current	< 60mA (without backlight and smart card)
Operating Temperature	0-50
CLK Frequency	4.8 MHz
Smart Card Interface Support	Contact Interface: ISO 7816 Class A, B and C (5V, 3V and 1.8 V) Contactless Interface (Optional): ISO 14443 Type A & B Mifare Felica 4 types of NFC (ISO/IEC 18092) tags
Compliance/Certifications	PC/SC, CCID, CE, FCC, RoHS Compliant, USB Full Speed Microsoft ® WHQL: 2000, XP, Vista, 7
Operating System Support	Windows 2000, XP, Vista, 7, Server 2003, Server 2008 Linux Mac
