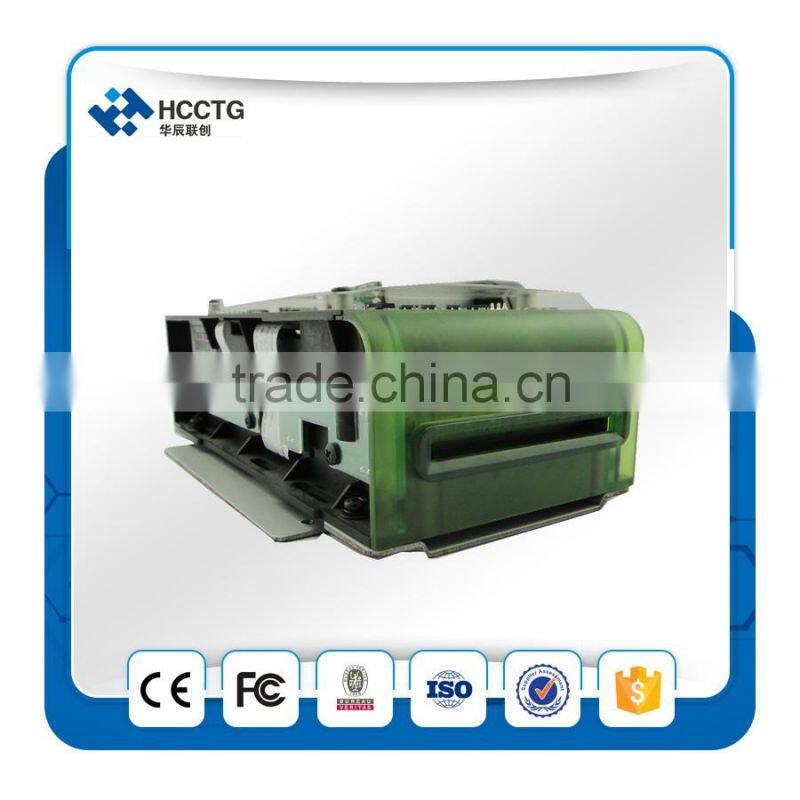

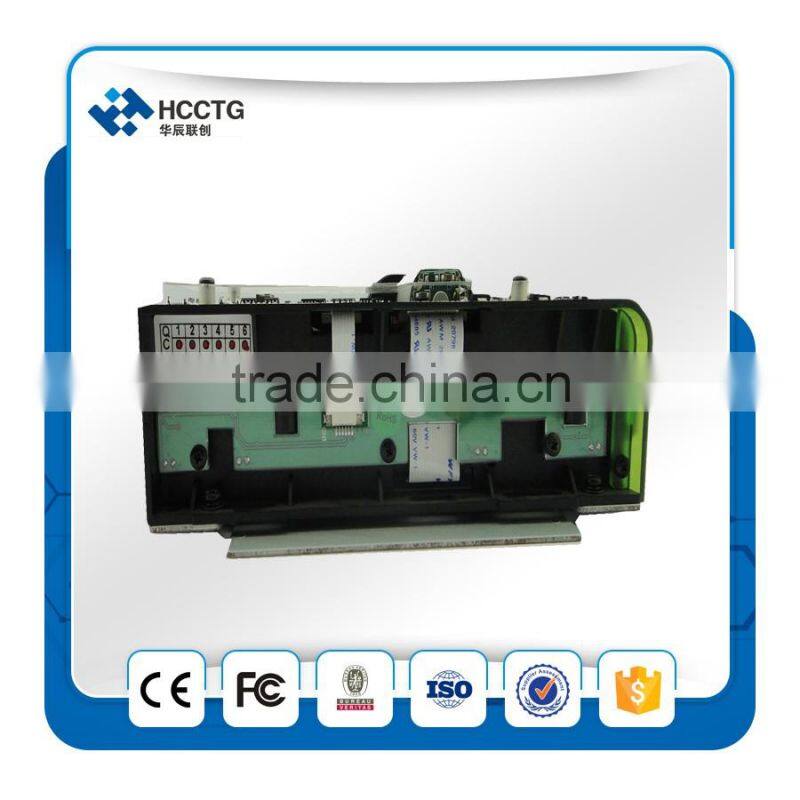

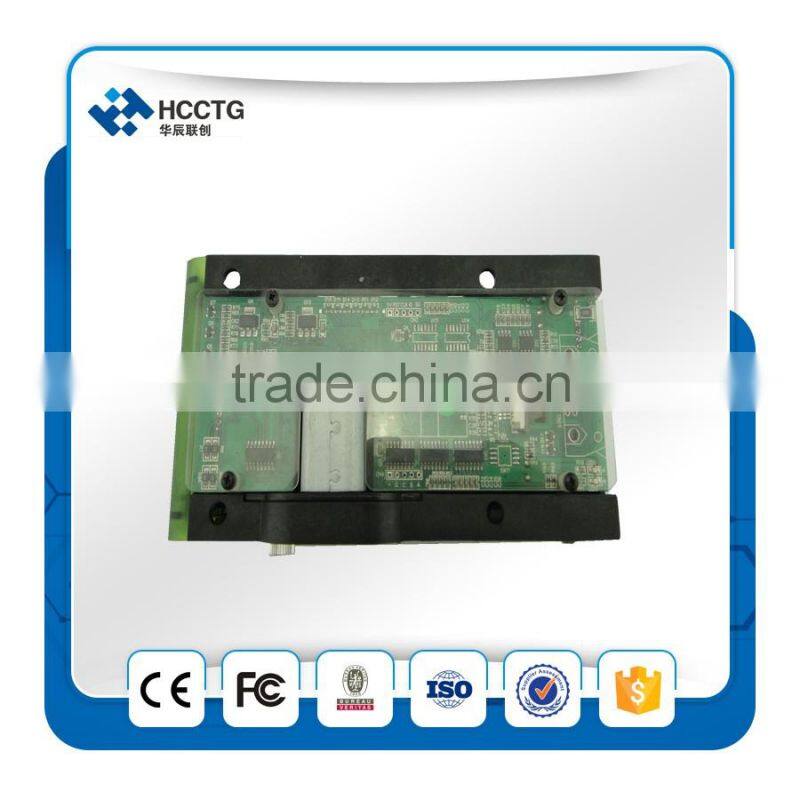

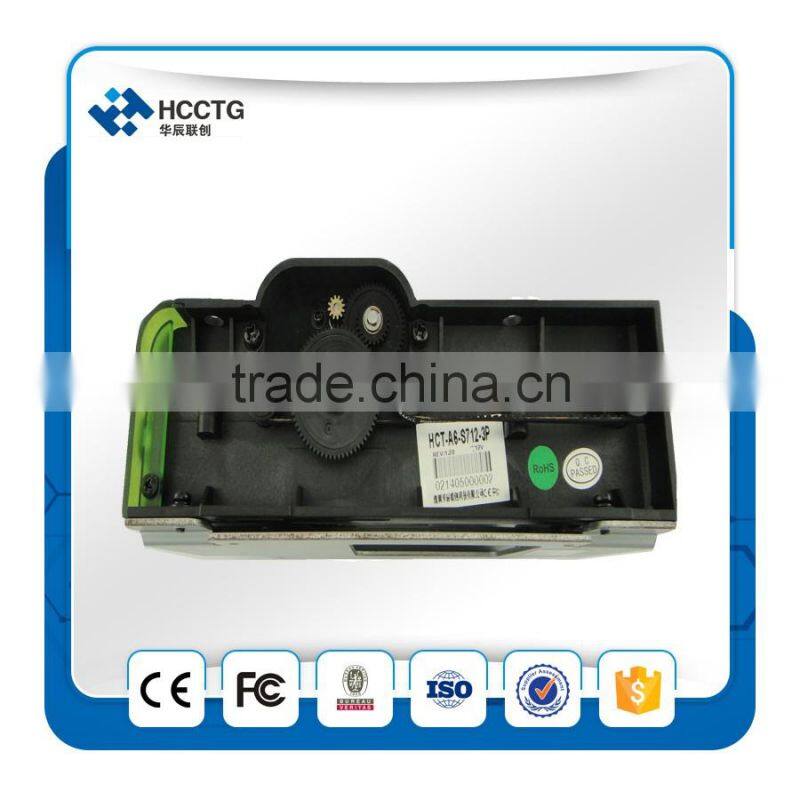

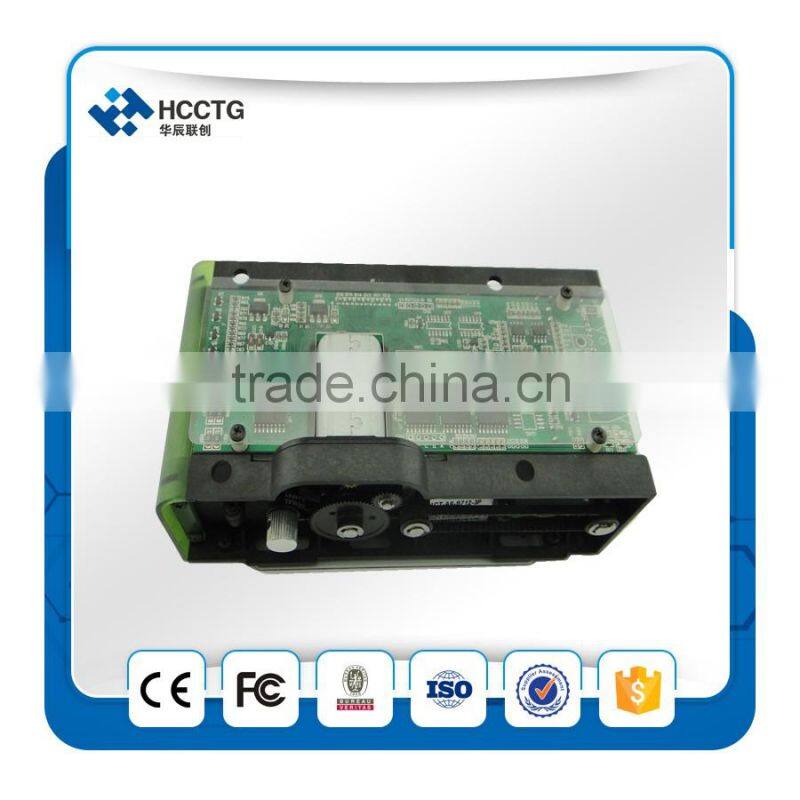

Kiosk motor motorized card reader writer -HCT-A6
General
HCT-A6 series motorized card reader/writer supports RF/IC card R/W and magnetic card R, which is a product created from many years of technology and experience accumulation of HCT and the market demand.
HCT-A6 is designed based on the development concept that integrates multiple functions. Careful material selection, rational structure and stable circuit design make it a highly reliable product, meanwhile, its bezel is designed with a user-friendly LED; all these enable HCT-A6 to better meet the market requirements for motorized card reader/writer.
Feature
- Ø EMV and PBOC certified.
- Ø Supports ISO7810/7811 magnetic card reading only.
- Ø Supports ISO7816-2 contHCT IC card reading/writing.
- Ø Supports ISO14443-A Mifare Type A/B card reading/writing.
- Ø Jitter card-in function: effectively precludes unauthorized card reading.
- Ø Protruding bezel: for anti-theft is available
- Ø Bezel with LED light: provides card insertion indication and/or lighting and prevents the card being left inside.
- Ø Independent sensor design: makes reader maintenance easy.
- Ø Dustproof sensor lens: prevents sensor from dust and/or the other foreign materials.
- Ø Mechanical shutter for protection against dust and/or the other foreign materials in the bezel position: enhances the reliability of the card reader.
- Ø Four-set driving wheels: ensure the card transmission stability and liability and prevent card jam or block.
- Ø One group of driving wheels in front of mag-head: enables automatic re-reading, which increases success rate of card reading.
- Ø Card detecting function: automatically handles abnormal cards (broken card, incomplete card, etc.) and is able to eject card in case of power failure.
- Ø Self-balancing mag-head reading function: provides stable reading and easy maintenance.
- Ø High-performance plastic materials: ensure reading precision and product consistency.
Specification
ELETRICAL |
Power Supply |
DC12V ± 5%,2A |
Quiescent Current |
100mA |
|
Communication Method |
RS232 /USB( optional) |
|
STRUCTURE |
Service Life Magnetic head |
≥ 800,000 passes |
IC contact |
≥ 500,000 passes |
|
Net Weight Approx. |
390g |
|
Package Dimension |
245L x 137W x 93H mm |
|
ENVIRONMENTAL |
Operation Temperature/ Humidity |
0°C to 50°C, 0 to 90% RH without condensation |
Storage Temperature/ Humidity |
-25°C to 80°C, 0 to 90% RH without condensation |
|
PERFORMANCE |
Card Supported |
86L x 55W mm (0.76mm standard card) |
Magnetic Recording Capacity |
Track 1 (IATA): Max. of 79 charHCTers (6 bits + 1 parity) |
|
Track 2 (ABA): Max. of 40 charHCTers (4 bits + 1 parity) | ||
Track 3 (MINTS): Max. of 107 charHCTers (4 bits + 1 parity) | ||
Magnetic Coercivity |
24k~320k A/m (300~4000 Oe)+/-10% |
|
Mifare Type A Operating Frequency |
13.56 MHz
|
|
RF Communication |
Speed 105k bps |
Optional Accessories
- Ø SAM card board (max 4 SAM sockets).
- Ø Switching board for DC/24V to DC/12V.
- Ø Backup power supply (model no.: HCT-S002)
