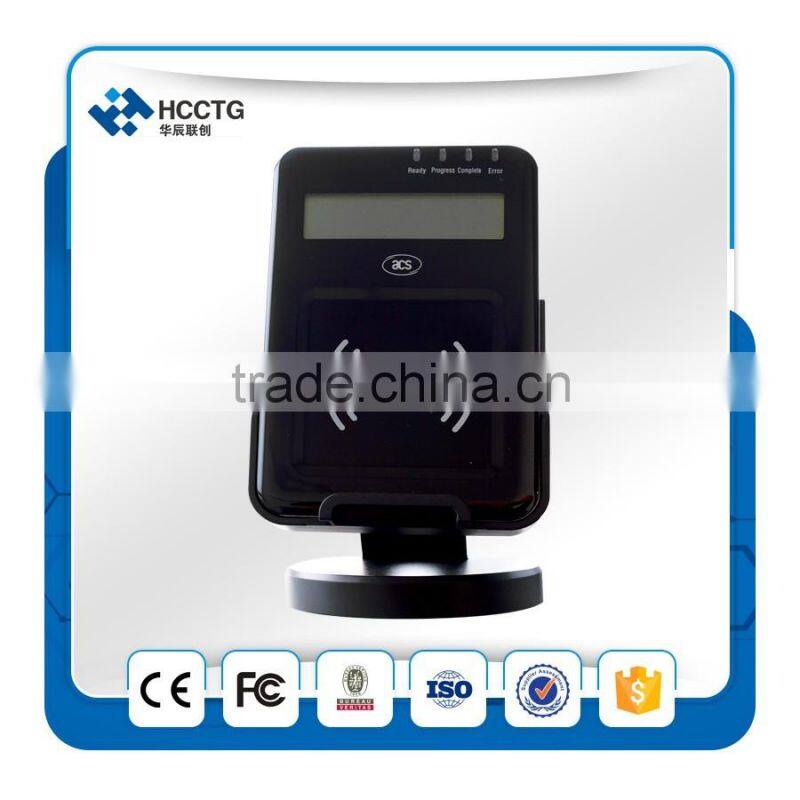

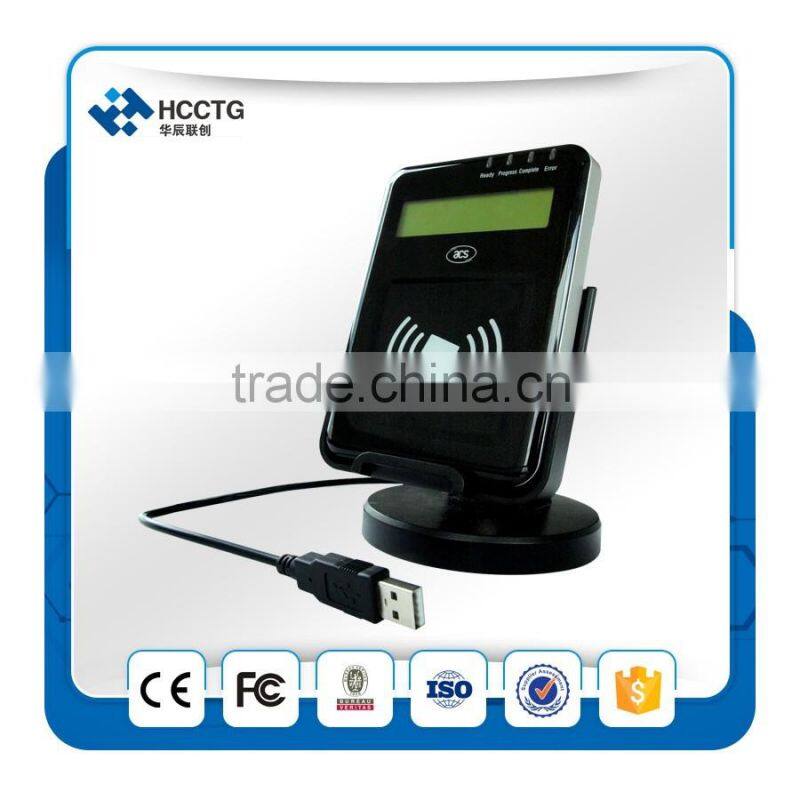

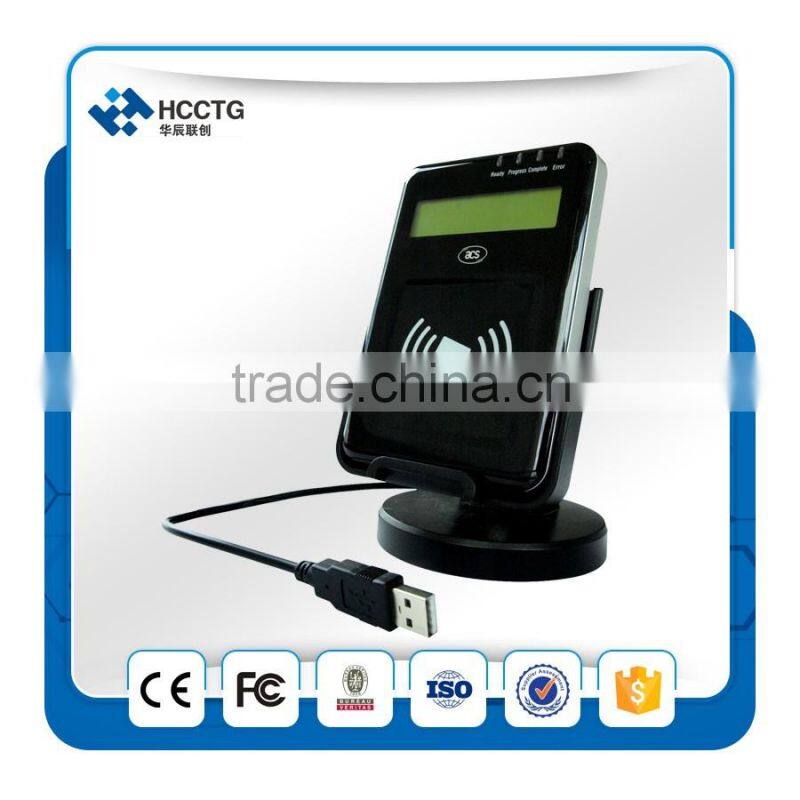

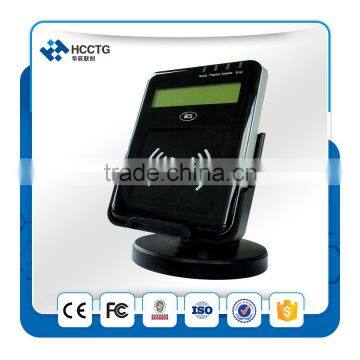

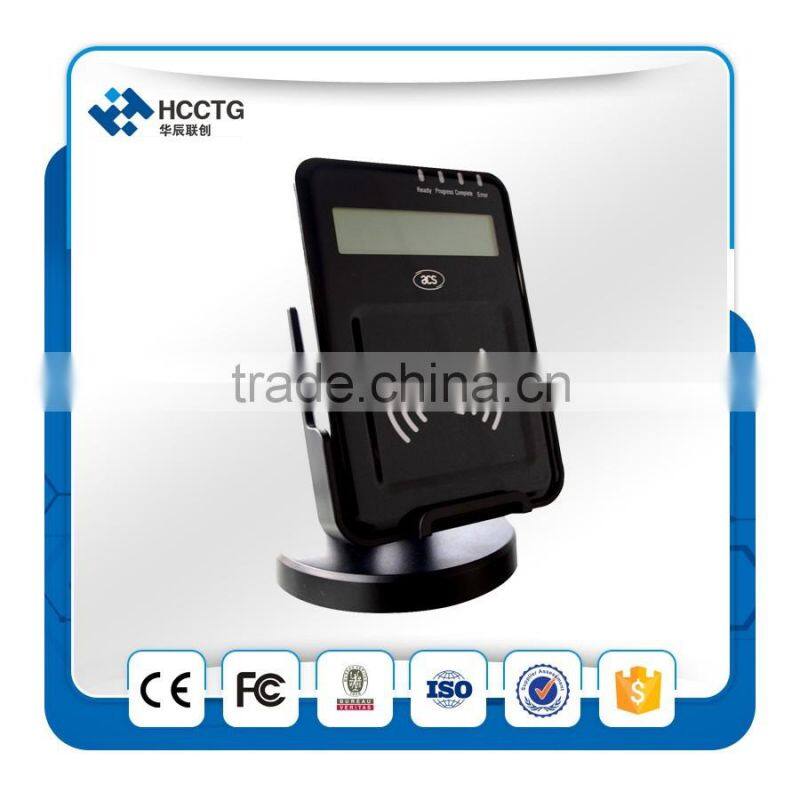

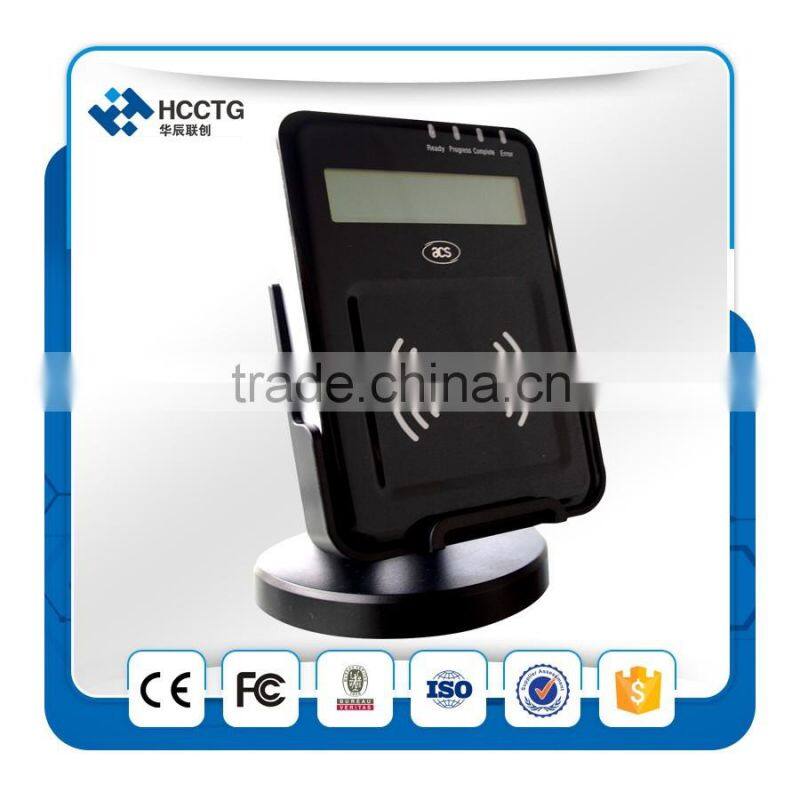

Four user-controllable LEDs USB NFC/Smart card Reader with LCD- ACR1222L
Overview
ACR1222L is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 standard. ACR1222L can support ISO14443 Type A and B cards, , FeliCa and all 4 types of NFC tags.
With its PC/SC compliance, ACR1222L ensures easy upgrade of PC/SC smart card applications to improve user interaction. It is equipped with 4 LEDs, a buzzer and an LCD that provide users with clear indications of the reader or application status. The 2-line graphic LCD has multiple language support, including Chinese, English, Japanese and some European languages. It allows interactive operation such as scrolling up and down, left and right, etc. Moreover its three built-in SAM slots provide enhanced security during contactless operations.
Typical applications of ACR1222L include e-payment, loyalty programs and access control.
Features
- Ø USB 2.0 Full Speed Interface
- Ø CCID Compliance
- Ø Smart Card Reader:
Ÿ Read/Write speed of up to 424 kbps
Ÿ Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
Ÿ Support for ISO 14443 Part 4 Type A and B cards, , FeliCa and all four types of NFC (ISO/IEC 18092) tags
Ÿ Built-in anti-collision feature (only one tag is accessed at any time)
Ÿ Three ISO 7816 compliant SAM slots
- Ø Built-in Peripherals:
Ÿ Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages)
Ÿ Four user-controllable LEDs
Ÿ User-controllable buzzer
- Ø USB Firmware Upgradability
Application
- Ø E-Government
- Ø E-Banking and e-Payment
- Ø E-Healthcare
- Ø Transportation
- Ø Network Security
- Ø Access Control
- Ø Loyalty Program
Specifications
Dimensions |
Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H); |
Weight |
Main Body: 173 g |
Interface |
USB 2.0 Full Speed |
Operating Distance |
Up to 50 mm (depends on the tag type) |
Supply Voltage |
Regulated 5V DC |
Supply Current |
300mA (maximum); 50mA (standby); 150mA (normal) |
Operating Temperature |
0-50 |
Operating Frequency |
13.56 MHz |
Smart Card Interface Support |
|
Compliance / Certifications |
|
Operating System Support |
|
