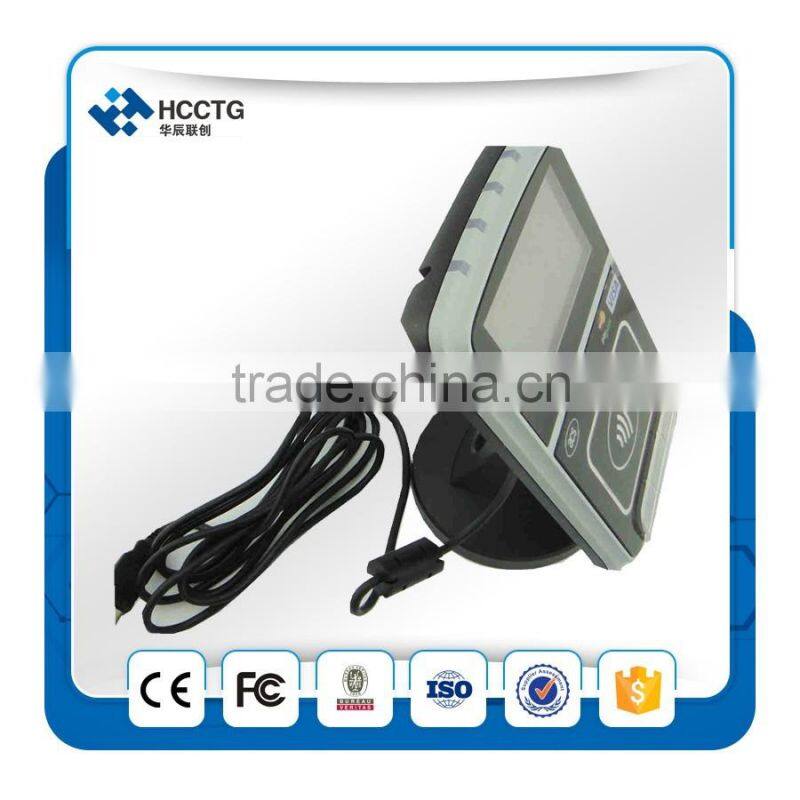

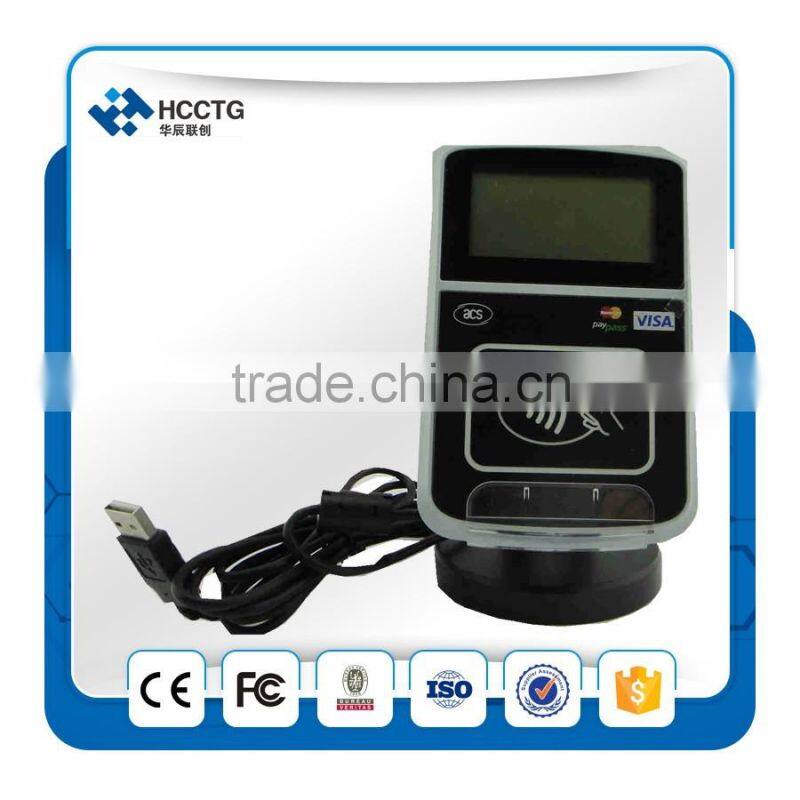

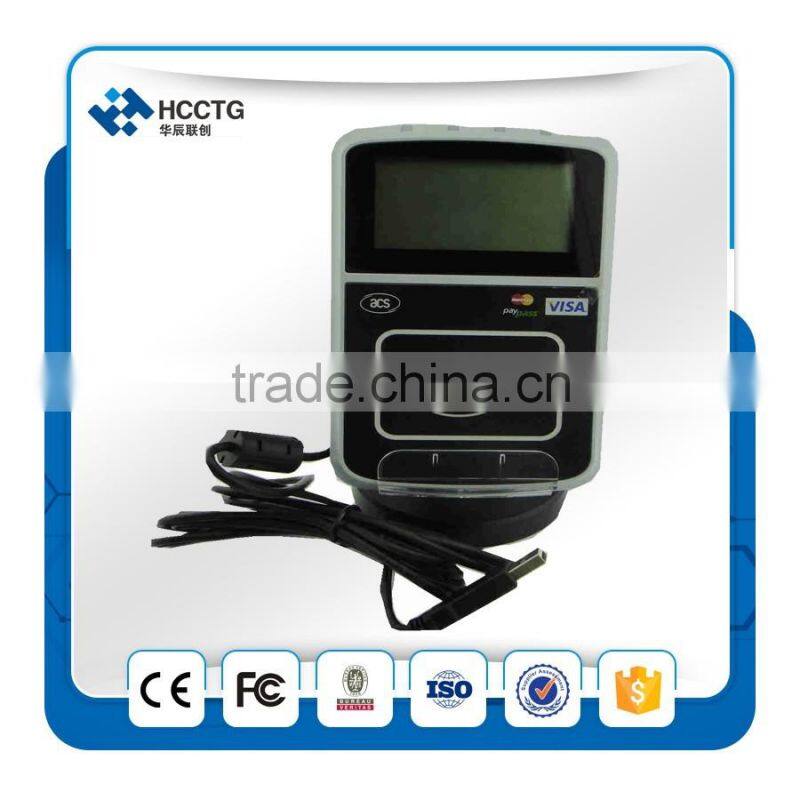

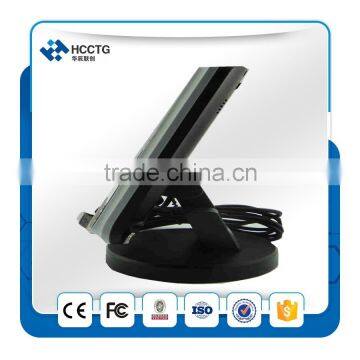

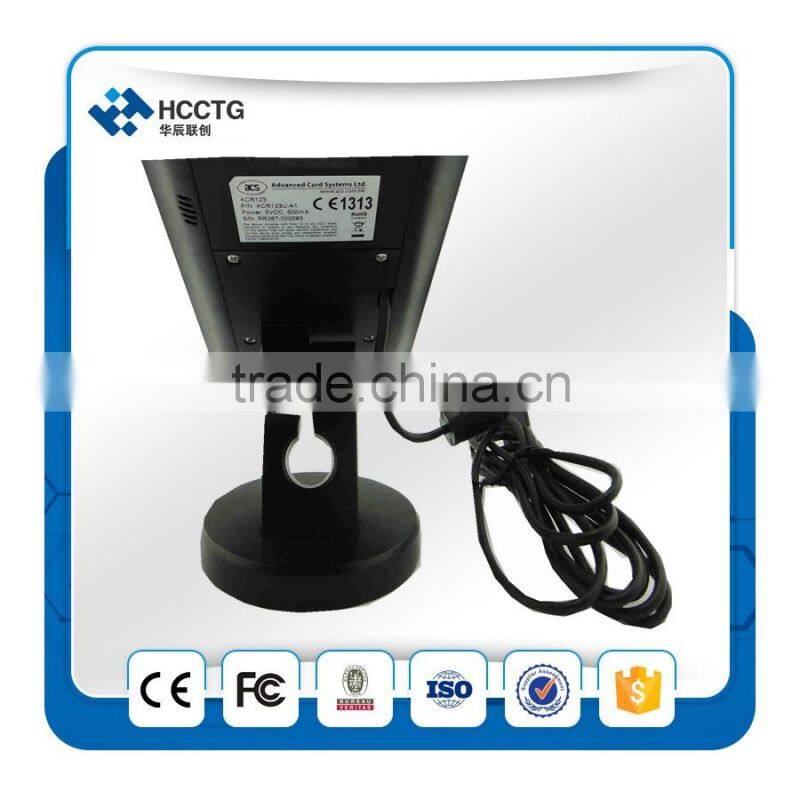

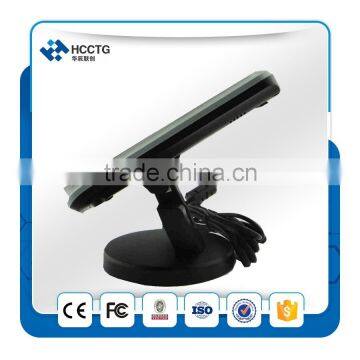

Cheap!Intelligent Contactless NFC/Smart Card Reader- ACR123

US$ 130 - 150 MOQ: 1 Unit

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

ACS

Model Number:

NFC/Smart card Reader- ACR123

Shenzhen HCC Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hong Kong/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name ACS

Model Number NFC/Smart card Reader- ACR123

cheap!Intelligent Contactless NFC/Smart card Reader- ACR123

Features

Ÿ Read/Write speed of up to 848 kbps

Ÿ Built-in antenna for contactless card access, with card reading distance of up to 50 mm (depending on tag type)

Ÿ Support for ISO 14443 Part 4 Type A and B cards and Mifare series

Ÿ Built-in anti-collision feature

Ÿ Three ISO 7816 compliant SAM slots

Ÿ MasterCard® PayPass™ Mag Stripe and M/Chip

Ÿ Visa payWave® MSD and qVSDC

Ÿ 16 alphanumeric characters x 8 lines Graphical LCD (128 x 64 pixels)

Ÿ Four user-controllable LEDs (Blue, Yellow, Green, and Red)

Ÿ User-controllable tapping region backlight (Red, Green and Blue)

Ÿ User-controllable speaker (Audio tone indication)

Ÿ Micro-SD card slot

Application

Specifications

Dimensions	Main Body: 159.0 mm (L) x 100.0 mm (W) x 21.0 mm (H) With Stand: 177.4 mm (L) x 100.0 mm (W) x 94.5 mm (H)
Weight	Main Body: 281 g With Stand: 506 g
Interface	Serial RS232 Interface with RJ45 connector for data communication, USB for power transmission
Operating Distance	Up to 50 mm (depends on the tag type)
Supply Voltage	Regulated 5V DC
Supply Current	500 mA (max.)
Operating Temperature	0-50°C
Operating Frequency	13.56 MHz
Smart Card Interface Support	ISO 14443 Type A & B Mifare MasterCard® PayPass™ Mag Stripe and M/Chip Visa payWave® MSD and qVSDC
Compliance / Certifications	ISO 14443, CE, FCC, RoHS, REACH, VCCI, KC, EMV Level 1, EMV Level 2, MasterCard® PayPass™, Visa payWave®
