Home > Products > All Products > VL 3 pin cable connector
VL 3 pin cable connector
- 600000 Piece / Pieces per Month
- Ningbo/Shanghai etc
- Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | MWAN | Model Number: | VL |
Type: | Adapter | Application: | Other, home appliance | Gender: | Other, male and female |
Product Description

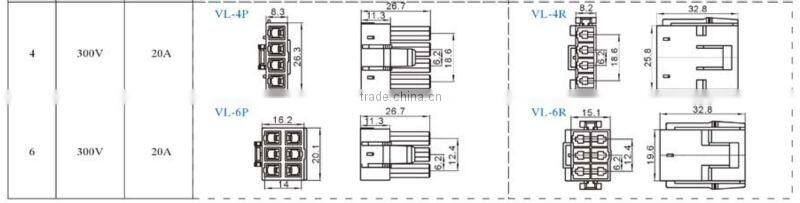

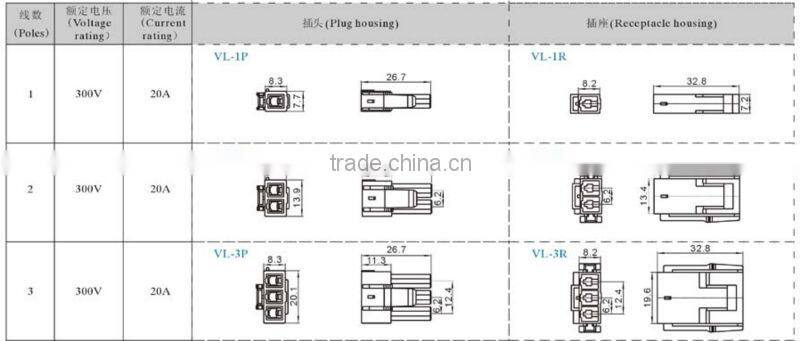

Specifications
1.VL 3 pin cable connector2.8years experience in producing connector
3.ROHS & ISO9001
4.100% tested before deliver
Poles | 1,2,3,4,6 | ||

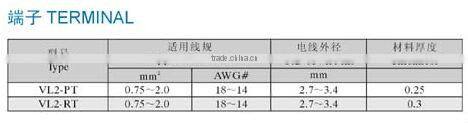

Applicable wires | AWG28#-18# | ||
Applicable PC board thickness | 0.8-2.4mm | ||
Temperature range | -25-85degree | ||
Voltage rating | 300V.Ac/Dc | ||
Current rating | 10A max | ||
Contact resistance | ≤0.01Ω | ||
Insulation resistance | ≥2000MΩ | ||
Withstand voltage | 2000V.Ac/1min | ||
Terminal | Plug housing | UL94V-2(0) | |
Receptacle housing | UL94V-2(0) | ||

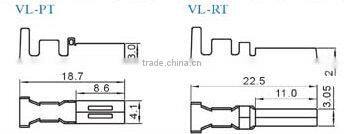

Terminal | Phos.bronze Tin plated |
Our advantage
1.All kinds of products are ROHS,REACH,CE
2.We are glad to make samples according to your drawings and specifications.
3.The connectors could be MOLEX,JST,AMP,KET,YH or others suppliers according client's requirements.
4.Used in the most of home appliances,computer,PCB,Auto,Microwave oven,Washing machine ect.
5.We mainly produce all kinds of Terminal & Housing connector,Wiring Harness,Soft Sleeve ect
6.Available for ODM/OEM order
7.Please contact us so we can offer you the best quality,competitive price and timely delivery
