Electric Driven Base Plate Air Compressor With CE JL2105,compressor

Electric Driven Base Plate Air Compressor With CE JL2105,compressor thumbnail-1
Electric Driven Base Plate Air Compressor With CE JL2105,compressor photo-1
US$ 10 - 1,000 MOQ: 20 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Piston
Configuration:
Stationary
Contact Supplier Request Quote Chat Now
Yancheng Jianlong Mechanoelectron Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Piston
Configuration Stationary
Power Source AC Power
Lubrication Style Lubricated
Mute No
Place of Origin Jiangsu, China
Brand Name AEOLUS
Model Number JLEB-2105
Voltage 380V
Certification CE ISO UL
Warranty 1 year

Product Description

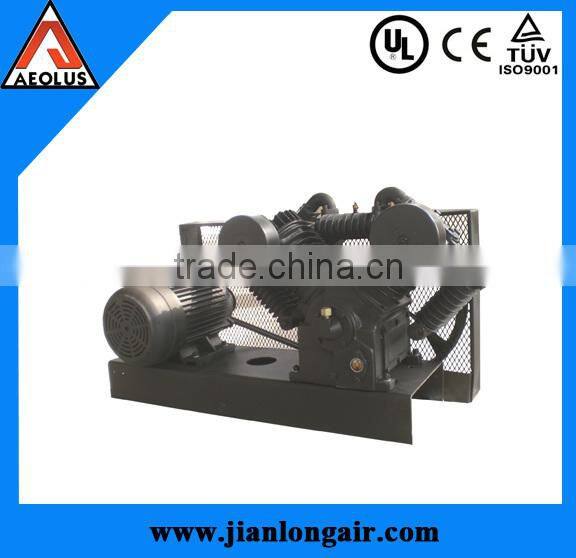

Detail pictures for base plate piston air compressor



 electric driven base plate air compressor with CE JL2105,compressor

  • Our factory produce air compressor and pump professionally with CE certification.
  • We have been in the compressed air industry for over 15 years.
  • The quality of cylinder and crankshaft is excellent and durable.
  • The pump model is JLEB-2105T, there are FOUR cylinders in machine.

 AIR COMPRESSOR PUMP





Model No. Power (HP) Cylinder Bore     (mm) No. of CYL Pressure (psi/bar) Air delivery (L/min,CFM) Stroke (mm) Speed (rpm) Weight (kg) Outside dimension     (mm)
1051 0.75 51*1 1 115/8 36/1.3 38 830 7.6 215*170*255
1065A 1 65*1 1 115/8 80/2.8 38 1000 10.5 240*240*290
1065 1.5 65*1 1 115/8 100/3.5 46 1130 18.5 270*250*340
2051 1.5 51*2 2 115/8 100/3.5 45 840 17 360*300*330
2051A 2 51*2 2 115/8 160/5.7 46 1170 15.6 270*215*390
2065 3 65*2 2 115/8 200/7.1 46 1130 19.5 380*290*350
3065 4 65*3 3 115/8 300/10.6 48 980 28 450*320*380
2080 4 80*2 2 115/8 320/11.3 60 900 35 470*320*400
3080 5.5 80*3 3 115/8 480/17 60 850 43 540*400*450
2090 7.5 90*2 2 115/8 530/18.7 60 1000 35 510*390*440
3090 10 90*3 3 115/8 800/28.3 60 1000 68 550*380*480
1105TC 5.5 105*1+55*1 2 181/12.5 420/14.8 89 730 81 490*445*550
1105TCH 5.5 105*1+55*1 2 181/12.5 420/14.8 89 730 81 490*445*550
2105TC 10 105*2+55*2 4 181/12.5 800/28.3 89 730 120 690*520*570
2105TCH 10 105*2+55*2 4 181/12.5 800/28.3 89 730 120 690*520*570
1155TH 15 155*1+82*1 2 145/10 1600/56.5 116 730 215 660*520*770
2155TH 30 155*2+82*2 4 145/10 3000/106 116 7300 300 930*690*740

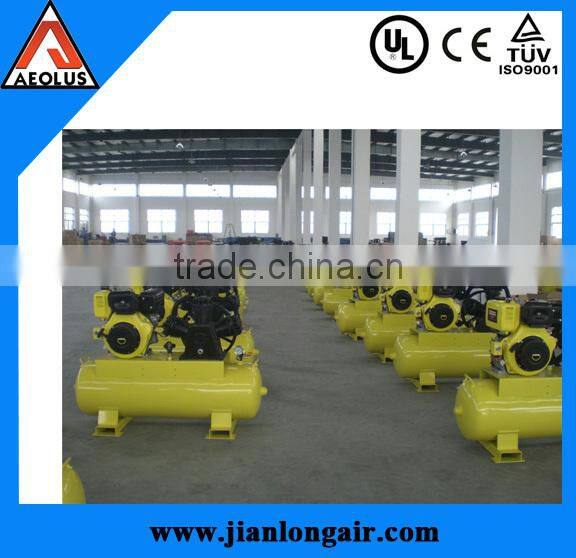

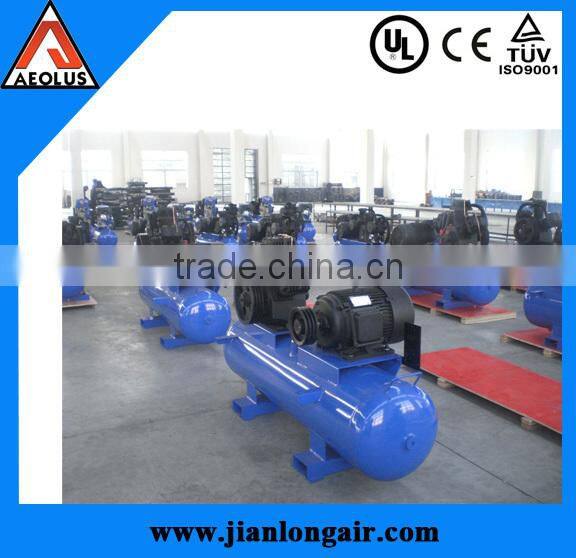

WOKE AREA



The workshope is clean and tidy.



electric driven base plate air compressor with CE JL2105,compressorelectric driven base plate air compressor with CE JL2105,compressor





Packing & Shipping



The Package is sturdy and beautiful.



electric driven base plate air compressor with CE JL2105,compressorelectric driven base plate air compressor with CE JL2105,compressor

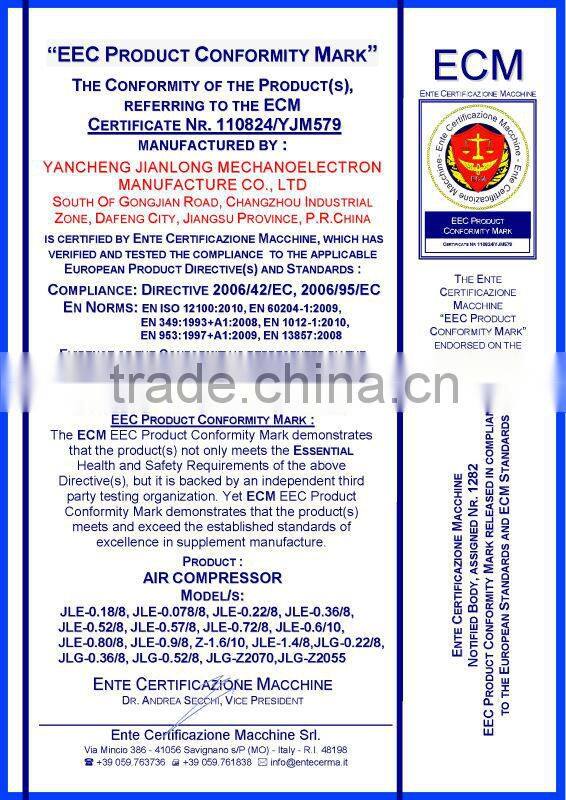

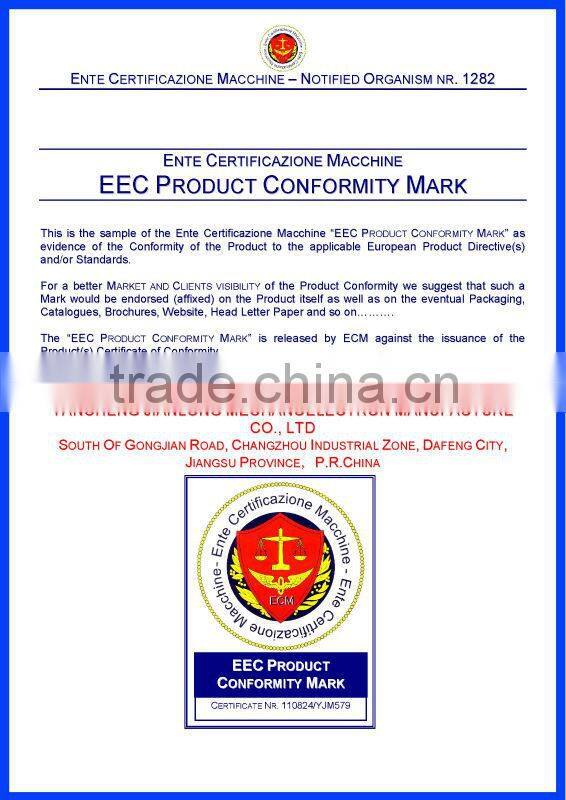

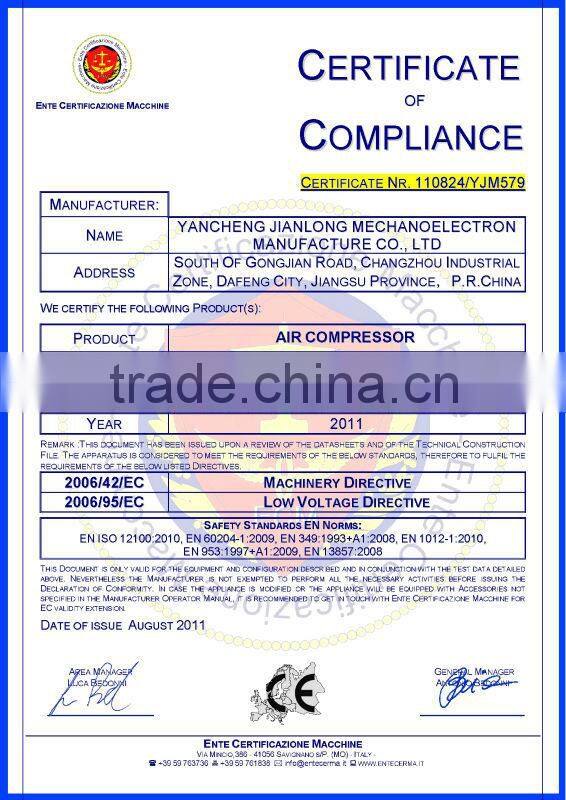

Certification





electric driven base plate air compressor with CE JL2105,compressorelectric driven base plate air compressor with CE JL2105,compressorelectric driven base plate air compressor with CE JL2105,compressor







Company Information





Yancheng Jianlong Mechanoelectron Manufacture Co.,Ltd was established in 2008, located in Dafeng city,Jiang su Province. We specialize in piston air compressor,screw compressor, air compressor pumps, and other parts of air compressors. We operate complete sets of inspection and testing equipment with advanced technology. As a result, our annual production capability reaches 200,000 sets of machines. We were ISO9001:2008 rtified.

"Customer in my heart,quality in my hands",Jianlong has always been the product quality as enterprise life,therefore we always have efforts and ultimately create the perfect AEOLUS brand.
