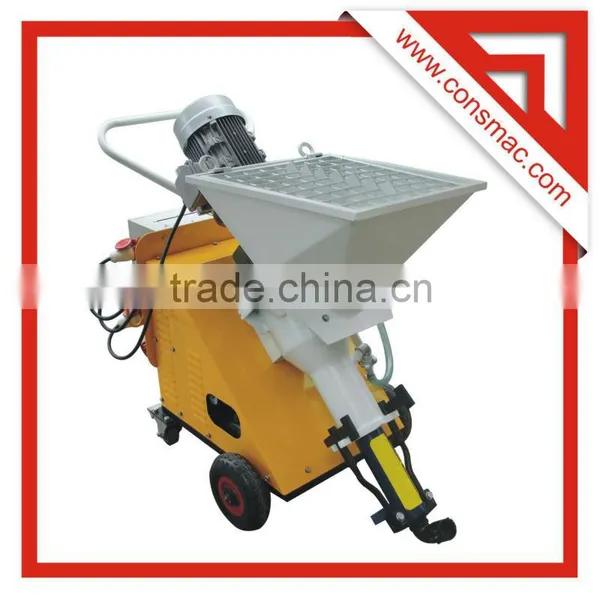

Specifications
mortar spray machineOutput: 28L/min
Grain size: 3mm
Delivery height: 20m
Hopper: 48L, Mixer:80L
Mortar spray machine Features:
1. Electric mortar pump.
2. For the continuous pumping of material up to 6 mm.
3. Robust and easy maintenance.
4. High performance stator / rotor pump.
5. Maintenance free motor and gearbox 3 phase
6. Material hopper with 48 liters capacity and low filling height.
7. Chassis mounted on 2 wheels for easy transport.
8. High performance mortar pumpt for pumping, spraying and injecting all sorts of mortars.
9. Easy to use.
10. Multiple applications.
Applications:
1. Base coat plaster (interior and exterior)
2. Scraped and floating render
3. Sprayed and textured render
4. Rough trowel finish render and Bonding layers
5. Masonry mortar
6. Fire proofing
7. Sealing slurry
8. Injection mortar and filling mortar
9. Dispersion plaster
10. Glass-fibre-reinforced concrete
11. Cementitious adhesive
12. Repair mortar and Insulating plaster
13. Loam rendering
14. And much more
Mortar spray machine Specification:
Model |
SPM30J |
Motor for Screw pump |
4.0kw, 220V/380V/ 400V/50Hz/60Hz, 3 phase |
Motor for Mixer |
2.2kw, 220V/380V/ 400V/50Hz/60Hz, 3 phase |
Output |
50L/min |
Grain size |
0-3mm |
Delivery height max |
20m |
Delivery distance |
40m |
Working pressure |
30bar |
Materials ratio for mortar |
1:2.5-3(cement vs sand) |
Hopper |
48L |
Mixer |
80L |
Weight |
300kg |
Packing size |
1880×900×1300mm |
All CONSMAC Mortar spray machine are available for online purchase with fast delivery. Please feel free to contact us at Phone No: 0086- 574- 88192352, Skype: richardyoung86, or send us enquiries on line, all your mails will be replied within 24 hours
