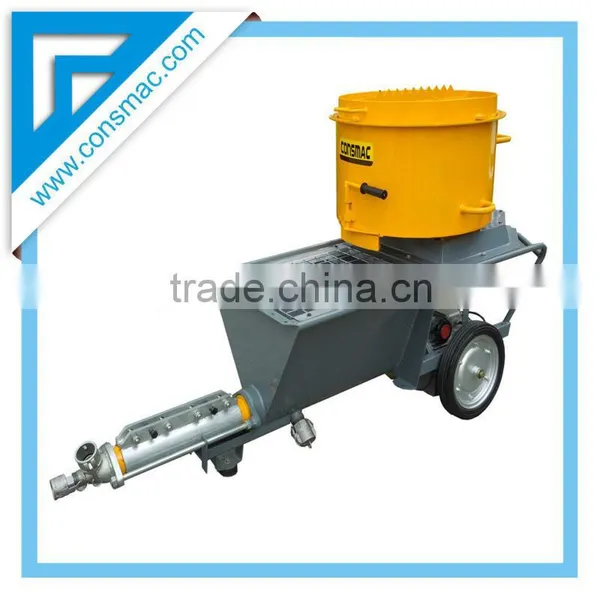

Plastering machine for wall

Specifications

Plastering machine for wall
Output: 50L/min
Grain size: 6mm
Delivery height: 30m
Hopper: 100L, Mixer: 120L

Plastering Machine for wall Features:



1. Electric mortar pump.
2. For the continuous pumping of material up to 6 mm.
3. Robust and easy maintenance.
4. High performance stator / rotor pump.
5. Maintenance free motor and gearbox 3 phase
6. Material hopper with 100 liters capacity and low filling height.
7. Chassis mounted on 2 wheels for easy transport.
8. High performance mortar pumpt for pumping, spraying and injecting all sorts of mortars.
9. Easy to use.
10. Multiple applications.

Applications:

1. Base coat plaster (interior and exterior)
2. Scraped and floating render
3. Sprayed and textured render
4. Rough trowel finish render and Bonding layers
5. Masonry mortar
6. Fire proofing
7. Sealing slurry
8. Injection mortar and filling mortar
9. Dispersion plaster
10. Glass-fibre-reinforced concrete
11. Cementitious adhesive
12. Repair mortar and Insulating plaster
13. Loam rendering
14. And much more

Plastering Machine for wall   Specification:



Model	SPM50
Motor for Screw pump	5.5kw, 220V/380V/ 400V/50Hz/60Hz, 3 phase
Motor for Mixer	2.2kw, 220V/380V/ 400V/50Hz/60Hz, 3 phase
Output	50L/min
Grain size	0-6mm
Delivery height max	30m
Delivery distance	60m
Working pressure	30bar
Materials ratio for mortar	1:2.5-3(cement vs sand)
Hopper	100L
Mixer	120L
Weight	410kg
Packing size	2280×900×1300mm
