CONSMAC Plaster Machine P60K S5 Type

CONSMAC Plaster Machine P60K S5 Type thumbnail-1
CONSMAC Plaster Machine P60K S5 Type photo-1
US$ 5,000 - 10,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Power(W):
5.5kw,220V/380V/415V,50Hz/60Hz Electric Motor Three phase
Contact Supplier Request Quote Chat Now
Consmac Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Automatic
Power(W) 5.5kw,220V/380V/415V,50Hz/60Hz Electric Motor Three phase
Rendering Thickness 6 mm
Rendering Height 40 m
Place of Origin Zhejiang, China
Brand Name CONSMAC, CONSMAC
Model Number P60K, P60K
Dimension(L*W*H) 226*72*70cm, 226*72*70cm
Weight 350kg, 350kg
Certification CE, CE
Warranty 12 monthS, 12 months





CONSMAC PLASTER MACHINE P60K

The universal worm pump for dry mix and wet mortar from a bag or silo. The S5 plastering machine is a modular system. This plastering pump is available in the TM version.   Suitable for: ground couat plasters and insulating plasters, rough cout and textured plasters, trowel plaster, adhesive bonded joint, masonry mortar, refractory mortar, sealing suspensions, injection mortar, filling and achoring mortar, dispersion plaster, fiber mortar, fibreglass concrete, bonding moratr,




CONSMAC PLASTER MACHINE P60K SPECIFICATION



Applications:
For spraying Fire proof materials, Interfacial agent, Stone Paint, Plastering mortar.
With variable-speed motor (two speed), vibration screen, Spray gun stop/start control.



Infinite number of possible applications








  • Base coat plaster (interior and exterior)
  • Sealing slurry
  • Scraped and floating render
  • Injection mortar and filling mortar
  • Sprayed and textured render
  • Dispersion plaster
  • Rough trowel finish render and
  • Glass-fibre-reinforced concrete
  • bonding layers
  • Cementitious adhesive
  • Masonry mortar
  • Repair mortar and Insulating plaster
  • Fire proofing
  • Loam rendering






  • and much more




CONSMAC PLASTER MACHINE P60K  TECHNICAL DATA



Model P60K
Air compressor Including
Pump delivery 40L/min
Hopper volume 100L
Grain size <6mm
Delivery height max 40m
Delivery distance max 60m
Running pressure 40bar
Motor power 5.5kw,220V/380V/415V,50Hz/60Hz
Electric Motor Three phase
Total weight 350kg
Overall dimensions 226*72*70cm




Standard Assy.
A. mortar pipe of Φ38mm*10m: 1 piece,
B. trachea of Φ8mm*20m: 1 piece,
C. spray gun (nozzle): 1 piece,
D. repair kit: 1 piece.







CONSMAC PLASTER MACHINE P60K Advantage

Equipment features of the plastering machine P60K :



S 5 basic version

  • The large hopper of the S 5 has a grille with a safety switch and holds a huge 100 litres. This
    allows the material to be processed quickly. The safety grille can be opened extremely wide, so
    that it is easy to access the conveyor hopper (e.g. for cleaning).

  • The modular system of the S 5 is based on a worm pump with a powerful 5.5 kW drive. The basic version is particularly suitable for users who pump and spray pumpable wet mortars with
    grain sizes of up to 6 mm.


  • Depending on the requirements of the job, you can modify the output of your S 5 very easily
    by changing the relevant worm parts. The rotor of the S 5 is not bolted in place, but
    instead simply pushed on. This means that you don’t need any tools to change the pump, thus
    saving you valuable time.


  • The handy rotary wheel regulates the pump speed and therefore the
    delivery rate.


  • A sturdy metal plate on the S 5 protects the motor and gearbox from dirt.









Payment Terms

1. Standard T/T

2. L/C at sight

3. D/P negotiable







Packing Information

 Wooden Case or as customer' requirement

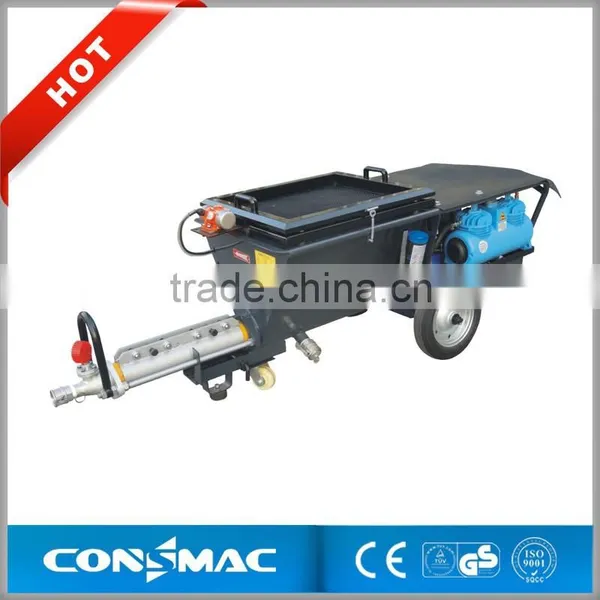

CONSMAC PLASTER MACHINE P60K PHOTO

CONSMAC plaster machine P60K S5 Type





 CONSMAC plaster machine P60K S5 TypeCONSMAC plaster machine P60K S5 Type





CONSMAC plaster machine P60K S5 Type



CONSMAC plaster machine P60K S5 Type
