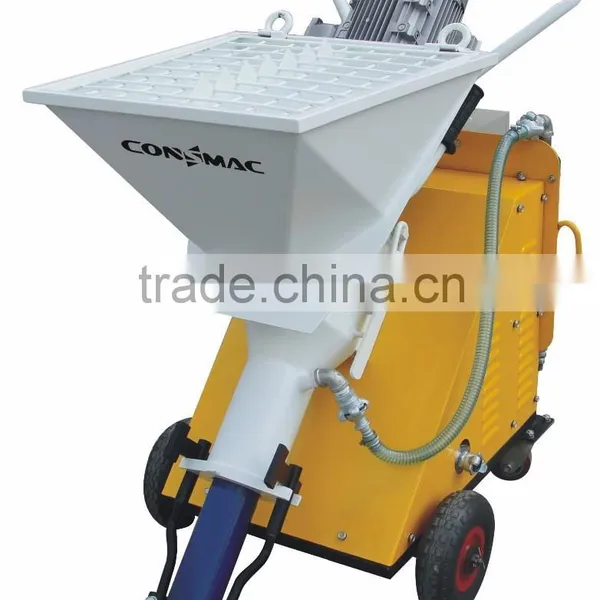

P22 Mortar Plastering Machine Mixing Pump

Name: P22 Mortar Plastering Machine Mixing Pump
Brand: CONSMAC, CONSMAC
SKU: 121407221

US$ 5,000 - 10,000 MOQ: 1 Carton

Key Specifications

Condition:

New

Automatic Grade:

Automatic

Power(W):

4.0kw

Consmac Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Automatic Grade Automatic

Power(W) 4.0kw

Rendering Thickness 30 mm

Rendering Height 15 m

Place of Origin Zhejiang, China

Brand Name CONSMAC, CONSMAC

Model Number P22, P22

Dimension(L*W*H) 130*74*122 cm, 130*74*122cm

Weight 205KGS, 205kg

Certification CE, CE

Warranty 12 month, 12 months

P22 mortar plastering machine mixing pump

1. Introduction

The CONSMAC P22 mortar plastering machine is designed on the basis of German technique.

The machine is multifunctional. It can accomplish the mortar mixing, pumping, conveying, bonding and plastering. It also has the extra functions of water pumping and flow metering.
The machine applies to the commonly used types of mortar, such as walling type, thermal insulation type, self-leveling type, bonding type, repairing type, etc.
Setting the pressure control and protection mechanism makes the remote control of our mortar plastering machine come true.
The size is small, and the structure is modular, which allows the machine to be disassembled moved conveniently.

2. Technical Data

*Technical Data of Mixing Pumping and Spraying P22 Versatile Plastering Machine*
*Model*	*P22*
*Air compressor*	With
*Pump delivery*	22LlMin
*Hopper volume*	45L
*Grain size*	<3mm
*Delivery distance*	40m
*Delivery height*	15m
*Running pressure*	30bar
Mixing Speed	52r/min
*Screw pump power*	4kw,380V/50Hz
*Air compressor power*	2.2kw,380V/50Hz
*Pump power*	0.37kw,380V/50Hz
*Dimension*	130×74×122 cm
*Weight*	205Kg

3. Advantages

Completly equipped machine for mortar applications/EWI
Can be filled with buckets or bags, can be used as a mixing pump or a pump
Easy to handle at activation, conversion, service and cleaning
Flexible mixing intensity through two water inlets – processing of a number of different materials
Infinitely variable drive – exact setting of conveying and mixing performance
Small, light, handy, compact and rollable
Can be disassembled into its three modules
