Specifications
Japanese Type Vibration HoseDYNAPAC,Maylasia,Australian,Russia,Turkish types available
Head:25,28,32,35,38,45,50,60mm

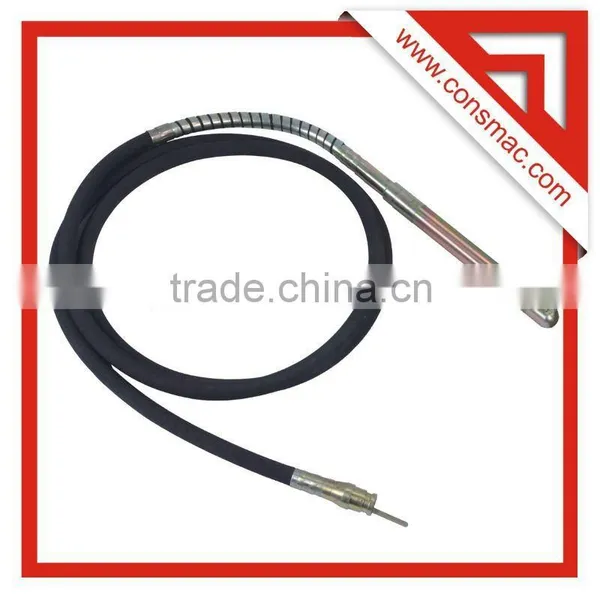

Vibration Hose SVS Series
CONSMAC SVS series high-performance mechanical Vibrator Hose. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC electric vibrator motor(SVE series), gasoline and diesel vibrator motor(SVD series).
Vibration Hose SVS Series Couple Option:
1. Japanese type
2. Dynapac type
3. Russian type
4. Turkish type
5. Australian type
6. Chinese square type
Vibration Hose SVS Series Head Dia:
25mm,28mm,32mm,35mm,38mm,45mm,50mm,60mm,70mm.
Vibration Hose SVS Series Specification:
| Model | SVS25 | SVS28 | SVS32 | SVS35 | SVS38 | SVS45 | SVS50 | SVS60 | SVS70 |
| Head Dia. | 25mm | 28mm | 32mm | 35mm | 38mm | 45mm | 50mm | 60mm | 70mm |
| Length of Shaft | Standard length:6m(1m-12m is available) | ||||||||
| Hose outside Dia | 24mm | 25mm | 30mm | 32mm | 36mm | ||||
| Hose inner Dia | 13mm | 14mm | 16mm | 18mm | 20mm | ||||
| Shaft Dia | 8mm | 10mm | 12mm | 13mm | |||||
| Frequency | 230hz | 210hz | 200hz | ||||||
| Amplitude | 1.1mm | 1.11mm | 1.13mm | 1.15mm | 1.18mm | 1.2mm | 1.21mm | 1.28mm | 1.32mm |
| Couple Choice | Japanese type ,Dynapac type,Chinese square type,Australian type,Turkish type | ||||||||
| Drive unit | Electric motor, Petrol engine, Diesel engine | ||||||||
| Packing size | 85*65*6cm(33*25*2.5in) | ||||||||
| Optional | Outer Liner, Spring | ||||||||
Vibration Hose SVS Series Components:
All CONSMAC Vibration Hoses are available for online purchase with fast delivery.
Please feel free to contact us at Phone No: 0086- 574- 88192352, or send us enquiries on line, all your mails will be replied within 24 hours.
