Specifications
Dynapac Type Concrete Vibrator HoseJapanese,Maylasia,Australian,Russia,Turkish types available
Head:25,28,32,35,38,45,50,60mm

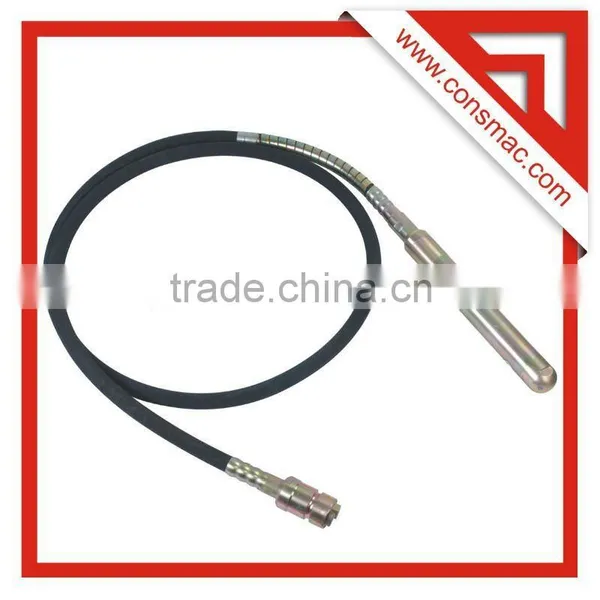

Concrete Vibrator Hose SVS Series
CONSMAC SVS series high-performance mechanical Concrete Vibrator Hose. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC electric vibrator motor(SVE series), gasoline and diesel vibrator motor(SVD series).
Concrete Vibrator Hose SVS Series Couple Option:
1. Japanese type
2. Dynapac type
3. Russian type
4. Turkish type
5. Australian type
6. Chinese square type
Concrete Vibrator Hose SVS Series Head Dia: 25mm,28mm,32mm,35mm,38mm,45mm,
50mm,60mm,70mm.
Concrete Vibrator Hose SVS Series Specification:
| Model | SVS25 | SVS28 | SVS32 | SVS35 | SVS38 | SVS45 | SVS50 | SVS60 | SVS70 |
| Head Dia. | 25mm | 28mm | 32mm | 35mm | 38mm | 45mm | 50mm | 60mm | 70mm |
| Length of Shaft | Standard length:6m(1m-12m is available) | ||||||||
| Hose outside Dia | 24mm | 25mm | 30mm | 32mm | 36mm | ||||
| Hose inner Dia | 13mm | 14mm | 16mm | 18mm | 20mm | ||||
| Shaft Dia | 8mm | 10mm | 12mm | 13mm | |||||
| Frequency | 230hz | 210hz | 200hz | ||||||
| Amplitude | 1.1mm | 1.11mm | 1.13mm | 1.15mm | 1.18mm | 1.2mm | 1.21mm | 1.28mm | 1.32mm |
| Couple Choice | Japanese type ,Dynapac type,Chinese square type,Australian type,Turkish type | ||||||||
| Drive unit | Electric motor, Petrol engine, Diesel engine | ||||||||
| Packing size | 85*65*6cm(33*25*2.5in) | ||||||||
| Optional | Outer Liner, Spring | ||||||||
Concrete Vibrator Hose SVS Series Components:
All CONSMAC Concrete Vibrators are available for online purchase with fast delivery.
Please feel free to contact us at Phone No: 0086- 574- 88192352, or send us enquiries on line, all your mails will be replied within 24 hours.
