Japanese Type Electric Cement Vibrator

Specifications

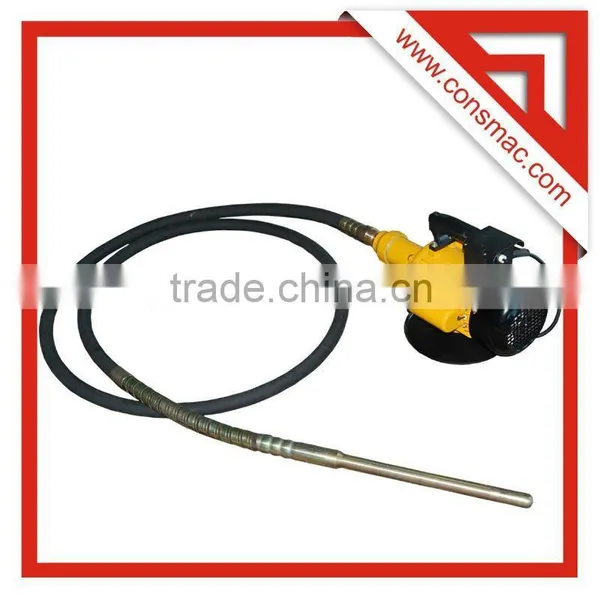

Japanese Type Electric Cement Vibrator
Maylasia Dynapac Type,Australia Type,Russia Type,
Diesel,Petrol Concrete Vibrator etc

Electric Cement Vibrator





CONSMAC SVE series high performance Electric Cement Vibrator is the drive unit for various concrete vibrator shaft with various couplings. Large choice of power from 1.1kw to 2.2kw, and rotary speed from 2840rpm to 12000rpm. Three phase and single phase motors are available.



Electric Cement Vibrator Coupling Choice:



1.  DYNAPAC Coupling

2.  Japanese Coupling

3.  Ball Type Coupling

4.  Pin Type Coupling

5.  Other coupling like Australia type, Russia type can be available, based on customers' choice.



Electric Cement Vibrator Specification:





Model	SVE-J	SVE-B	SVE-DF	SVE-D
Coupling Type	Japanese type	Japanese type	Dynapac type	Dynapac type
Power	1.1kw, 1.5kw, 2.2kw
Voltage	110V, 220V,380V
Rotary Speed	2840rpm





Model	SVE-P	SVE-PF	SVE-JF	SVE-S
Coupling Type	Pin type	Pin type	Japanese type	screw hexagonal
Power	1.1kw, 1.5kw, 2.2kw	1.6kw
Voltage	220V, 380V		220V
Rotary Speed	2840rmp	5600rpm	5600rpm	12000rpm









Concrete Vibrator Shaft



CONSMAC SVS series high-performance mechanical Concrete Vibrator Shaft. Large choice of couplings and diameters from 25 to 75 mm, drived by CONSMAC Diesel, Gasoline Concrete Vibrator(SVD series) and Electric Concrete Vibrator(SVE series)





Concrete Vibrator Shaft Coupling Option:



1.  Japanese type

2.  Dynapac type

3.  Russian type

4.  Turkish type

5.  Australian type

6.  Chinese square type

7.  Other couplings can be available, based on customers' choice.





Concrete Vibrator Shaft Specification





Model	SVS25	SVS28	SVS32	SVS35	SVS38	SVS45	SVS50	SVS60	SVS70
Head Dia.	25mm	28mm	32mm	35mm	38mm	45mm	50mm	60mm	70mm
Length of Shaft	Standard length:6m(1m-12m is available)
Hose outside Dia	24mm	25mm	30mm			32mm	36mm
Hose inner Dia	13mm	14mm	16mm			18mm	20mm
Shaft Dia	8mm			10mm		12mm	13mm
Frequency	230hz		210hz	200hz
Amplitude	1.1mm	1.11mm	1.13mm	1.15mm	1.18mm	1.2mm	1.21mm	1.28mm	1.32mm
Couple Choice	Japanese type ,Dynapac type,Chinese square type,Australian type,Turkish type
Drive unit	Electric motor, Petrol engine, Diesel engine
Packing size	85*65*6cm(33*25*2.5in)
Optional	Outer Liner, Spring





All CONSMAC Concrete Vibrators are available for online purchase with fast delivery.
