2014 Taida Widely-used mining equipment's flotation machine

Specifications

1.high efficiency,
2.high capacity,
3.high return rate,
4.stable performance,
5.mature technology

Widely-used mining equipment's flotation machine

       Henan Taida Mining Machinery Manufactory's floatation machine:

                      1. Professional: main key production is beneficiation equipment.

                      2. Good manufacture ability: the SF type's model can be from 1.2m3 to 40m3

                      3.Reabile after-sale service.

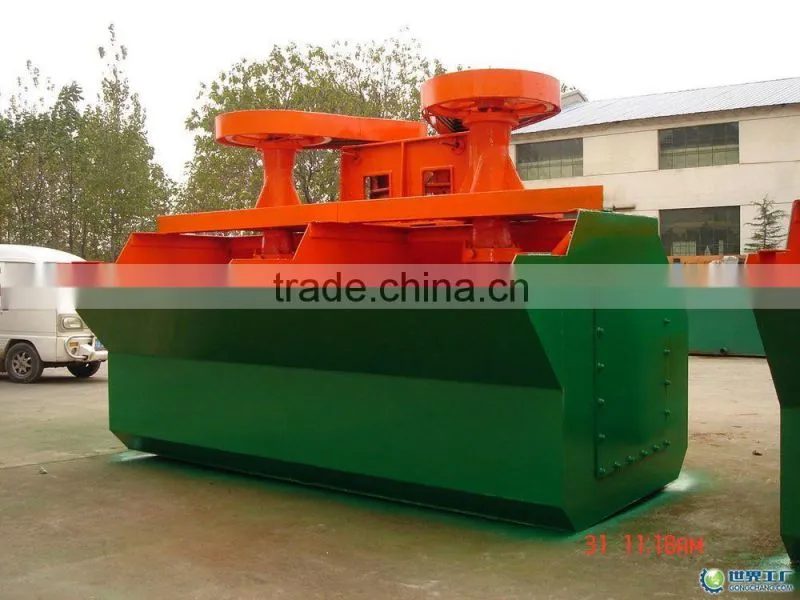

Show you  various volume flotation macine

38 m3 flotation machine                16 m3 flotation machine





The flotation machne's application



1. From capacity:50t/d to 5000t/d



2. From separation mineral's kind:



gold, copper, sliver,lead, zinc,and othr non-ferrous ore



Other non-metal material: fluorite,hematite.



3. Application from ore's geological property:



Sulphide ore is more, oxide ore is also suitable



The SF type flotation machine's technical paramter









Model		SF0.37	SF0.7	SF1.2	SF2.8	SF4
Trough capacity(m3)		0.37	0.7	1.2	2.8	4
Blade diameter(mm)		300	350	450	550	650
Production capacity(m3/min)		0.2-0.4	0.3-0.9	0.6-1.2	1.5-3.5	0.5-4
Blade rotation speed(m3/min)		352	400	312	268	238
Motor	Model	Y90L-4	Y100L2-4	Y132M2-6	Y160L-6	Y180L-6
		Y90S-4	Y90S-4	Y90S-4	Y90S-4	Y90L-4
	Power(kw)	1.5	3	5.5	11	15
		1.1	1.1	1.1	1.1	1.5
Dimensions(mm)		700*700 *750	900*820 *950	1100*1100 *1100	1700*1600 *1150	1850*2050 *1200
Single trough weight(kg)		468	600	1373	2338	2660





As realible manufacturer, I will give you complete service if you get flotation machine from

Henan Taida Mining Machinery Manufactory

1. do the necessary testing and experiment

2.Finalize work flow and machine's specification

3. Manufacture as material and engineering details

4. Guidance installation

5.Run-testing, adjust work flow

6.Testing production.
