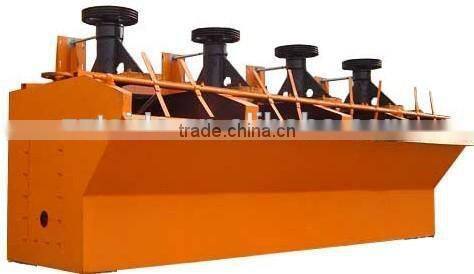

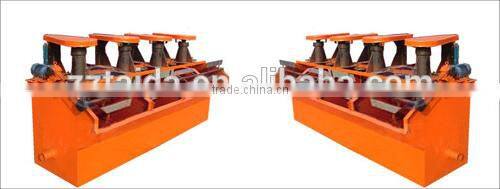

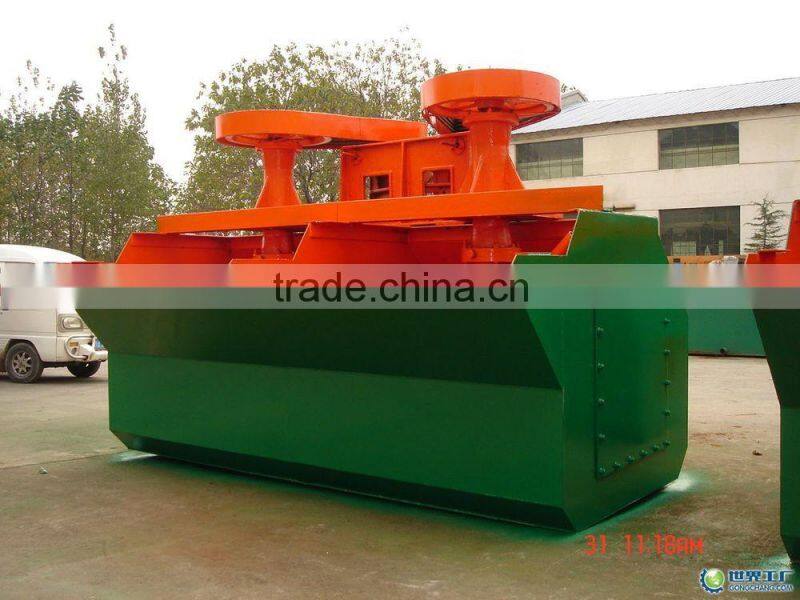

Help CenterProfessional Copper Ore Flotation Machine, Flotation Separation Equipment in Mining
Related Products
-
Energy Saving Gold Flotation MachineUS$ 1,000 - 9,999,999MOQ: 1 Set -
Zinc, Nickel and Molybdenum Selection Flotation MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
Vertical Shaft Impact Crusher /VSI Vertical Impact CrusherUS$ 10,000 - 500,000MOQ: 1 Set
-
Gold Ore Ball MillUS$ 60,000 - 800,000MOQ: 1 Set
-
Big Output Coal Gasification GasifierUS$ 7,000 - 10,000MOQ: 1 Set
Specifications
1. high enrichment rate2. large processing capacity
3. Anti-corrosion structure
4. factory price
1. Flotation machine Application:
Metal ore such as gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
2. Flotation machine Working Principle:
The Flotation Machine was driven by the motor with the working of impeller rotation, and then produces the centrifugal effect, and form the negative pressure. On one hand, adsorbing enough air to mix with the pulp; on the other hand, stirring the mixture of pulp and drugs, in the meanwhile, refining bubble, make the mineral adsorbed on bubbles, float to the pulp surface and form the mineralized bubble . Adjust the flashboard height, control the pulp surface, make the foam scraped by the scraping plate.
3. Flotation machine Features:
a. Large inhaling capacity and low energy consumption;
b. Complete flotation circuit with inhaling air and pulp, no auxiliaries are needed;
c. Process is easy to be changed;
d. Reasonable circulation of pulp decreases coarse sand sedimentation;
e. Automatic controlling device makes adjustment more convenient.
4. Flotation machine Parameters:
| Model | XJK-0.35(3A) | XJK-0.62(4A) | XJK-1.1(5A) | XJK-2.8(6A) | XJK-5.8(7A) | ||
| Effective Volume(m3) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 | ||
| Capacity(m3/min) | 0.18~0.4 | 0.3~0.9 | 0.6~1.6 | 1.5~3.5 | 3~7 | ||
| Rotate Speed(r/min) | 470 | 400 | 330 | 280 | 240 | ||
| Impeller Dia (mm) | 300 | 350 | 500 | 600 | 750 | ||
| Motor | Model | Rotator | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6(Y225M-6) |
| Scraper | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | ||
| Power(Kw) | Impeller Motor | 1.5 | 3 | 5.5 | 11 | 22(30) | |
| Scraper Motor | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Weight(t/Single Tank) | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 |
||
