Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Taida |
Model Number: | TDGY-001 | Voltage: | 220V/380V | Power(W): | 7.5kw |
Dimension(L*W*H): | 2600*1300*2300mm | Weight: | 2.5T | Certification: | ISO9001:2008 |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

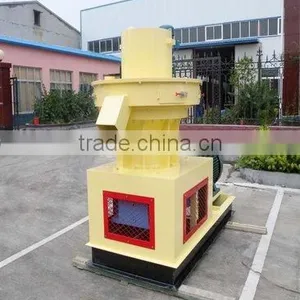

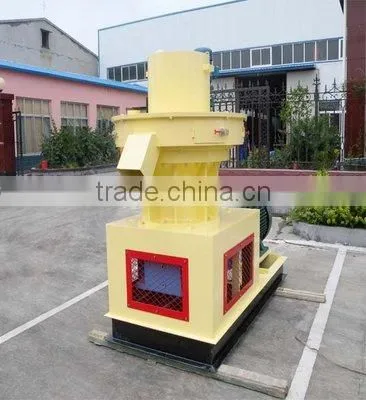

High Efficiency Wood Pellet Mill
1. Wood Pellet Mill
2.Over 20 years experience and more than 500 turn key pellet lines.
3.Suitable for large scope of raw material, such as sawdust, rice husk, straw, grass, EFB, etc.
4.High capacity and low energy consumption.
5.Siemens motor and SKF bearing.
6. Wide applicable scope:It can process different materials such as biomass materials like wood, sawdust, sugar cane,
bamboo, rice husk, grass, straw,etc, and some special raw materials like rubber, clay and plastic as well.
7. Adjustable capacity: We can customize the different capacities from 0.3 ton per hour to 20 ton per hour or evenmore.
8. After-sale guarantee:One year warranty and all round after sale service.
9. Gearbox: with pinion shaft, main gear, main shaft, quill shaft, gearbox body, manual lubrication system and overload protection system.
10. One set of roller assembly---two roller system.
11. Door made with one knife assembly.
Technical Parameter:
Model | MZLH508 |
Capacity(t/h) | 1.2-2 |
Inner diameter of ring(mm) | 508 |
Pellet Size(mm) | 6-12 |
Feeder power(kw) | 1.5 |
Main Power(kw) | 132 |
Dimension(mm) | 3000*1260*1860 |
Net weight(kg) | 3270 |

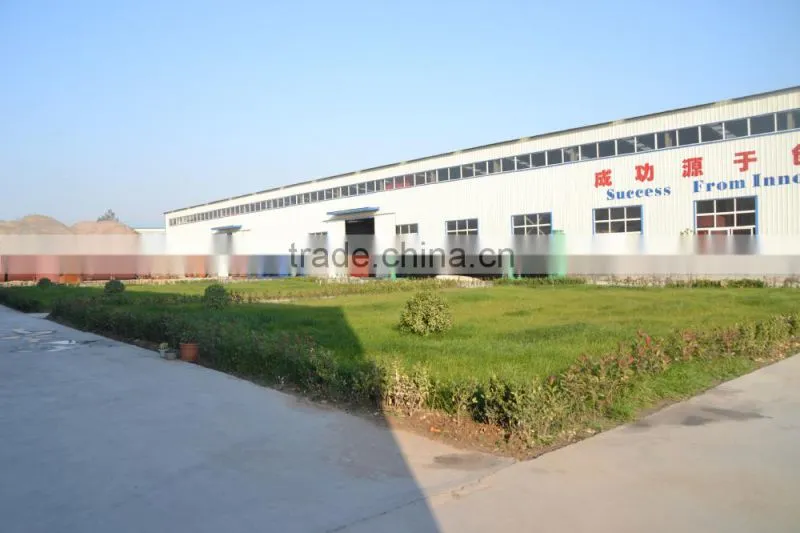

Company Introduction Zhengzhou Taida Drying Machine Co.Ltd is a mining equipment manufacturing and training company established in 1958 in China. Our main products are rotary dryers, rotary kiln, ball mill, coal gasifiers and sand making products. Our company has independent import and export rights. The company features advanced CAD and computer simulation test system, which ensures the quality of design, development, manufacturing and after-sale service.
SERVICE 1.Welcome customer consultations, propose plant operation scales based on customer needs, and provide detail plant constructing plan; 2.Provide customers with related technical documents timely; 3.Provide equipment installation and commissioning service; 4.Structure the management framework for customers, train production management, equipment maintenance and quality control personnel; 5.Timely and efficient delivery of original spare parts; 6.One year equipment warranty, life-long maintenance advice and consultation; 7.Receive customer technical feedbacks 24 hours; provide customers with the technical diagnosis
