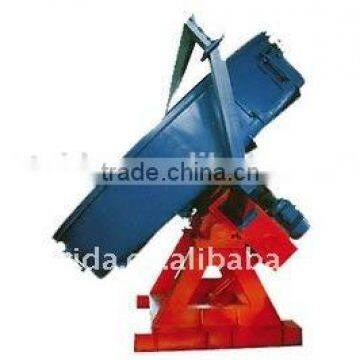

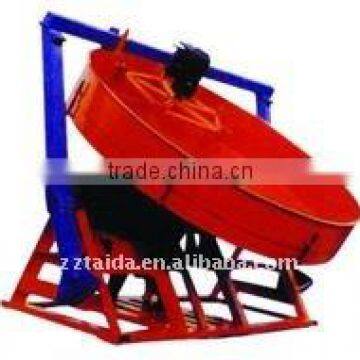

Specialized Compound Fertilizer Pellet Machine/ High Effiency Disk Pellet Machine
This series of granulating disc, granulating disc plate angle using arc structure. Granule rate can reach more than 93%. Reducer and the motor droved by the flexible belt, which made them stable starting, slow down the impact and improve the service life of equipment. Steel strengthening granulating disc bottom adopts multiple radiation, strong and durable, never deformation, thickening, compound, solid base design, do not need the anchor bolt, smooth operation. Granulator main gear adopts high frequency sudden fire to double service life. Granulation plate lining of high strength glass fiber reinforced plastic, anticorrosion and durable. The machine has advantages of uniform granules, high granule rate, smooth operation, equipment is strong and durable and long service life.
Working principle
This series of products by the main motor drive pulley and belt, through the reducer drive pinion, pinion interlocking with big gear which fixed in the bottom, work opposite. Big gear with special reasonable design, installed on the main shaft fixed on the frame to adjust plate, to support the work of the granulating disc (this machine is used to spray machine). The material enter the granulating disc, after continuing rotation of the granulating disc and spray device, material sticking evenly to be particles together. In this machine granulation upper plate has design of the automatic cleaning device, preventing the of wall material viscosity, thus greatly improving the service life of the machine. With the constant rotation of motor, materials into unceasingly, can realize the mass production, has reached to the needs of the user.
Advantages
Simple structure
Easy to adjust
Excellent performance
Notes: this machine is suitable for conveying materials with granularity less than 50mm, while it is not suitable for cohesive materials, easy-to-flow or hard-to-flow materials
Technical parameters
Specification (m) |
Rotation speed of disk (r/min) |
Capacity(t/h) |
Power(kw) |
Adjusting range of disk gradient |
Dimensions( m ) |
Weight (kg) |
Ø2.2 |
14.25 |
4-8 |
7.5 |
35-55 |
2.8*2.75*2.58 |
2850 |
Ø2.5 |
11.81 |
5-10 |
7.5 |
35-55 |
3.2*2.3*3 |
3250 |
Ø2.8 |
11.21 |
12-16 |
7.5 |
35-55 |
3.4*2.6*3.1 |
3710 |
Ø3.0 |
11.3 |
15-18 |
11 |
35-55 |
3.7*2.7*3.3 |
4350 |
Ø3.2 |
9.6 |
15-20 |
11 |
35-55 |
3.9*2.7*3.4 |
5110 |
Ø3.6 |
9.1 |
18-24 |
15 |
35-55 |
4.3*3.1*4.0 |
6510 |
