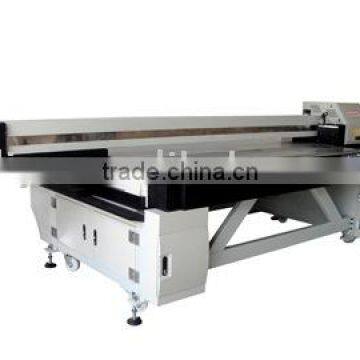

Help CenterLIYU UV Flatbed Printer (Spectrum KS Series)
Related Products
-
Thor-jet KR Series UV Flatbed Printer(Roll to Roll)NegotiableMOQ: 1 Case -
UV Flatbed Printer (LIYU Victor KJ Series)NegotiableMOQ: 1 Set
-
LIYU UV Flatbed Printer (Victor KJ Series)NegotiableMOQ: 1 Set
-
LIYU Victor KJ Series UV Flatbed PrinterNegotiableMOQ: 1 Set
-
LIYU Victor KJ-II Series UV Flatbed PrinterNegotiableMOQ: 1 Set
Specifications
Max. speed: 56sqm/h, high productivity, the UV system easygoing, profitable, far-ranging applications with good market prospectsTechnical Specifications for Spectrum KS series UV Flatbed printer
Model |
KS2512 |
rinting methods: |
Drop-on-demand piezo electric |
Print Head |
8/14*Spectra256 |
Media Size: |
2400mm*1220mm |
Printing Speed |
Max. 56sqm/h |
Resolution |
Max720dpi/800dpi |
Colors |
C,M,Y,K / C,M,Y,K,Lc,Lm,W |
Power Supply |
9500KW |
Ink System |
Negative Pressure Control, Auto. Continuous Ink Supply |
Media Holding |
Six separate Air Chamber Vacuum Control |
X/Y-drive Motor |
Dual AC Servo Motor |
Type of Ink |
UV Curable Ink |
Type of Media |
All kinds of Rigid material and Soft media |
Media Transmission |
Sheet to Sheet |
Interface |
USB2.0 |
Maximum Media Transmission |
50mm |
Heating System |
Sub-tank Pre-heating, Printhead Temperature Control |
Media Check |
Auto. detection of media |
G./Weight |
2080kg |
Packing Size |
4.9M( L)*2.2M ( W )*1.85M( H ) |
Power Requirement |
110V/220V±10%,>10A,50/60HZ |
Environment |
Temperature:2030,Humidity:40%80%RH |
Outdoors Durability |
2-5 years |
Specifications are subject to change without prior notice.
1. Printhead Characteristics:
Adopt the advanced US Spectra Galaxy 256 robust head, lifetime up to 5 years, fire frequency up to 20KHZ, highly improved the printing efficiency.
2. Type of Media:
Glass, ceramic, aluminum, wood, doors, cardboard, Chevron board, ceiling, MDF, metal lacquer panels, toilet cover, acrylic, plexiglass; table loading capacity of 100KG/sqm.
3. Media Detection:
Auto detection of Media size,auto. detection of Origin, auto. sensing of media thickness, auto. X/Y/Z location, available with different size and thickness of media.
4.UV curing system:
Imported UV lamp from UK, long lifetime, fitted with shutters which provide accurate curing for optimal ink adhesion to substrate, double protection to both the head and media.
5.Professional software control, high output:
Non-stop feeding during the scanning of the carriage speed, up and down, no waste of time.
Multi pieces copy function, X/Y direction distance adjustable which enables convenient batch production;
Software automatically calculates the workload, your job is under control.
6.Vivid Colors:
K C M Y / K C M Y + W
K C M Y Lc Lm / K C M Y Lc Lm + W;
With KS2512, you can achieve bottom layer, Top covering, pure color printing can be achieved with the White color.
7.Human Security:
The design of KS2514 based on human security: Safety inspection of carriage Trajectory, increased electrical cabinet dodr switch.
8.Applications
Ad. And Sign industry
Displays and Demo industry;
Decoration and glass industry
Leather, textile, & offset printing industry, etc.
