Home > Packaging & Printing > Printing Machinery > Screen Printer > LIYU Victor KJ Series Universal Printer

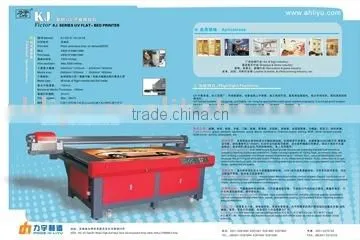

LIYU Victor KJ Series Universal Printer

Name: LIYU Victor KJ Series Universal Printer
Brand: LIYU
SKU: 121387673
Availability: InStock

LIYU Victor KJ Series Universal Printer thumbnail-1

LIYU Victor KJ Series Universal Printer photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Plate Type:

Flatbed Printer

Place of Origin:

Anhui, China

Contact Supplier Request Quote Chat Now

Anhui Liyu Computer Equipment Manu. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Plate Type Flatbed Printer

Place of Origin Anhui, China

Brand Name LIYU

Model Number KJ2512/2518

Usage Other, All kinds of Flexible and Rigid media

Specifications

Victor KJ Series Universal printer is easygoing, profitable, far-ranging applications with good market prospects.

Victor KJ series Universal printer:

MODEL	KJ2512 / KJ2518
Print Technology	Piezo continuous drop-on demand(DOD)
Print Head	4/6/8/12*KM512MH
Media size	2500mm1250mm / 2500mm1830mm
Media thickness	Max. 100mm
Media Check	Auto. detection of media
Printing Speed	Max. 33sqm/h
Print Resolution	Max720dpi/1440dpi
Ink Supply System	Auto. Ink supplying with Minus-Pressure adjustable
Cleaning System	Auto. Flush System
X/Y Driver Motor	Dual AC Servo motor
Ink type	UV Curable ink
Media type	All kinds of Rigid material and Soft media
Table Pressure	100kg/m2
Interface	USB2.0
Colors	C,M,Y,K / C,M,Y,K,W,Lc,Lm / C,M,Y,K+4W / C,M,Y,K2 / C,M,Y,K2+4W
G./Weight	1060kg
Packing Size	3.85M( L)2.05M ( W )1.20M( H )
Power requirement	110V/220V±10%,>10A,50/60HZ
Environment	Temperature:1530, Humidity:40%80%RH
Ourdoors Durability	2 - 5 years

Specifications are subject to change without prior notice.

1. Printhead Characteristics:

Adopt the advanced Japanese Konica UV specialized head, 512 nozzels double staggered, built-in temperature control system, real printing resolution up to 1440dpi.

2. Type of Media:

Glass, ceramic, aluminum, wood, doors, cardboard, Chevron board, ceiling, MDF, metal lacquer panels, toilet cover, acrylic, plexiglass, etc.

3. Mechanic Superiority:

Dual lead screw & dual guider broadside scanning mechanical structure, industry-leading machinery precision; Table loading capacity of 100kg/sqm, automatic take-off and landing crossbeam, maximum media thickness up to 100mm; Sub-vacuum absorption table enables the printing on different sizes of media; Auto. detection of media, Auto. detection of Origin, pneumatic medium jack-up system plus rolling bearings enables even a single person can load the large-format media easily.

4. Electronic contol Superiority:

Independent developed entire control system,classic combination of USB and Optical fiber, LIYU patent software control system, have experienced numerous customers trials, stability is our permanent commitment.

5. Pressure & Ink supply control:

Closed-loop automatic control, reliable printing quality; pneumatic control components imported from Japan, guaranteed quality; LIYU patent Valve cleaning system, easy to maintain.

6. Color options:

the machine can be configured as K C M Y / K C M Y Lc Lm / K C M Y * 2 and K C M Y + W; Moreover,the machine could spray with white color as bed or cover or spot-color printing.

7. Applications:

Ad. and Sign industry;

Displays and Demo industry;

Decoration and glass industry

Leather, textile and offset printing industry, etc.
