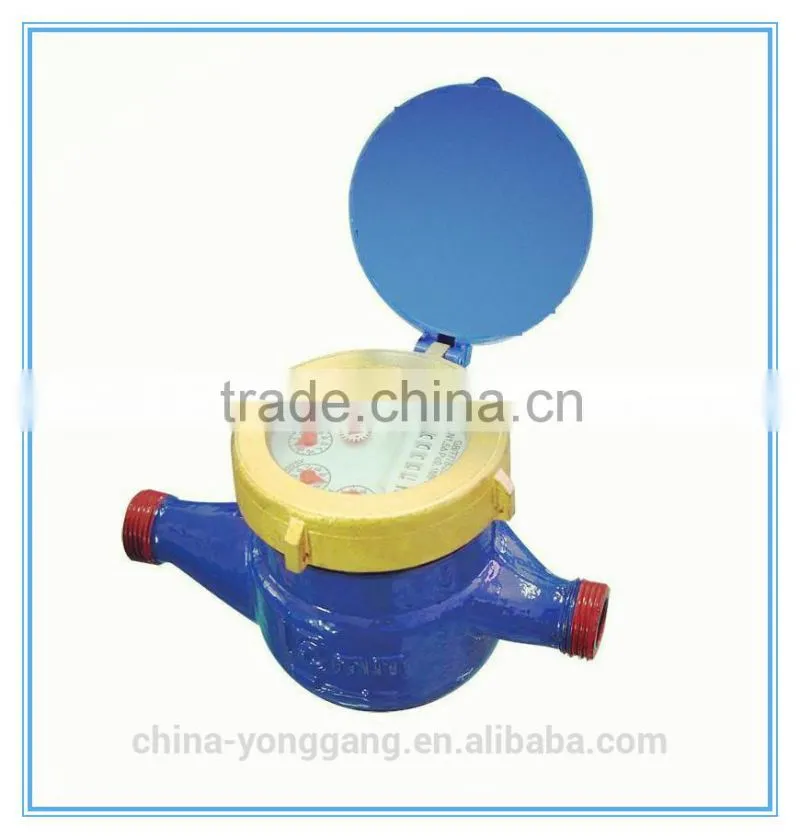

Multi jet cold water meters

This range of water meter is used to measure the total quantity of cold(hot) potable water which consumed in household or a resident unit, passing through the pipeline.

Compliance with standard: ISO 4064 Class B

Feature
•Dry-dial, magnetic drive, Resistance to exterior magnet interference
•Multi-jet

•Brass or cast iron body for option
•Selected high quality materials for steady&reliable characteristic
•Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
•Measuring accuracy conform to ISO 4064 class B Standard
•universal Use. Easy For Interchange&maintenance
•Cold water meter or hot water meter for option

MAIN TECHNICAL DATA

INDICATING ERROR

At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate(qs)

DIMENSIONS AND WEIGHT


Working condition
Cold Water temperature:≤50°C

Hot Water temperature:≤90°C
Working pressure:≤1Mpa
