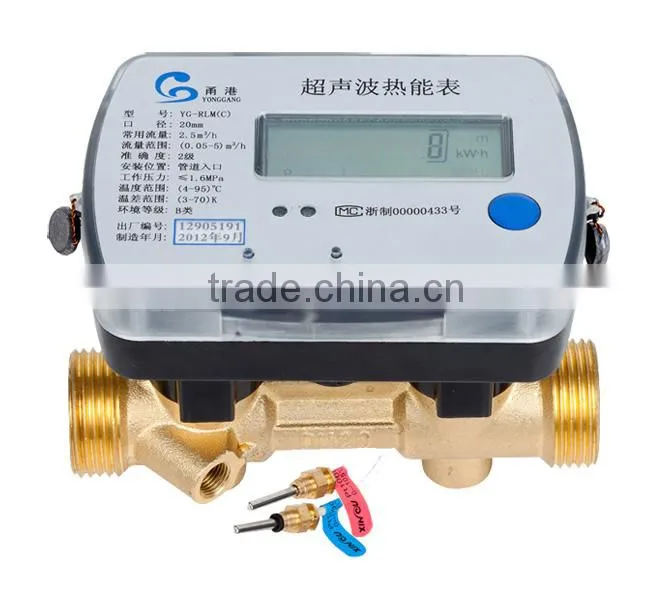

Ultrasonic Heat Meter With M-BUS or R-485

Ultrasonic Heat Meter With M-BUS or R-485 thumbnail-1
Ultrasonic Heat Meter With M-BUS or R-485 photo-1
Negotiable MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
RLM(C)-20-40
Contact Supplier Request Quote Chat Now
Ningbo Yonggang Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OEM
Model Number RLM(C)-20-40



I   Application



YG-RLM(C) series heat meters can be used to calculate heat or cold in apartment. This series is suitable for temperature range from 4 to 95℃.



II  Principle



Water will release heat if temperature decreases. Released heat is ratable with temperature difference and flowing volume through meter.



Flowing volume signal comes from flow sensor,temperature difference comes from temperature sensor pair,as result the calculator will calculate heat according to the flowing volume and temperature difference.



Display menu




Show topic Tip the
ontents of		 Unit Precision Remark
DN15-32 DN40
Cold Cold kWh 1 1
Power Cold heat kW 0.001 0.01
Inlet temp T1 “°” 0.01 0.01
Outlet temp T2 “°” 0.01 0.01
Inlet outlet
temp difference		 T “°” 0.01 0.01
Instantaneous flow Flow m3/h 0.001 0.01
Show topic Tip the
ontents of		 Unit Precision Remark
DN15-32 DN40
Flow volume Water m3 0.01 0.01
Run time   h 1 1
Current date YY-MM-DD       Effective working hours
Heat Heat kWh 1 1
Into the next cyde



Specification



Model Size Max flow Pemanent flow Minmum flow Flow sensor interface size Flow sensor interface size Minmum height
of meter body		 Maximum height
of meter body		 Meter weight
DN(mm) qs(m3/h) qp(m3/h) qi(m3/h) Length with comector Connecting thread Length with connector thread length connector theread
L(mm) D(inch) H(mm) L2(mm) D1(inch) H(mm) H1(mm) Kg
RC15 15 3 1.5 0.03 110 G3/4B 205 10 R1/2 100 150 0.5
RC20 20 5 2.5 0.05 130 G1B 235 16 R3/4 100 150 0.7
RC25 25 7 3.5 0.07 160 G11/4B 280 18 R1 110 160 1.5
RC32 32 12 6 0.12 180 G11/2B 305 20 R11/4 130 180 1.8
RC40 40 20 10 0.2 200 G2B 328 22 R11/2 140 190 2.5
Pressure loss 2 Level
Max working pressure <25k pa/qp
  1.6Mpa
Hot (cold) cinsumption calculation Starting for 0.25k
Temperature range (4~95)℃
Temperature difference range (3~60)℃
Temperature temperature 0.01℃
Environment temperarure A Type +5 ~ +55℃
Battery life 6 Year (Lithium Battery)
Installation Horzontal or vertical installation
Hot(cold)carrier H2O
Temperature sensor Pt1000 /Platinum resistance
Dispaly digits 8digits











If you are interested in our heat meter, please feel free to contact us!





Ultrasonic heat meter with M-BUS or R-485
