TUV GS 7W 110v 220v 230v mr16 gu 5.3 led spotlight dimmable
Features:
Unique design body structure for air circulation.
Good heat sink with die-casting aluminum(113w/m.k@ 20°C).
6-in-1 PMMA lens,>80% light transmittance.
Standard size: same as traditional MR16 halogen lamp.
Can directly replace 60-70W MR16 halogen lamp.
Dimmable is available: dimming range: 5%-100%, smooth,no flicker,no noise.
Can compatible with most of SCR dimmers, such as Lutron dimmers.
Latest dimming driver: built-in dimming driver for 12V GU5.3
Kinds of beam angles: 10°/15°/24°/38°/45°/60°, and lamp holder: GX5.3/GU10/E27.
High efficiency driver, high power efficient PFC solution(110V:PF>0.9;220V:PF>0.8).
High brightness with SMD LED source: can be customized high lumen output !!!
High CRI, long lifespan,2-3 years warranty.
TUV GS CE,EMC,LVD and RoHS certifications are available.
Specifications:
Gu10 mr16 led spotlight bulb lamps: | ||
Dimension |
Dia.50*48mm |
|
Base type |
MR16/GU5.3 |
|
Material |
Aluminum+PMMA lens |
|
Operating temp |
-20 to 50 °C |
|
Lifespan |
>50000 hours |
|
Net weight |
0.06kg |
|
Operating voltage |
AC/DC12V(MR16); 12V/110V/230V(GU5.3) |
|
Power |
7W |
|
Power consumption |
7±0.5W |
|
LED chip |
SMD LED |
|
LED Qty |
6pcs |
|
Lamp Luminous flux |
560lm±10% (can be customized high lumen output) |
|
Lamp Luminous efficacy |
80lm/w |
|
Beam angle |
15/24/38-45/60degrees |
|
Colors of lamp |
WW/NW/CW |
|
CCT |
2700-7000K |
|
CRI |
Ra>80 |
|
Dimmable |
IC dimming and RCC circuit with high voltage:100-120V/220-240VAC |
|
Packing |
Standard carton+ white box/color box 1pcs/box,100pcs/ carton Carton size: 60*30*20cm Label: white+ black label or color label with LOGO B2C Packaging for online shops: 6pcs/box; or 10pcs/box. |
|
Delivery time |
Samples: available Bulk order: depend on your quantity |
|

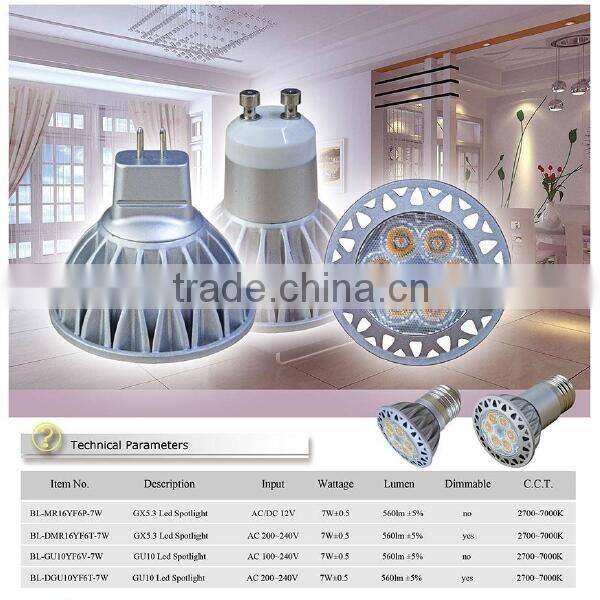

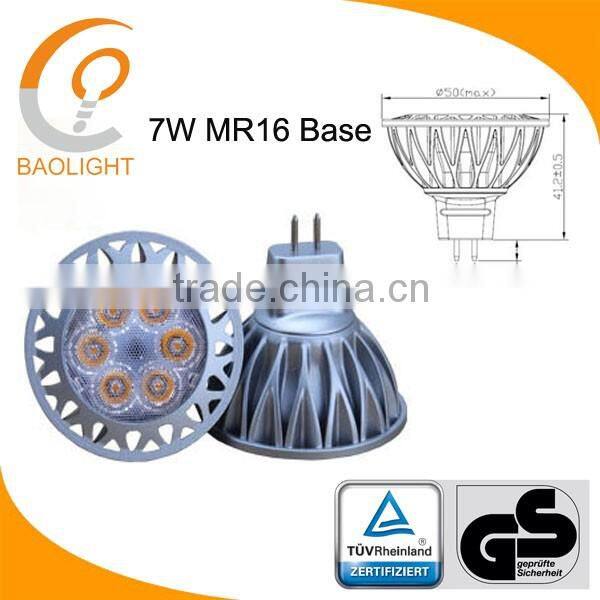

MR16/GU5.3 LED Spotlight reference pictures:
Different finish and lamp holder for mr16 led spotlight:
Aging test for mr16 led spotlight:
Applications:
Widely used in houses,offices,exhibition,meeting rooms, hotels, restaurants, schools, factories,hospitals,workshops,storages,roads,streets,etc
Common packaging info:
Standard carton+ white box/color box
1pcs/box,100pcs/ carton
Carton size: 60*30*20cm
Label: white+ black label or color label with LOGO
B2C packaging for online shopping:
6pcs*1 gift box; 10pcs*1 gift box.
Silk printing on the lamp body.
Blister card packaging for supermarkets
Trade items:
Payment terms: Paypla, western union, bank transfer etc.
Lead time: samples is available; mass order: depends on your qty.
Shipping ways: by express: DHL,TNT,UPS,FEDEX etc, by air or sea.
Shipping port: Shenzhen
A leader manufacturer with many experiences.
Independent R&D team.
Advanced equipment.
Strict quality test and control system.
Professional sales team, all inquiry will be replied within 24 hours.
Attend professional lighting fairs: HK and overseas.
OEM and ODM is available.
TUV&GS&CE&RoHS approval.
1.We will reply your inquiry in 24 hours after receiving them.
2.OEM /ODM and customized design are available.
3.Delivery the lamps to the customers all over the world with low shipping cost.
4.High quality products, competitive prices and excellent after-sales.
Looking forward to your inquiry in any time !
