Double Sides Full Color P5 Taxi Top Led Advertising Display

Negotiable MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

P6MM

Dongguan Asram Technology Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number P6MM

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 6MM

Screen Dimension Customized size

Technical parameters

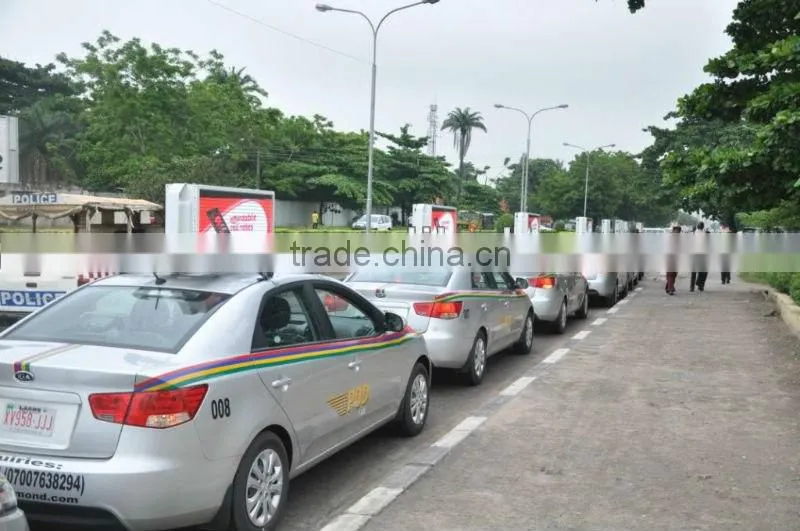

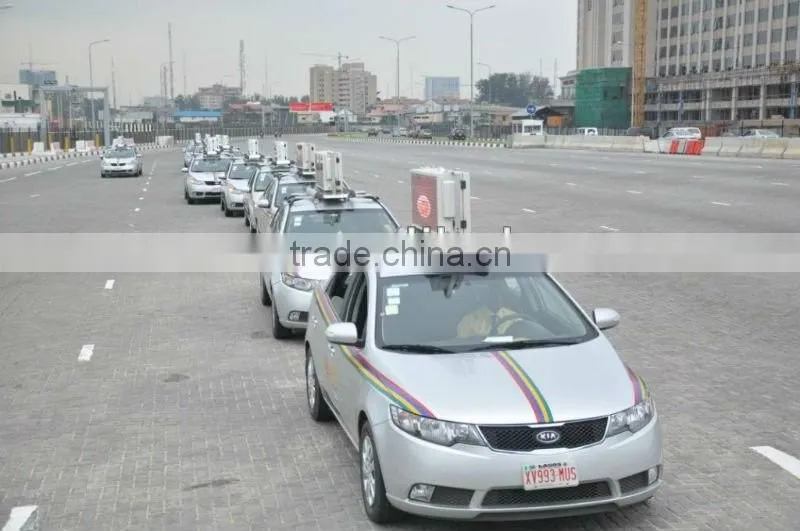

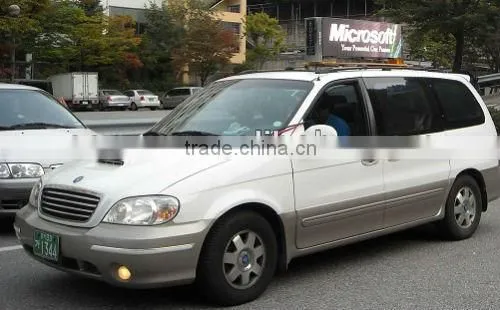

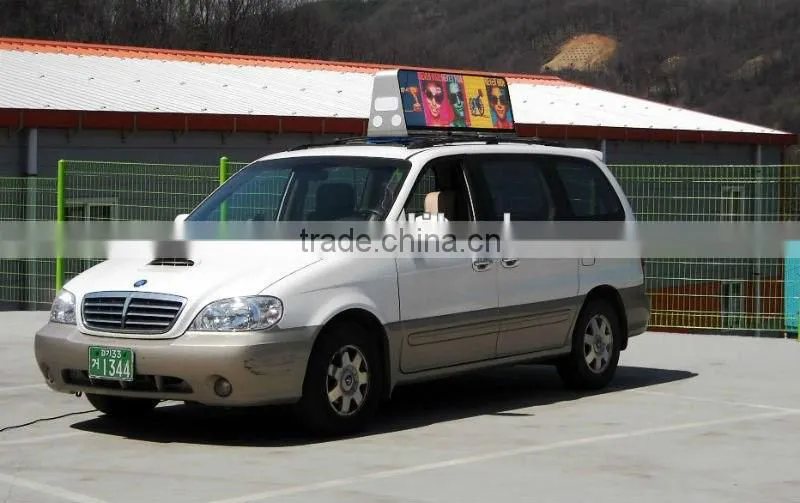

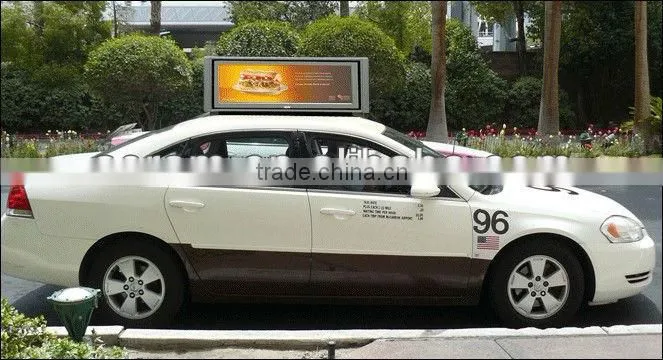

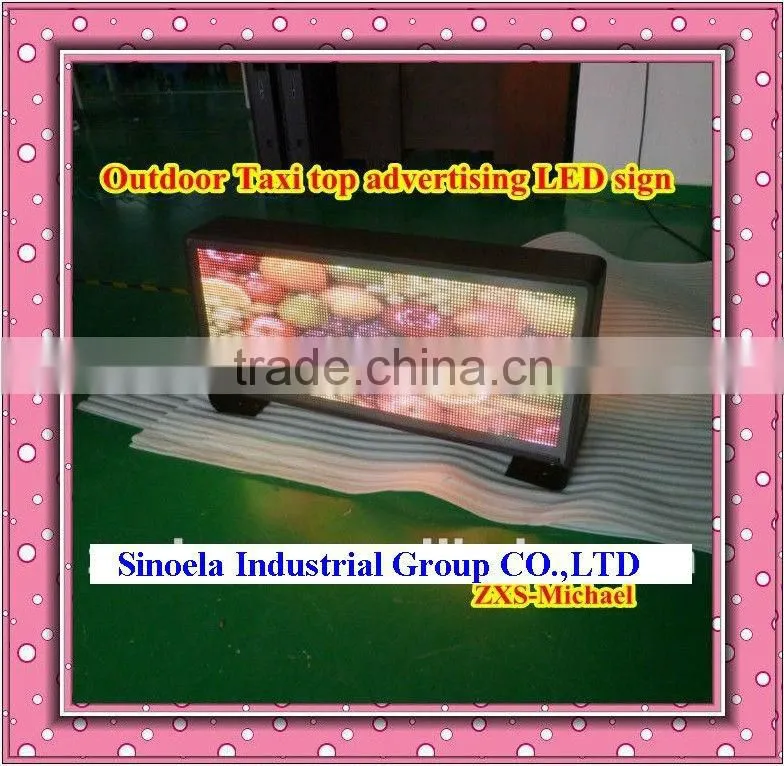

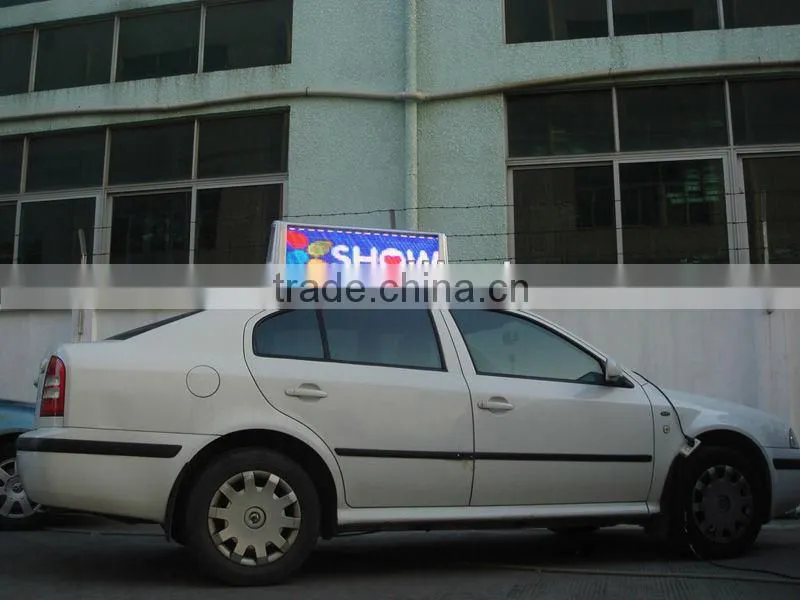

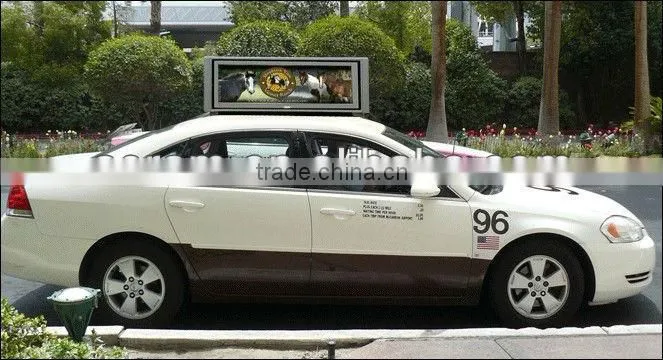

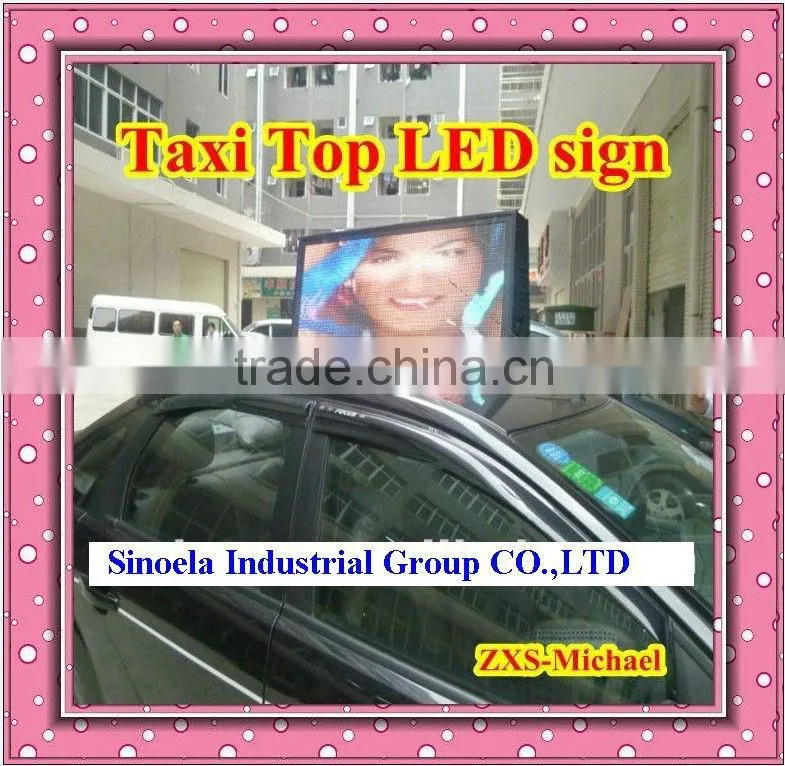

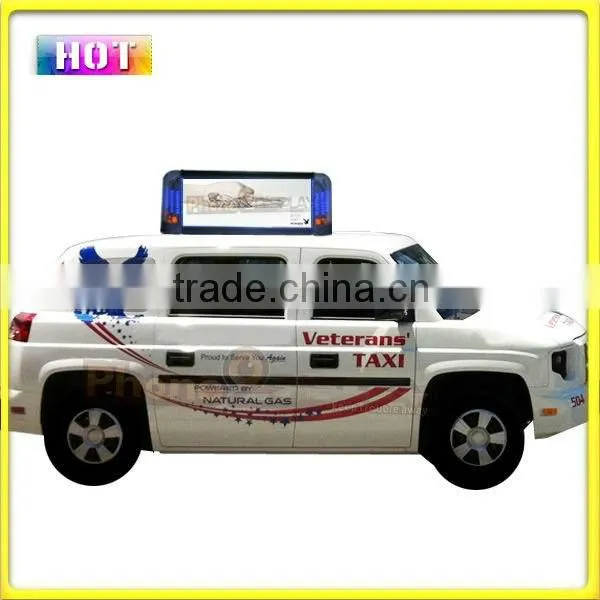

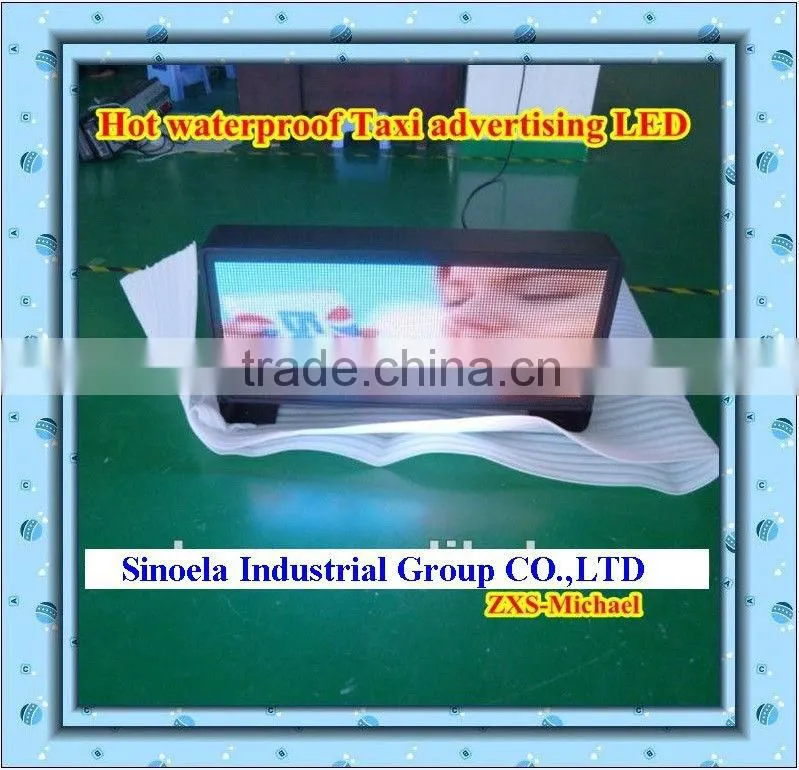

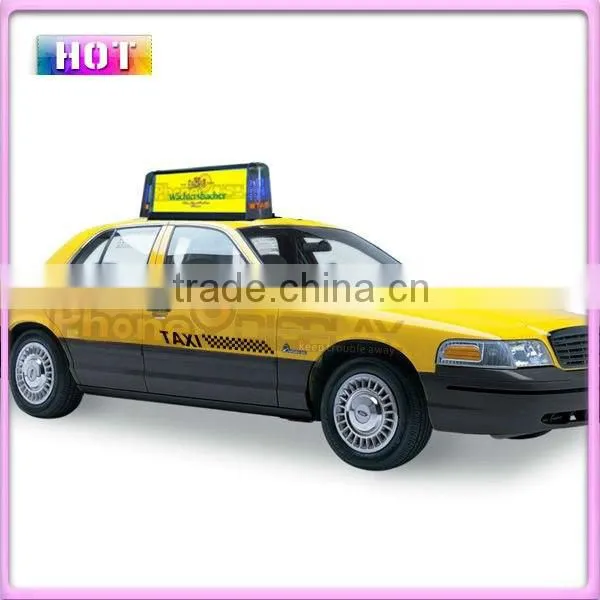

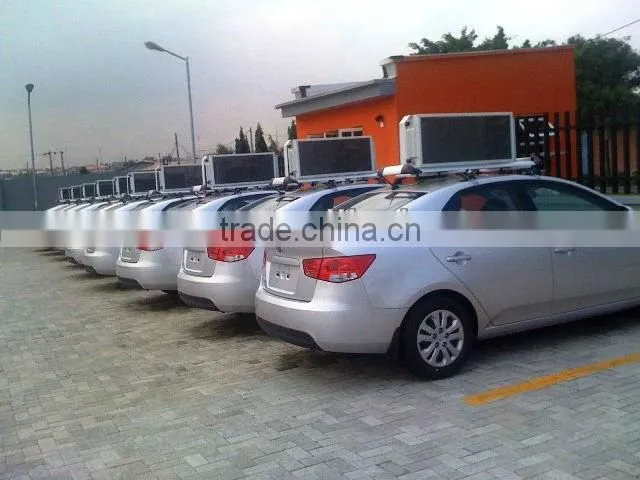

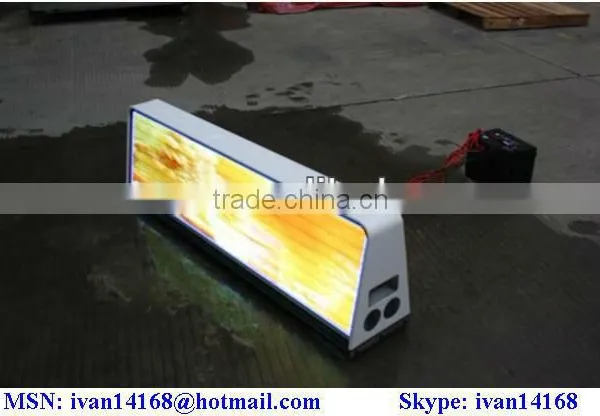

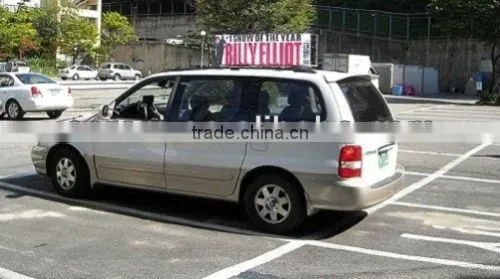

Outdoor P6 RGB LED Display--For Taxi/ Car/ Truck/ Bus
LED Data:
High Brightness	≥8000CD/sqm
Wavelength:	Red Led 620~625nm
	Green Led 520~525nm
	Blue Led 467~470nm
Horizontal Viewing Angle:	110°
Vertical Viewing Angle:	60°
Tech Parameter
Drive Mode:	1/4 constant current
Voltage for drawing IC:	DC 5V
Input Voltage	DC9~36V
Screen Power Consumption	Maximum power : 1000W/sqm,
	Average power 600W/sqm
View distance	4~25m
Cell board parameters:
Pitch	6MM
pixels	32*16Pixels
Single Module Dimension/Pixel(W x H)	192mmx96mm

Screen parameters:
Resolutions	(64128Pixels)2=0.59M2
size only with display area	384*768mm
housing Dimension(W x H)	895*570mm, D:145MM~195MM
LED Number per/sqm	27777Pixels/m2
LED per pixel	1R1G1B
Grey Scale	16777216
Material	SMD 3 IN 1
Control way:	TCP/IP , U Disk/ Wireless network
Working Temp:	-20°C ~ +40°C
Humidity	10-90RH
Waterproof level:	IP68
Cabinet Material	Metal / aluminum frame
Structure:	Frame with the stand which can hold in the car, bus and truck
Life span:	≥100,000 hours
Maintenance	warranty: 3 year, lifetime maintenance
Paking size and weight
Net weight	40kg
Paking size/Gross weight	1023068CM/60KG
