P16 RGB 256 X 256 Low Power Outdoor P16 Led Display Module

P16 RGB 256 X 256 Low Power Outdoor P16 Led Display Module thumbnail-1
P16 RGB 256 X 256 Low Power Outdoor P16 Led Display Module photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
P16mm
Contact Supplier Request Quote Chat Now
Dongguan Asram Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number P16mm
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 16mm
Screen Dimension Customized size



Specification:

Model

P16 Outdoor LED Display Screen

NO.

Items

Specifications

1

Pixel Pitch(MM)

16

2

Pixel Composition

1R1G1B or 2R1G1B

3

LED Encapsulation Type

DIP346

4

LED Chip Sizes

12+13+13(RGB) Epistar + Silan + Nicha + Opto

5

Pixel Density(Dots/M2)

3906

6

Module Size(MM)

256 x 256 (256 x 128 is optional)

7

Module Resolution(Dots)

16 x 16 (16 x 8 is optional)

8

Cabinet Size(MM)

1024 x 768

9

Cabinet Resolution(Dots)

64 x 48

10

Maximum Brightness

12000cd/sqm

11

Before Dot to Dot Correction

9000cd/sqm

12

After Dot to Dot Correction

8000cd/sqm

13

Brightness Adjustment Range

Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss

14

Color Temperature Adjustable

3200K - 10000K

15

Best View Distance(M)

15m - 110m

16

Horizontal View Angle

120 deg

17

Vertical View Angle

60 deg

18

Signal Processing

16bit

19

Control Mode

Synchronization

20

Driving Mode

Static Constant Current

21

Contrast

3000:1

22

Colors

281 Trillion Billion

23

Gray scale per colors

65536 level

24

Video Frame Frequency

More than 60HZ

25

Refresh Rate

More than 3000HZ

26

Lifetime

100000 Hours

27

Maximum Power Consumption

850 w

28

Average Power Consumption

380 w

29

Cabinet Weight(without Steel Structure)

30 Kg

30

Compatible Signals(with video processor)

X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP

31

Working Voltage

100-240V/AC 50/60HZ

32

Environment Temperature

–20 deg / +60 deg

33

Storage Temperature

–40 deg / +60 deg

34

IP Protection Rate

Front IP68, Rear IP65

35

Screen Surface Evenness

Less than 0.5mm

36

Working Humidity

10-99 percent

37

Storage Humidity

10-99 percent

38

Malfunction Dot Rate

Less than 0.0001

39

Display Screen Signals

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

40

Wind Resistance

Level 12

41

Shock Resistance

Level 8

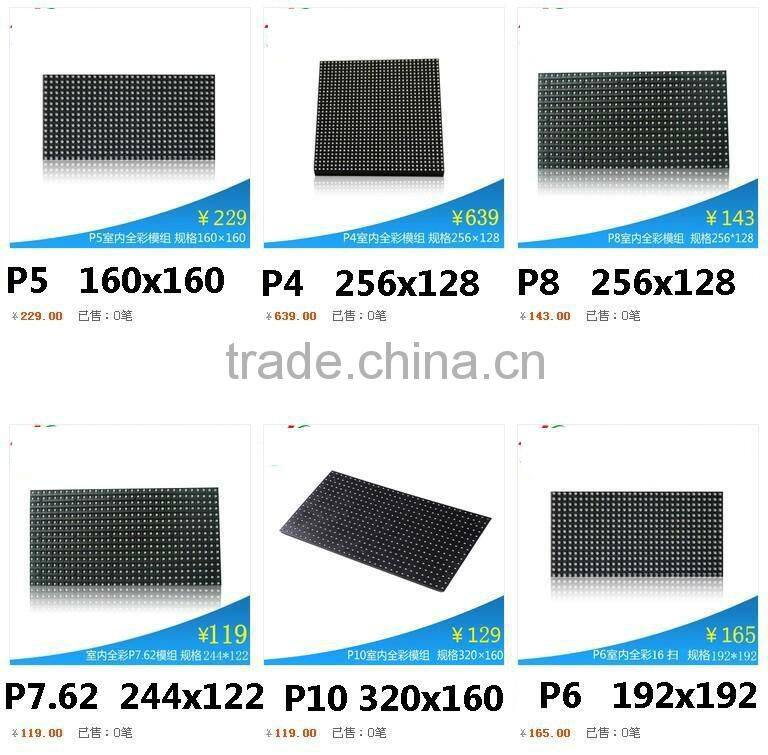

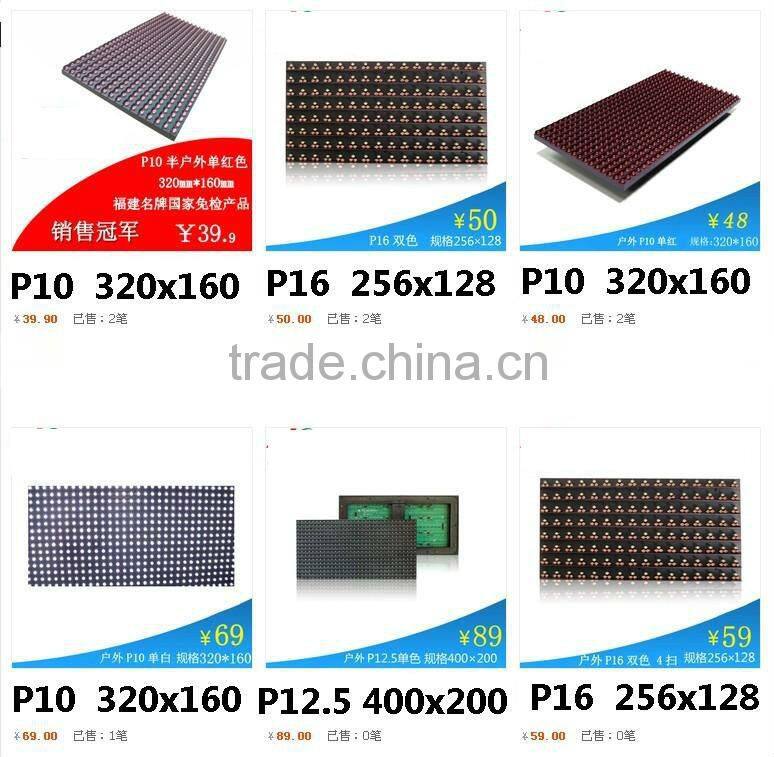

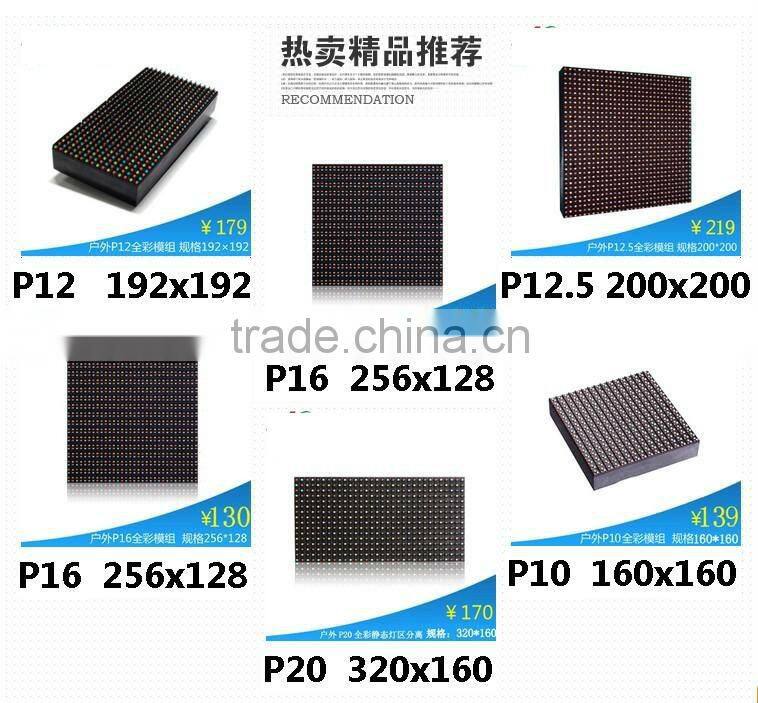

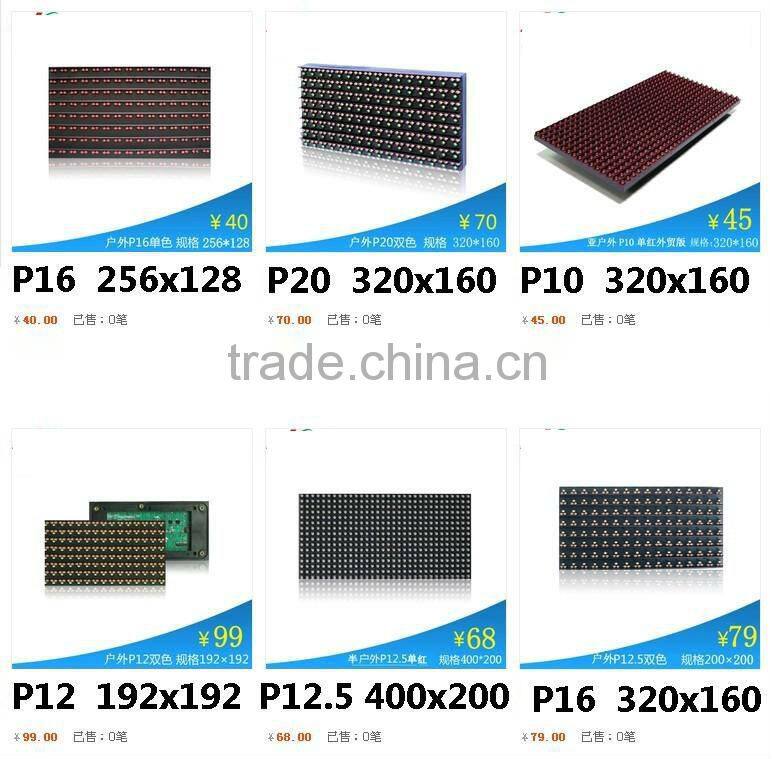

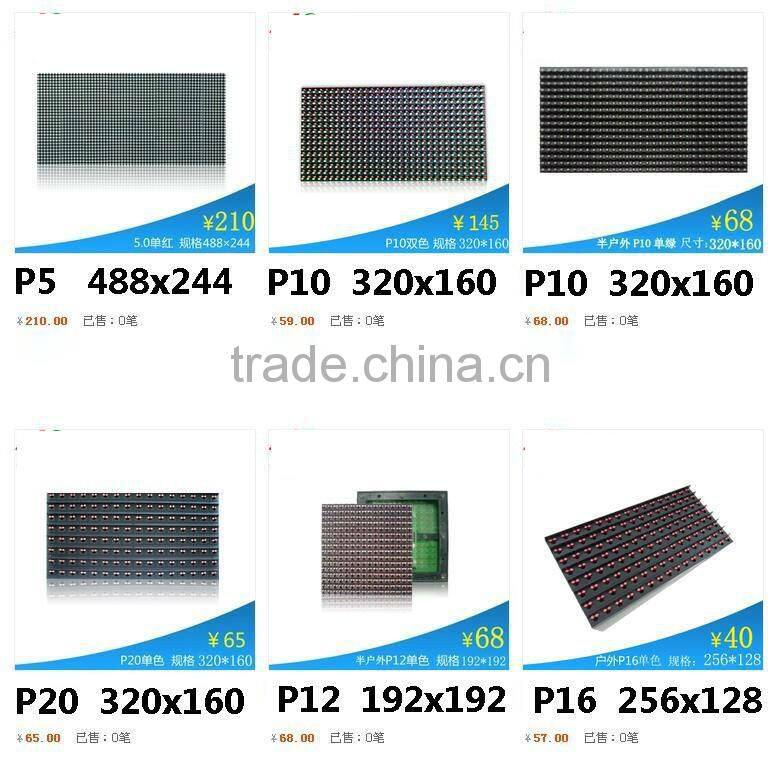

Optional:



Single color



DIP

P7.62mm  488mm x 244mm 64x32 pixels

P10mm     320mm x 160mm 32x16 pixels

P12mm     400mm x 200mm 32x16 pixels

P16mm     256mm x 128mm 16x8 pixels

P20mm     320mm x 160mm 16x8 pixels



Dot Matrix

P4mm       256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Dual color



DIP

P7.62mm   488mm x 244mm 64x32 pixels

P10mm      320mm x 160mm 32x16 pixels

P12mm      192mm x 192mm 16x16 pixels

P16mm      256mm x 128mm 16x8 pixels

P20mm      320mm x 160mm 16x8 pixels



Dot Matrix

P4mm       256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Tri-color



DIP

P10mm  160mm x 160mm 16x16 pixels

P12mm  192mm x 192mm 16x16 pixels

P16mm  256mm x 256mm 16x16 pixels



Dot Matrix

P4mm       256mm x 128mm 64x32 pixels

P4.75mm   304mm x 152mm 64x32 pixels

P7.62mm   488mm x 244mm 64x32 pixels







Full color



SMD

P1.8mm  230mm x 115mm  128x94 pixels

P2mm     240mm x 120mm 120x60 pixels

P3mm      192mm x 96mm   64x32 pixels

P4mm      256mm x 128mm 64x32 pixels

P5mm      160mm x 160mm 32x32 pixels

P6mm      192mm x 192mm 32x32 pixels

P7.62mm  244mm x 122mm 32x16 pixels

P10mm     320mm x 160mm 32x16 pixels



DIP

P10mm 160mm x 160mm 16x16 pixels

P10mm 320mm x 160mm 32x16 pixels

P10mm 320mm x 320mm 32x16 pixels

P12mm 192mm x 192mm 16x16 pixels

P16mm 256mm x 256mm 16x16 pixels

P16mm 256mm x 128mm 16x8 pixel

P20mm 320mm x 160mm 16x8 pixel

P25mm 200mm x 200mm 8x8 pixels

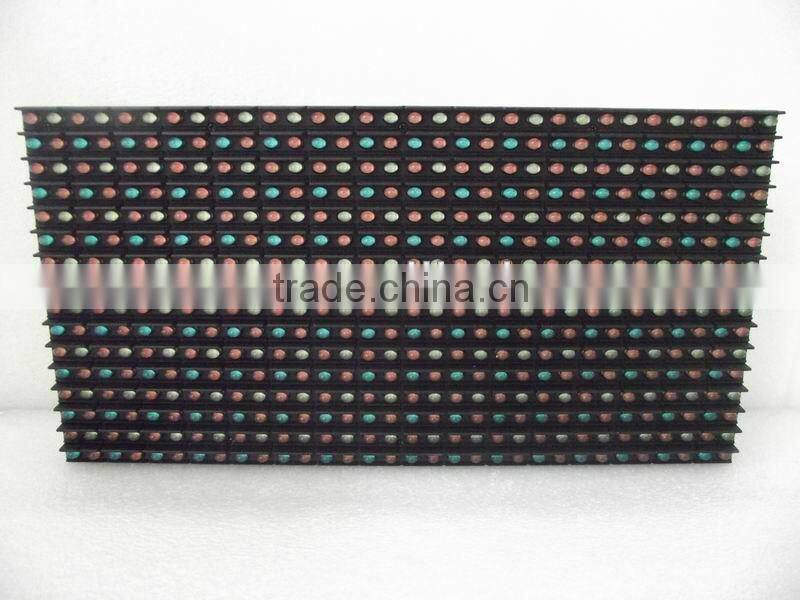

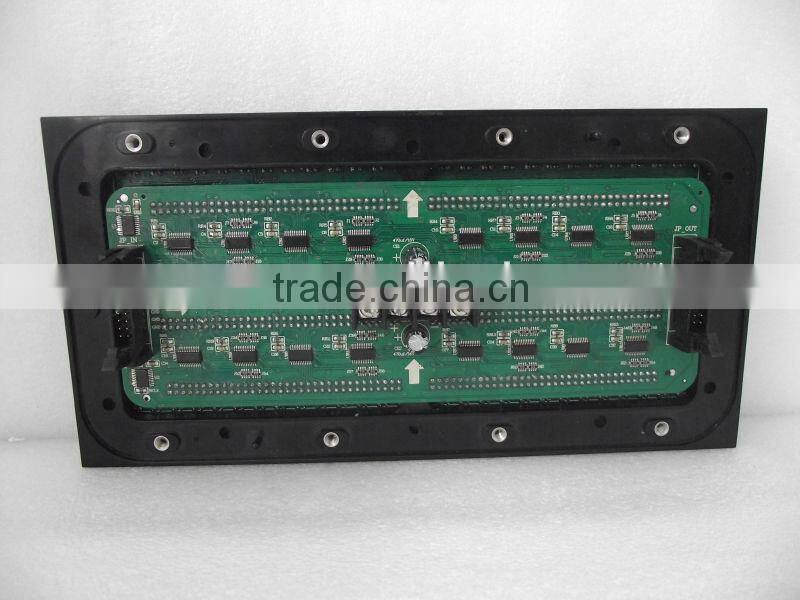

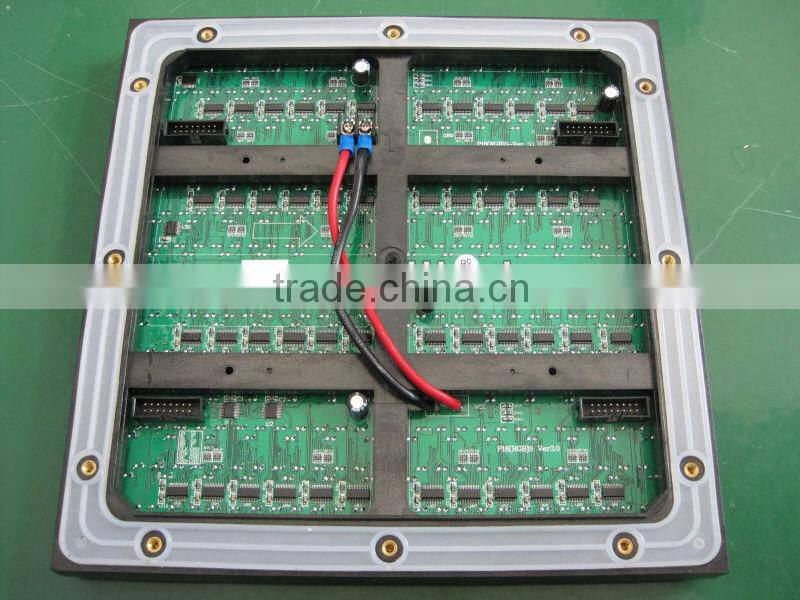

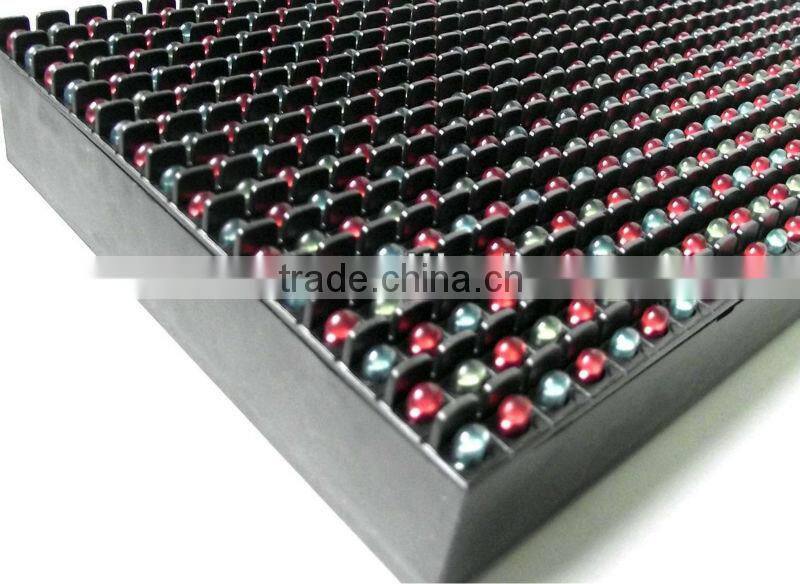

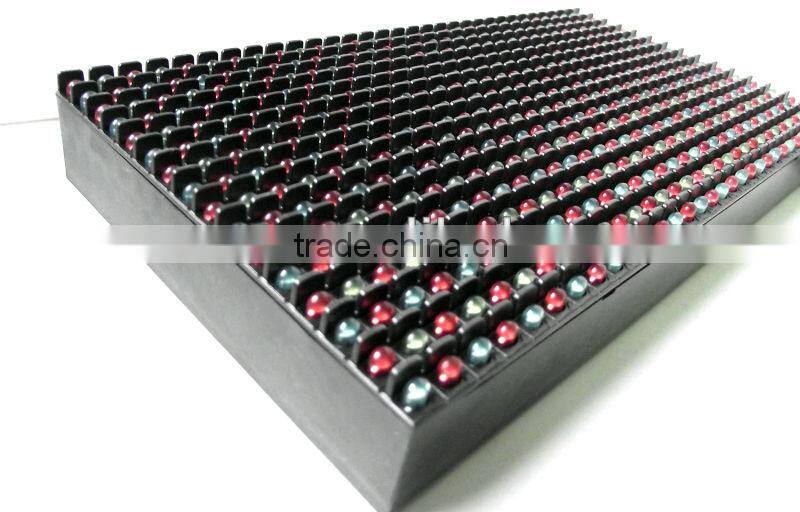

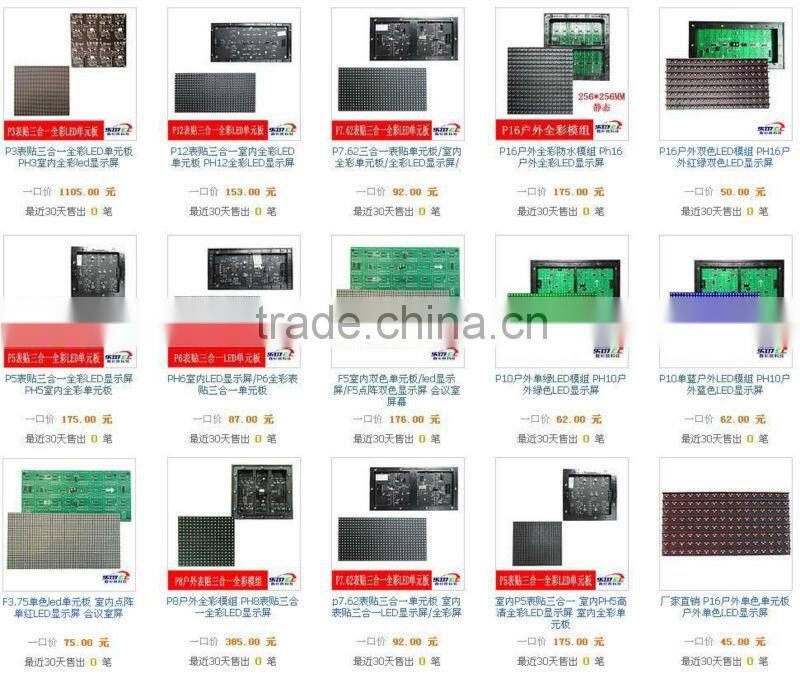

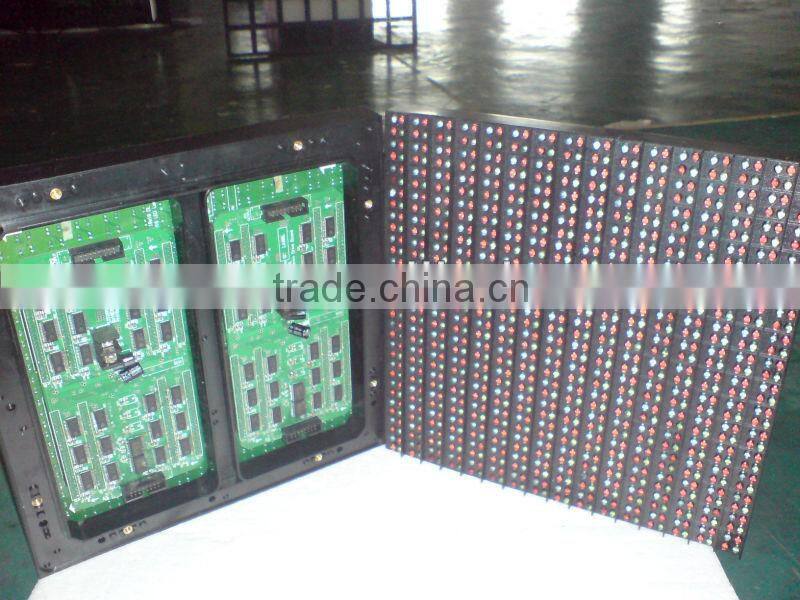

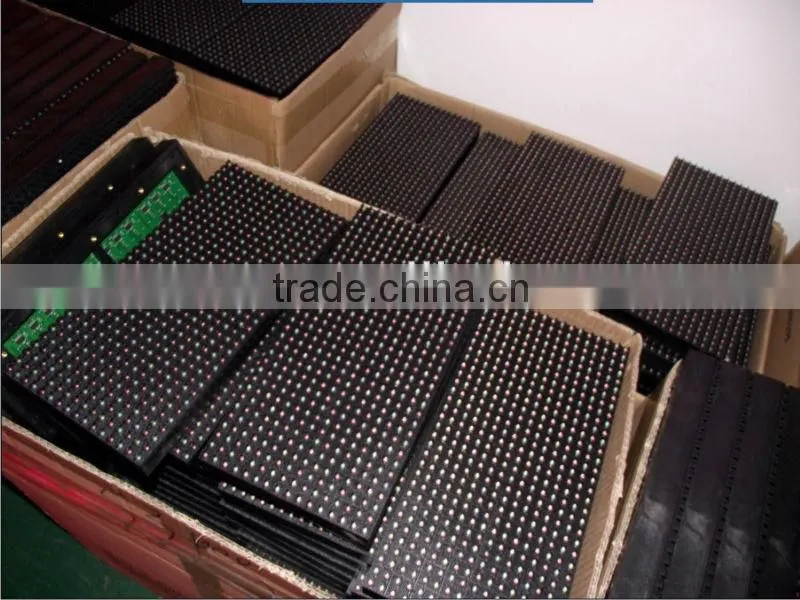

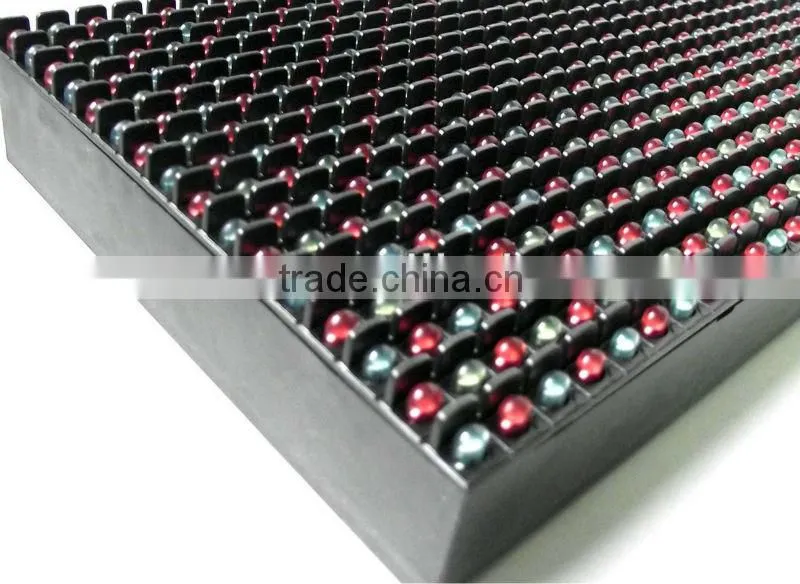

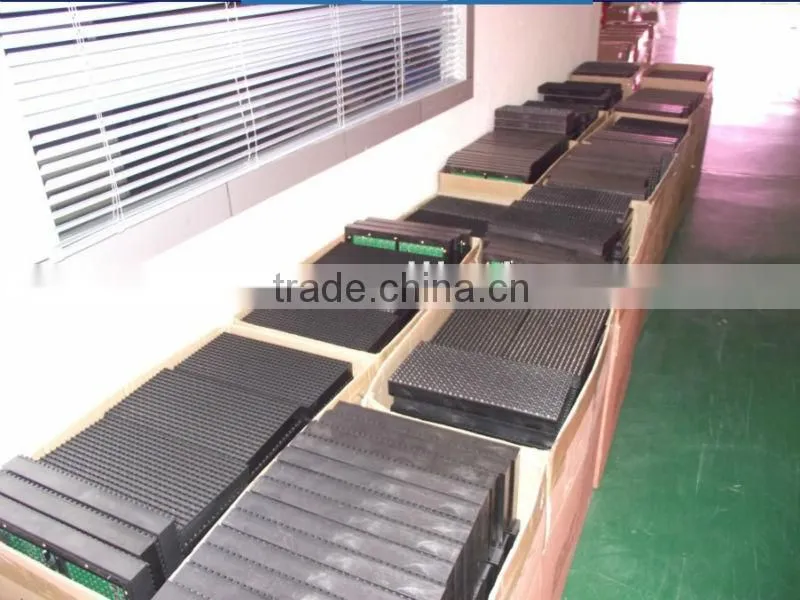

Picture / photo



 P16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display module



P16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display module



P16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display module



 P16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display module





 P16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display moduleP16 RGB 256 X 256 low power outdoor P16 led display module
