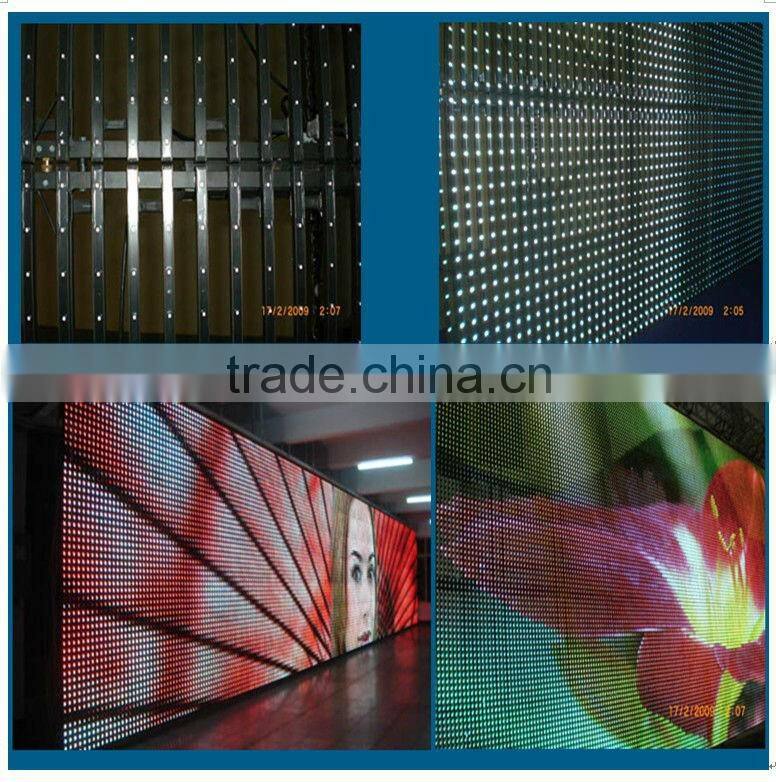

Indoor Led Screen Curtain, Ph12.5 Indoor Mesh Curtain Transparent Full Color LED Display

Model

P12 Mesh LED Display Screen

NO.

Items

Specifications

1

Pixel Pitch(MM)

12

2

Pixel Composition

SMD3in1

3

LED Encapsulation Type

SMD5050

4

LED Chip Sizes

12+13+13(RGB) Epistar + Silan + Nicha + Opto

5

Pixel Density(Dots/M2)

6944

6

Module Size(MM)

384 x 576

7

Module Resolution(Dots)

32 x 48

8

Cabinet Size(MM)

384 x 576

9

Cabinet Resolution(Dots)

32 x 48

10

Maximum Brightness

5000cd/sqm

11

Before Dot to Dot Correction

4500cd/sqm

12

After Dot to Dot Correction

4000cd/sqm

13

Brightness Adjustment Range

Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss

14

Color Temperature Adjustable

3200K - 10000K

15

Best View Distance(M)

10m - 180m

16

Horizontal View Angle

120 deg

17

Vertical View Angle

60 deg

18

Signal Processing

16bit

19

Control Mode

Synchronization

20

Driving Mode

Static Constant Current

21

Contrast

3000:1

22

Colors

549 Trillion Billion

23

Gray scale per color

26720 level

24

Video Frame Frequency

More than 60HZ

25

Refresh Rate

More than 3000HZ

26

Lifetime

100000 Hours

27

Maximum Power Consumption

Less than 200 w

28

Average Power Consumption

Less than 130 w

29

Cabinet Weight(without Steel Structure)

25 Kg

30

Compatible Signals( with video processor)

X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP

31

Working Voltage

100-240V/AC 50/60HZ

32

Environment Temperature

–20 deg / +60 deg

33

Storage Temperature

–40 deg / +60 deg

34

IP Protection Rate

Indoor Use

35

Screen Surface Evenness

Less than 0.5mm

36

Working Humidity

10-99%

37

Storage Humidity

10-99%

38

Malfunction Dot Rate

Less than 0.0001

39

Display Screen Signals

RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

40

Wind Resistance

Level 12

41

Shock Resistance

Level 8
