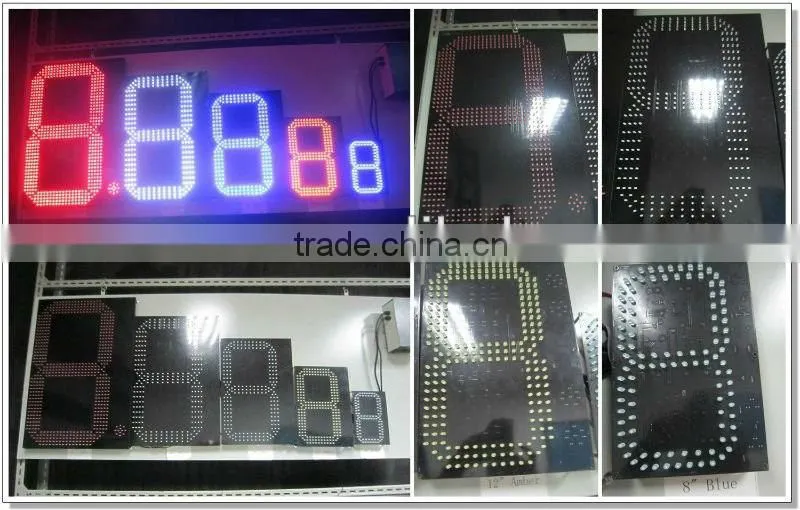

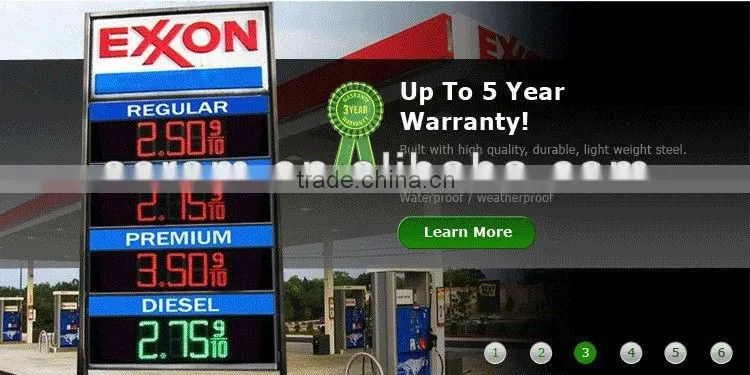

outdoor led gas price sign
1 Size: 8" 10" 12" 16" 20" 24" 36" 48" 60" 72" and etc. We can customize the clients’ special request.
2 Digital format on the sign: 8.888 (88.88, 888.8) / 8.8888(88.888)/ 8.88 9 / 8.88 9/10 etc
3 Display Color: Red, Amber, Green, Blue, White, dual color, full color
4 High Brightness more than 10000mcd (traffic led)
5 Horizontal Viewing Angle: 100° (traffic led), generally, people will not see the signs directly.
6 Working Temp: -40 Degrees Celsius ~ + 85 Degrees Celsius
7 Waterproof rate: IP68

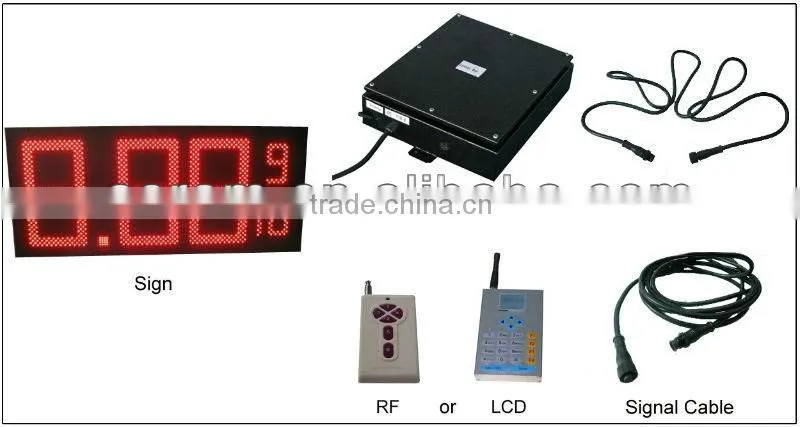

8 Wireless control: RF/LCD (enclosed pictures below), wireless control distance for regular one is 100m, and can be customized.
9 Cabinet housing material: Iron/Aluminum
10 Structure: control box separated from the led sign (Iron/Aluminum cabinet and transparent PC)
11 Digital height: 5" (127mm), 6" (152.4mm.), 8" (203.2mm), 10" (254mm), 12" (304.8mm), 16" (406.4mm) ……
12 Lines format: 5"--(2 lines), 6"--(2 lines), 8"--(2 lines), 10"--(2 lines), 12"--(3 lines), 16"--(3 lines) 20"(red, yellow 5 lines, green 4 lines, 24"(red, yellow 5 lines, green 4 lines)……
13 Life span: ≥100,000 hours
14 Aspect Ratio: (height/width)=2/1
15 Segment: 7 segments per digital number "8"
16 Input Voltages: AC120V/220V
The Parameter Of LED Gas Price Sign
(LED Gas Price Changer/LED Gas Price Change Unit/LED Gas Price Display)
LED lamp:
High Brightness
(traffic led): 1200 mcd ≤ Red ≤ 1500 mcd(20mA) (TAI)
1800 mcd ≤ Green ≤ 2200 mcd(20mA) (TAI)
800 mcd ≤ Yellow ≤ 1000 mcd(20mA) (TAI)
450 mcd ≤Blue ≤600 mcd(20mA) (TAI)
Wavelength: Red traffic Led 620~625mm
Yellow traffic Led 580~585mm
Green traffic Led 502~505mm
Blue traffic Led 462~467mm
Horizontal Viewing Angle: 100° (traffic led)
Vertical Viewing Angle: 40° (traffic led)
Digits Features:
Aspect Ratio: 7 segments per digital number
Drive Mode: ( height : width)=2:1
Voltage: static constant current
Digital height: 5”(127mm),6”(152.4mm.),8”(203.2mm),10”(254mm),12”(304.8mm),16”(406.4mm)… …
Lines format: 5”(red, green, yellow,2 lines)
6″(red, green, yellow,2 lines)
8” (red, green, yellow,2 lines)
10” (red, green, yellow,2 lines)
12” (red, green, yellow,3 lines)
16”(red, yellow 4 lines, green 3 lines)
20″(red, yellow 5 lines,green 4 lines)
24"(red, yellow 5 lines,green 4 lines)
36"
48"
PCB board: bottom board is black
Gas Price Sign Features:
Display Format: 8.888, 8.88 9/10, 8.889, 88.888 etc
Control way: remote controller
Remote control range: ≤120m
Brightness: Brightness can be automatic adjustment
Working Temp:
Input Voltage: AC120V/220V
Waterproof level: IP65
Structure: control box seperated from the cabinet, Iron/Aluminum cabinet and transparent PC
Life span: ≥100,000 hours
Maintenance warranty: 1 year, lifetime maintenance
Accessories:
Power: MW 12V 12.5A
8 core signal cable: 160cm
2 core power cable: 160cm

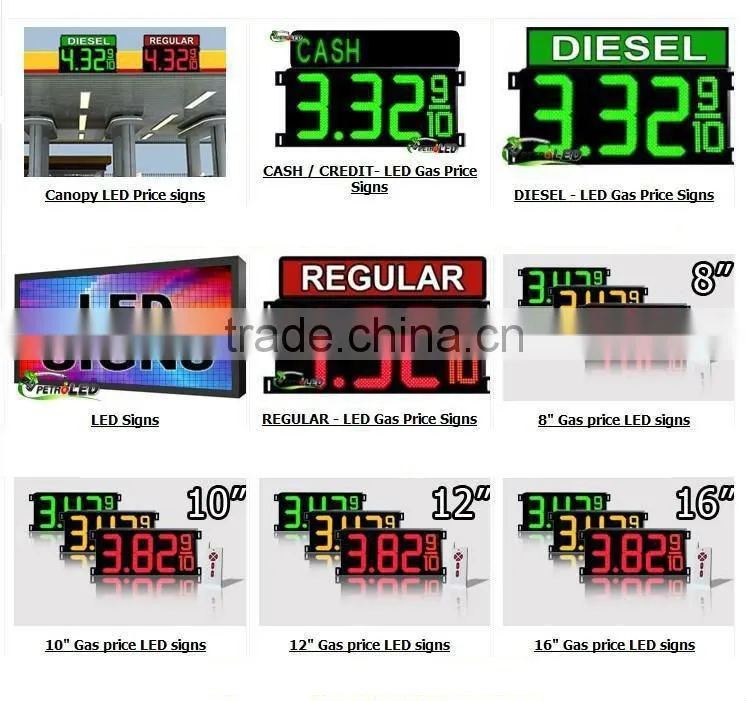

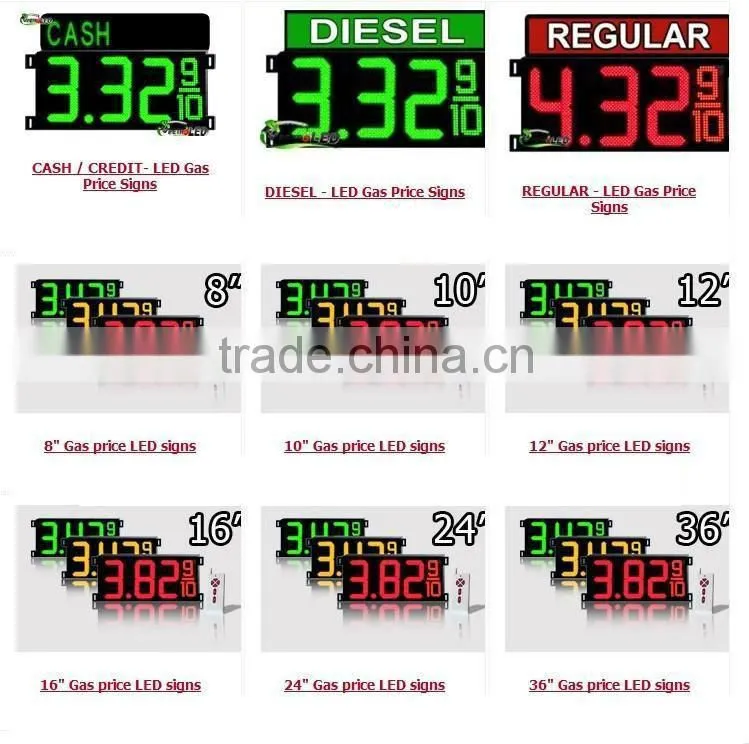

More types
Optional:
Size: 5 Inch, 6 Inch, 8 Inch, 10 Inch, 12 Inch, 16 Inch, 18 Inch, 20 Inch, 24 Inch, 27 Inch, 36 Inch, 48 Inch.

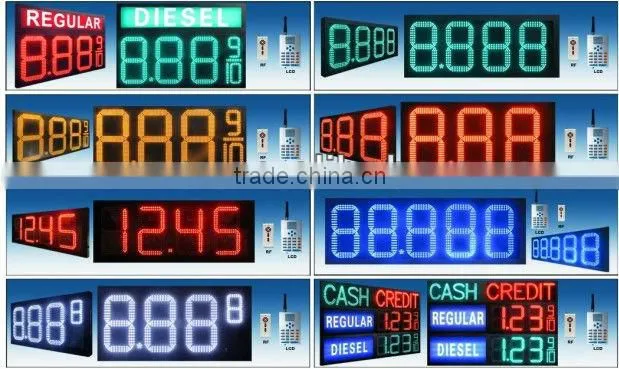

Format: 8.888 88.88 888.8 8.889 8.889/10 8.88 88.8 88 8 ETC
Color: Red, Blue, Green, Yellow, White

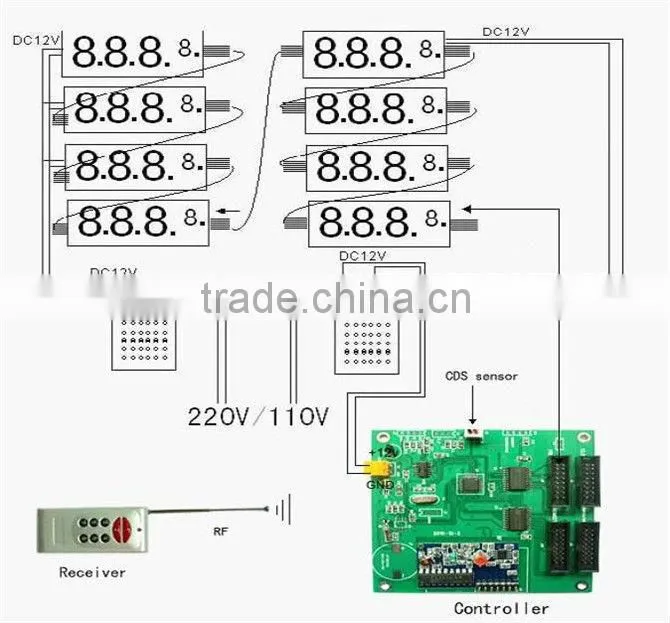

Control system: RS232 interface, RF/LCD wireless controller
