Specification:
Model |
P6 Indoor LED Display Screen |
|
NO. |
Items |
Specifications |
1 |
Pixel Pitch(MM) |
6 |
2 |
Pixel Composition |
SMD3in1 |
3 |
LED Encapsulation Type |
SMD3528 |
4 |
LED Chip Sizes |
12+13+13(RGB) Epistar + Silan + Nicha + Opto |
5 |
Pixel Density(Dots/M2) |
27777 |
6 |
Module Size(MM) |
192 x 96 |
7 |
Module Resolution(Dots) |
32 x 16 |
8 |
Cabinet Size(MM) |
576 x 576 |
9 |
Cabinet Resolution(Dots) |
96 x 96 |
10 |
Maximum Brightness |
More than 3000cd/sqm |
11 |
Before Dot to Dot Correction |
More than 2000cd/sqm |
12 |
After Dot to Dot Correction |
More than 1700cd/sqm |
13 |
Brightness Adjustment Range |
Manually, Auto Stepless Continuous Adjustment, 14 levels Adjustment without Gray Scale Loss |
14 |
Color Temperature Adjustable |
3200K - 10000K |
15 |
Best View Distance(M) |
6m - 42m |
16 |
Horizontal View Angle |
12 deg |
17 |
Vertical View Angle |
60 deg |
18 |
Signal Processing |
16bit |
19 |
Control Mode |
Synchronization |
20 |
Driving Mode |
1/8 Scan |
21 |
Contrast |
1000:1 |
22 |
Colors |
549 Trillion Billion |
23 |
Gray scale per colors |
26720 level |
24 |
Video Frame Frequency |
More than 60HZ |
25 |
Refresh Rate |
More than 1200HZ |
26 |
Lifetime |
100000 Hours |
27 |
Maximum Power Consumption |
Less than 900 w |
28 |
Average Power Consumption |
Less than 450 w |
29 |
Cabinet Weight(without Steel Structure) |
25 Kg |
30 |
Compatible Signals(with video processor) |
X Composite, X Component, RGB,SDI,HDSDI,DVI,AV, S-Video, VGA, HDMI, DP |
31 |
Working Voltage |
100-240V/AC 50/60HZ |
32 |
Environment Temperature |
–20 deg / +60 deg |
33 |
Storage Temperature |
–40 deg / +60 deg |
34 |
IP Protection Rate |
Indoor Use |
35 |
Screen Surface Evenness |
Less than 0.5mm |
36 |
Working Humidity |
10-99 percent |
37 |
Storage Humidity |
10-99 percent |
38 |
Malfunction Dot Rate |
Less than 0.0001 |
39 |
Display Screen Signals |
RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION |
40 |
Wind Resistance |
Level 12 |
41 |
Shock Resistance |
Level 8 |
System connection:

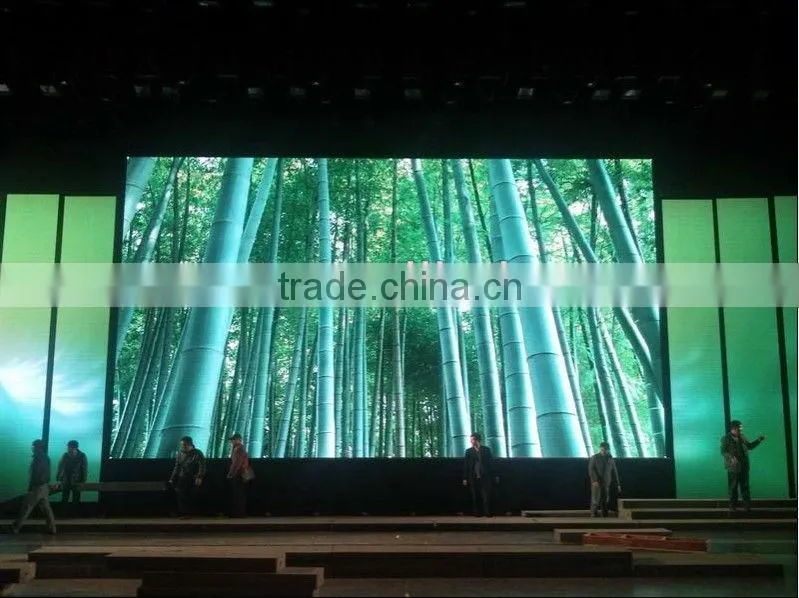

Project Name: Stage Background LED display in Malaysia ;
Product Model: PH6MM SMD;
Project Area: Malaysia;
Screen Size: 20 sqm;
Applicable environment: Commercial LED display; Indoor Background Advertising LED Display;
Time: 2008
Project Name: Indoor Rental led display project in Vietnam.
Application Environment: Rental led display, Outdoor led advertising display, Indoor stage led screen
Product Name: PH7.62MM SMD
Pixel Pitch: 7.62 mm
Screen Size: 65 Sq.m
Installation Address: Vietnam
Installation Time: 2010
Project Name: Indoor Rental led display project in Vietnam Philippines.
Application Environment: Rental led display, led Commercial advertising display, Indoor stage led screen
Product Name: PH5MM SMD
Pixel Pitch: 5 mm
Screen Size: 65 Sq.m
Installation Address: Philippines
Installation Time: 2009
