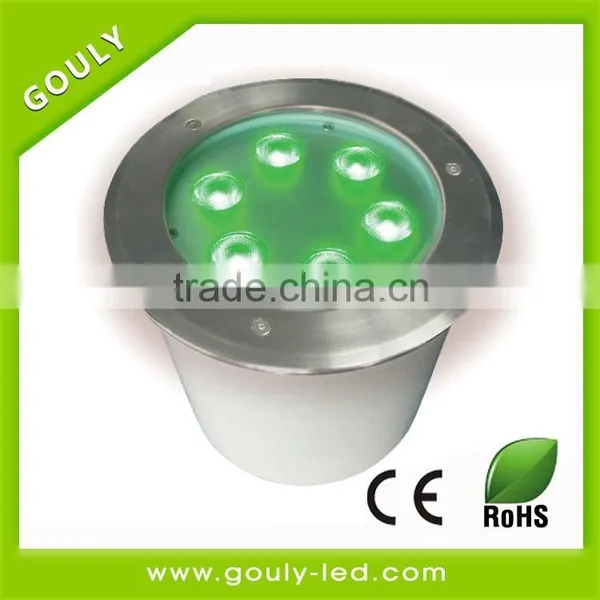

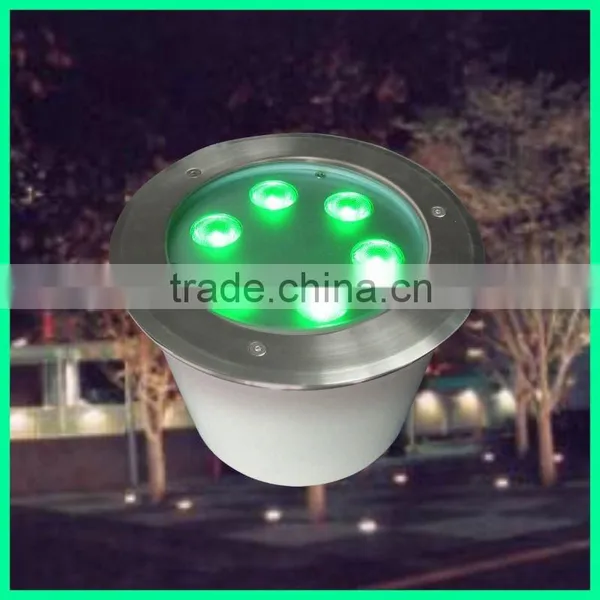

8W led underground lighting solar rgb led underground light IP67
- 10000 Piece / Pieces per Month
- Yantian
- T/T D/P D/A Credit Card
- Outdoor inground spotlight waterproof ip66 housing stainless steel rgb recessed underground light
- Lighted trading card stand floor lamps standing piano led corner lamp led floor light for the floor
- Stand floor light led under home standard floor led light waterproof inground
- Giangdong Led Solar Garden Lights Outdoor Lights Buried lamp Lighting for Lawn Patio Pathway Yard
- Newish IP65 Stainless Steel Stake Waterproof Luce Giardino Patio Ground Street Garden Wall Solar Led Outdoor Buried lights
- Outdoor LED Solar Garden Lights Solar Motion Sensor Light Solar underground light
Product Details
LED Light Source: | LED | Warranty(Year): | 3 | Input Voltage(V): | DC12V |
Lamp Power(W): | 8 | Lamp Luminous Flux(lm): | 582 | Lamp Luminous Efficiency(lm/w): | 8 |
Color Temperature(CCT): | Pure White | Working Temperature(℃): | -20, 45 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | Certification: | CE | Place of Origin: | Guangdong, China |
Brand Name: | Gouly | Model Number: | IN6x1W |
Product Description
Specifications
IN 9x3LED underground lamp IP67
1.Voltagle: 12VDC
2.Power:26.4W
3.IP rank: IP67
4.Color: Single color.
Single color and RGB color LED underground light fiexture:
1.Polished stainless steel panel enclosure, small size, good heat dissipation, high-quality waterproof connectors, silicone seal, tempered glass; shell is made of aluminum alloy lamp body and the overall molding process (optional stainless steel), to ensure a good cooling effect with 8mm tempered glass mirror , under pressure waterproof rating IP68 .
2.Circuit with overcharge and over discharge protection, so long battery life, make the product a long period of stability and good working condition.
3.High-performance nickel-cadmium batteries. With large capacity, high efficiency, safety exit signs Product Overview: Fully automatic fire emergency lights when AC power is normal, automatic battery charging implementation of the work, when the AC power supply due to failures can not be normal when the lights in the second of time, converted into a state of emergency standby power to work, and always so marked to the right to, and double-sided, etc.
4.Shell lamps,panel selection of non-combustible materials, the internal temperature is greater than the connection with the fire wire 125 °C .
5.Energy efficient light source LED, high brightness, low energy consumption, radiation area, and long lifetime.
9*3W RGB LED underground lamp applications:
LED lights are widely used in underground plaza, outdoor parks, recreation areas and other outdoor lighting. Park green, lawns, plazas, courtyards, flower beds, decorative pedestrian street, waterfalls, fountains, underwater lighting, and other places, in order to add luster to life.
Technical parameters
LED underground light specification:(RGB color)
Part. No. | IN1X3 | IN3X3 | IN6X3W | IN9X3W |
Rated Voltage(V) | DC12 | DC12V | DC24V | DC24V |
Maximum power(W) | 3.8 | 9 | 14.4 | 26.4 |
Maximum Current(mA) | 320 mA | 750MA | 600 | 1100 |
Controlling system | 4-wire and 3-loop controller,Simple DMX controller | |||
Standard lens | 25°/45° | |||
Light source | RGB3in1 3W LED | |||
White light flux(LM) | 52 | 140 | 254 | 441 |
Standard length of left wires | 250mm | |||
IP rank | IP67 |
LED underground light specification:(Single color)
Part. No. | IN1X1W | IN3X1W | IN6X1W | IN9X1W |
Rated Voltage(V) | 12 | 12 | 24 | 24 |
Maximum power(W) | 3.6 | 4.2 | 8 | 14.8 |
Maximum Current(mA) | 350 | 350 | 350 | 350 |
Standard lens | 25°/45° | |||
Light source | 1W single color LED | |||
luminous intensity(CD) (eg. White color) | 232 | 380 | 582 | 725 |
The standard length of the external cable | 250mm | |||
Working temperature | -20°C~45°C | |||
IP rank | IP67 |
1*3W-LED series
Part. No. | IN1X3W | IN3X3W | IN6X3W | IN1X3W |
Rated Voltage(V) | 12 | 12 | 24 | 24 |
Maximum power(W) | 5.4 | 7.2 | 15 | 21.6 |
Maximum Current(mA) | 600 | 600 | 600 | 450 |
Standard lens | 25°/45° | |||
Light source | 3W single color LED | |||
luminous intensity(CD) (eg. White color) | 325 | 712 | 1250 | 1286 |
The standard length of the external cable | 250mm | |||
Working temperature | -20°C~45°C | |||
IP rank | IP67 |
1.Dimension diagram
1*1W&1*3W (Round flat cover) (IN1X1W, IN1X3W)
Certification:
Why Choose GOULY LED Limited ?
Quality Control:
100% of the lamps will be tested and keep lighting for 12 hours to test its quality reliability, Then after it is cool we again test 100% of the lamps to see if it still work well. Each lamp should pass all these QC procedures before shipping to customer.
Order infomation
MOQ: 20pcs
Trade term: EXW / FOB Shenzhen
Delivery time: 3-7 working days for sample order, 7-15 working days for mass order.
Warranty
Two years since the date of purchase.
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, SMART will provide paid maintance within warranty period.
Trade Terms:
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union and Paypal for small amount.
2. Lead time: normally in 5~15 days after deposit received
3. Sample policy: Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: Shenzhen , China
5. Discounts: We offer discount for big quantity.
Delivery detail:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~7 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language.
3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
