Specifications
IN6x3w led ubderground light:1.Single color.
2.6x3w
3.7-15days delivery time
4.factory price
Specifications

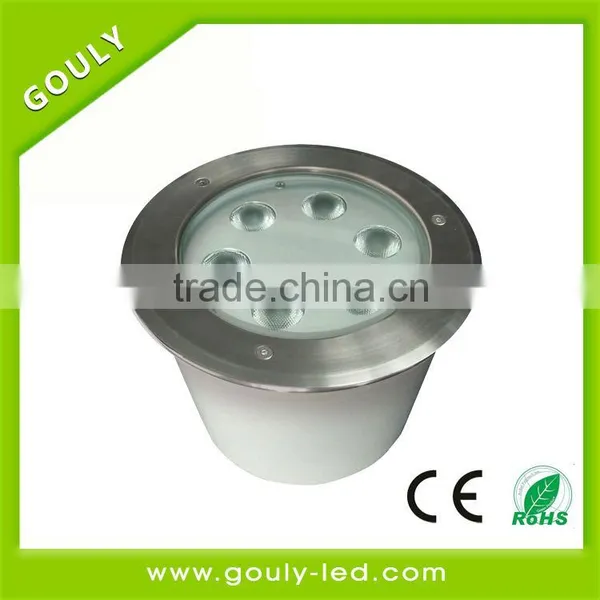

IN 9x3LED underground lamp IP67
1.Voltagle: 12VDC
2.Power:26.4W
3.IP rank: IP67
4.Color: Single color.
Single color and RGB color LED underground light fiexture:
1.Polished stainless steel panel enclosure, small size, good heat dissipation, high-quality waterproof connectors, silicone seal, tempered glass; shell is made of aluminum alloy lamp body and the overall molding process (optional stainless steel), to ensure a good cooling effect with 8mm tempered glass mirror , under pressure waterproof rating IP68 .
2.Circuit with overcharge and over discharge protection, so long battery life, make the product a long period of stability and good working condition.
3.High-performance nickel-cadmium batteries. With large capacity, high efficiency, safety exit signs Product Overview: Fully automatic fire emergency lights when AC power is normal, automatic battery charging implementation of the work, when the AC power supply due to failures can not be normal when the lights in the second of time, converted into a state of emergency standby power to work, and always so marked to the right to, and double-sided, etc.
4.Shell lamps,panel selection of non-combustible materials, the internal temperature is greater than the connection with the fire wire 125 °C .
5.Energy efficient light source LED, high brightness, low energy consumption, radiation area, and long lifetime.

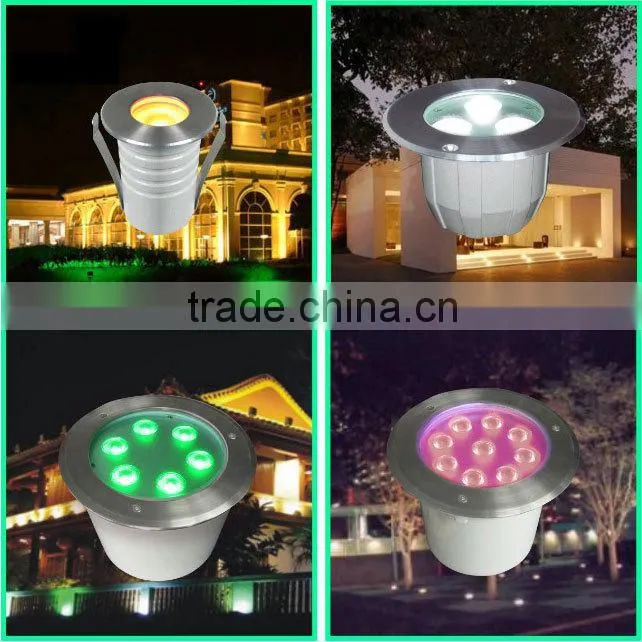

9*3W RGB LED underground lamp applications:
LED lights are widely used in underground plaza, outdoor parks, recreation areas and other outdoor lighting. Park green, lawns, plazas, courtyards, flower beds, decorative pedestrian street, waterfalls, fountains, underwater lighting, and other places, in order to add luster to life.
Technical parameters
LED underground light specification:(RGB color)
Part. No. |
IN1X3 |
IN3X3 |
IN6X3W |
IN9X3W |
Rated Voltage(V) |
DC12 |
DC12V |
DC24V |
DC24V |
Maximum power(W) |
3.8 |
9 |
14.4 |
26.4 |
Maximum Current(mA) |
320 mA |
750MA |
600 |
1100 |
Controlling system |
4-wire and 3-loop controller,Simple DMX controller |
|||
Standard lens |
25°/45° |
|||
Light source |
RGB3in1 3W LED |
|||
White light flux(LM) |
52 |
140 |
254 |
441 |
Standard length of left wires |
250mm |
|||
IP rank |
IP67 |
|||
LED underground light specification:(Single color)
Part. No. |
IN1X1W |
IN3X1W |
IN6X1W |
IN9X1W |
Rated Voltage(V) |
12 |
12 |
24 |
24 |
Maximum power(W) |
3.6 |
4.2 |
8 |
14.8 |
Maximum Current(mA) |
350 |
350 |
350 |
350 |
Standard lens |
25°/45° |
|||
Light source |
1W single color LED |
|||
|
luminous intensity(CD) (eg. White color) |
232 |
380 |
582 |
725 |
The standard length of the external cable |
250mm |
|||
Working temperature |
-20°C~45°C |
|||
IP rank |
IP67 |
|||
1*3W-LED series
Part. No. |
IN1X3W |
IN3X3W |
IN6X3W |
IN1X3W |
Rated Voltage(V) |
12 |
12 |
24 |
24 |
Maximum power(W) |
5.4 |
7.2 |
15 |
21.6 |
Maximum Current(mA) |
600 |
600 |
600 |
450 |
Standard lens |
25°/45° |
|||
Light source |
3W single color LED |
|||
|
luminous intensity(CD) (eg. White color) |
325 |
712 |
1250 |
1286 |
The standard length of the external cable |
250mm |
|||
Working temperature |
-20°C~45°C |
|||
IP rank |
IP67 |
|||

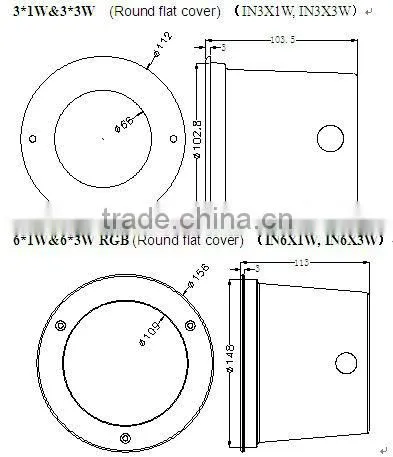

1.Dimension diagram
1*1W&1*3W (Round flat cover) (IN1X1W, IN1X3W)
