Help CenterLed Tri-proof Light 30w 40w 60w 80w Lp66 Smd2835 TB-80W
Related Products
-
China Suspended Lamp Alumium 30w Linear LightUS$ 24 - 49MOQ: 1 Piece -
Waterproof IP67 1x3W Outdoor LED Underground LightUS$ 12 - 15MOQ: 1 Piece
-
12v Led Underground Lighting Solar Rgb Led Underground LightUS$ 56.1 - 64.5MOQ: 5 Pieces
-
9w Led Underground Light IP65 Underground Light 9LED Higt Power Underground LightUS$ 45.8 - 46MOQ: 1 Set
-
3W 9W Outdoor Led Inground Lights IP65US$ 32 - 34MOQ: 1 Set
The advantages of our LED Tri-proof Light:

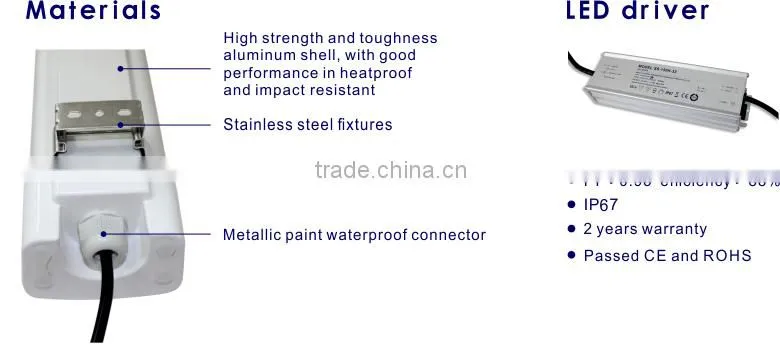

1. Rugged light body :light body processed with aluminum extrusion and impact resistance IK06 to ensure its durabl protective performance as well as good heat dissipation performance
2. Waterproof efficient design :light body and PC shell are connected with high elastic rubber ring with IP66
stainless steel clip
3. Well-formed: The integration design of lamp and lantern helps reduce size enhancing the sense of space; sliding groove improving the flexibility of mounted position
4. Safe guaranteed power supply :Input voltage AC90-265V , Built-in isolated power supply, CE, ROHS certification
5. Adopting high-intensitive PC cover with performance of anti-corrosion explosion waterproof, No RF interference, No radiation, low power consumption, high tensile, Maintenance-free, Easy installation etc.

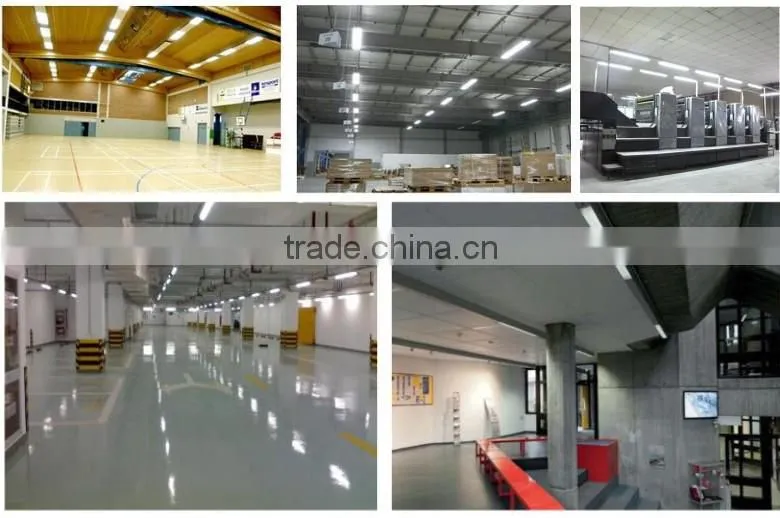

Application
Workshop, factory , warehouse, highway toll station ,gas station ,supermarket , exhibition halls, stadiums etc.
Parameter :
Part No. |
TP-30W |
TP-40W |
TP-60W |
TP-80W |
Lumens |
2200LM |
3000LM |
4400LM |
5800LM |
Power |
30W |
40W |
60W |
80W |
Size (mm)L*W*H |
600*89*74MM |
900*89*74MM |
1200*89*74MM |
1500*89*74MM |
LED Quantity |
192PCS 2835 |
240PCS 2835 |
336PCS 2835 |
432PCS 2835 |
Input Voltage(V) |
85-265v |
|||
IP Rank |
IP66 |
|||
LED efficiency: |
90-100lm/W |
|||
CRI |
>80 |
|||
Power factor |
(PF):>0.95 |
|||
Material |
6063-t5+PC |
|||
Color temperature(CCT) |
6000-6500K |
|||
LED Life |
>50000Hrs |
|||

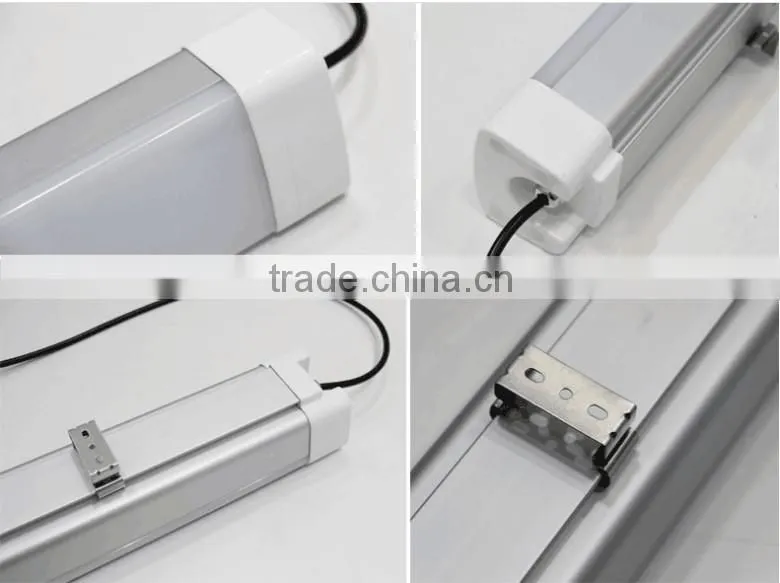

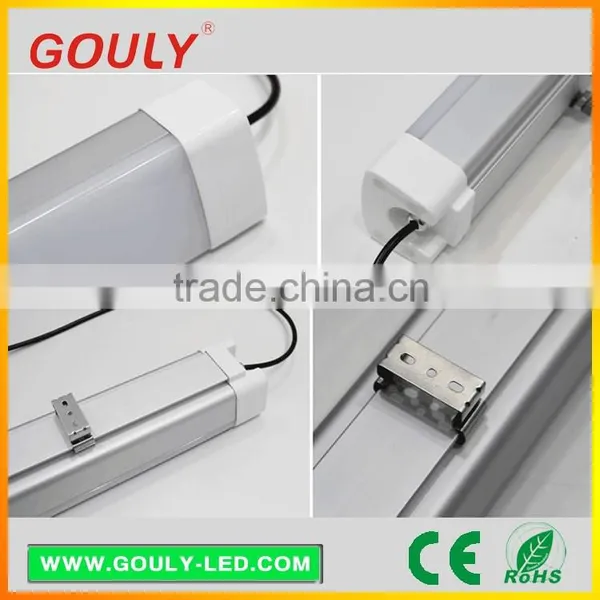

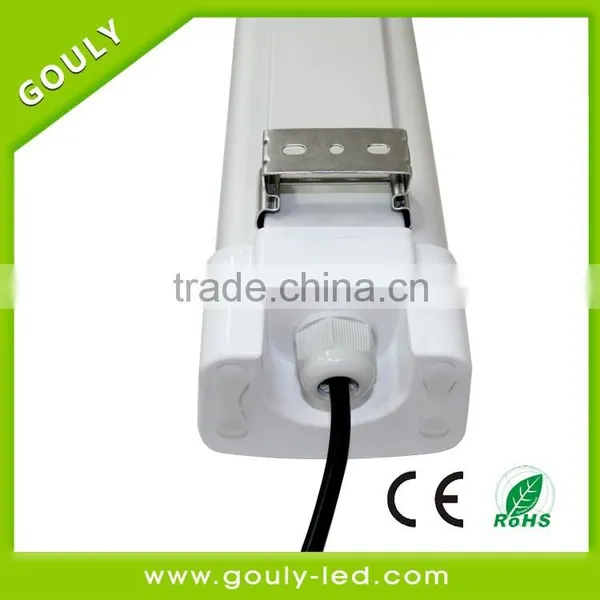

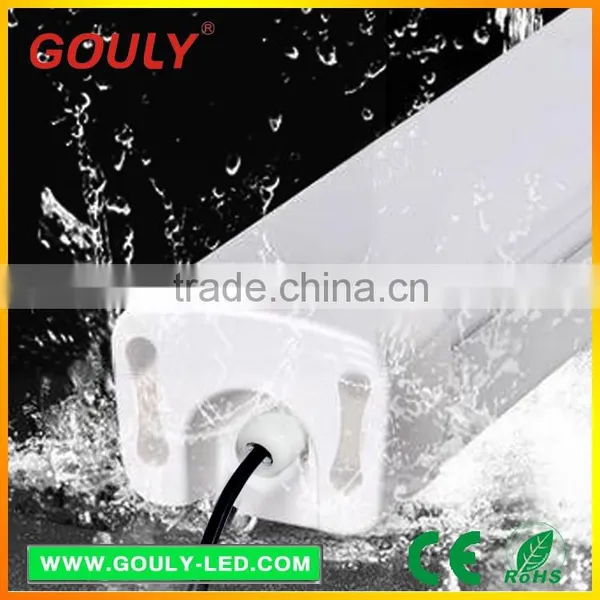

Product Picture

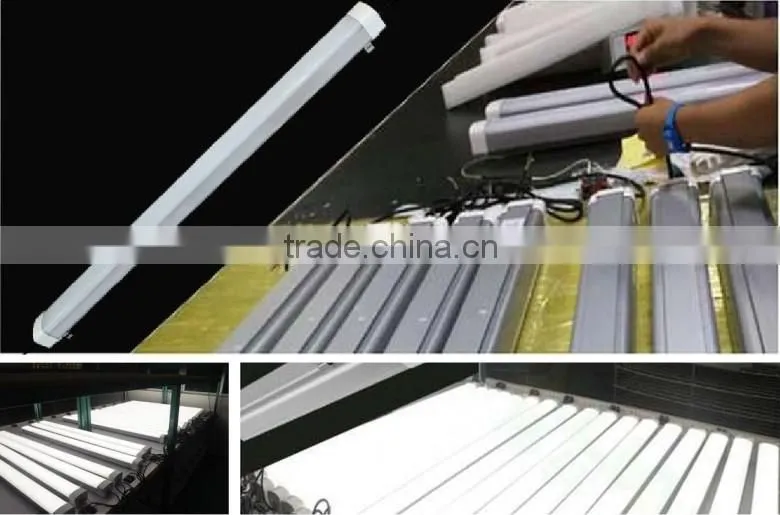

Production line
Dimension:(mm)

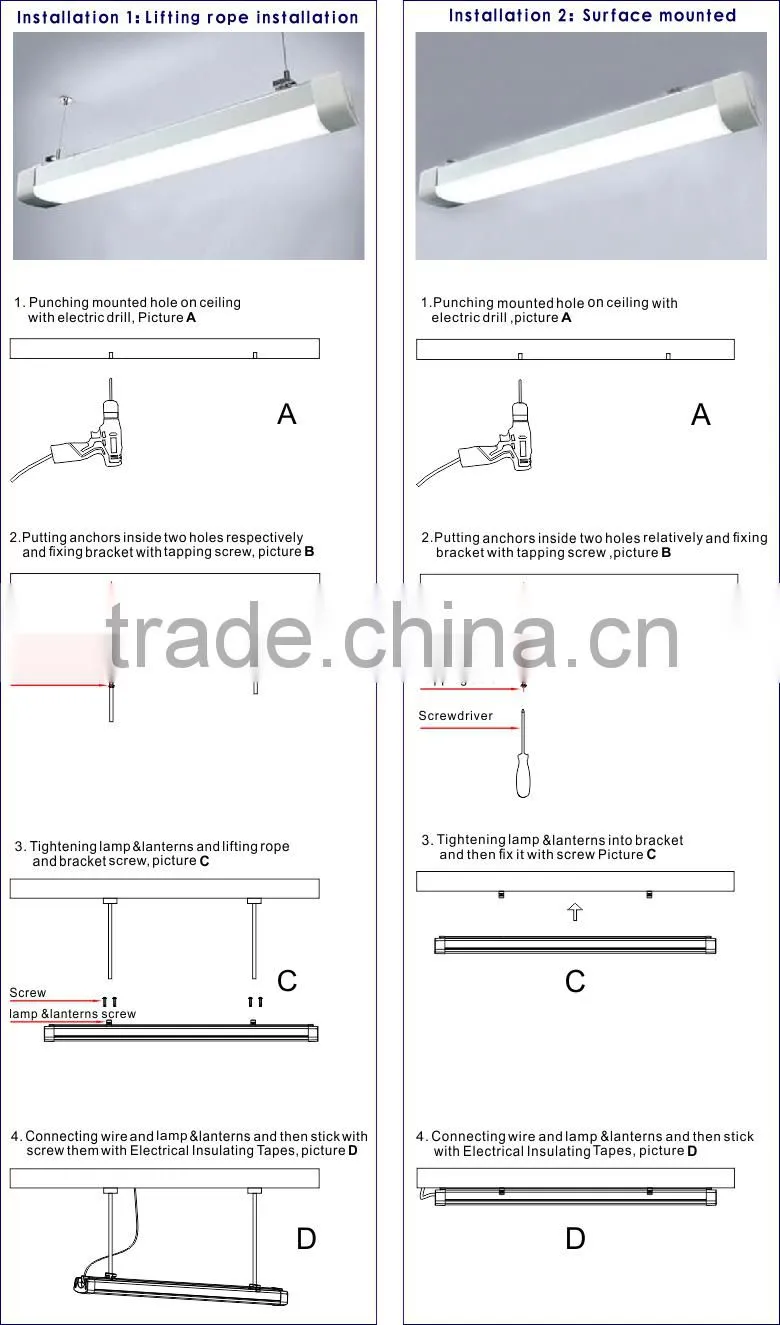

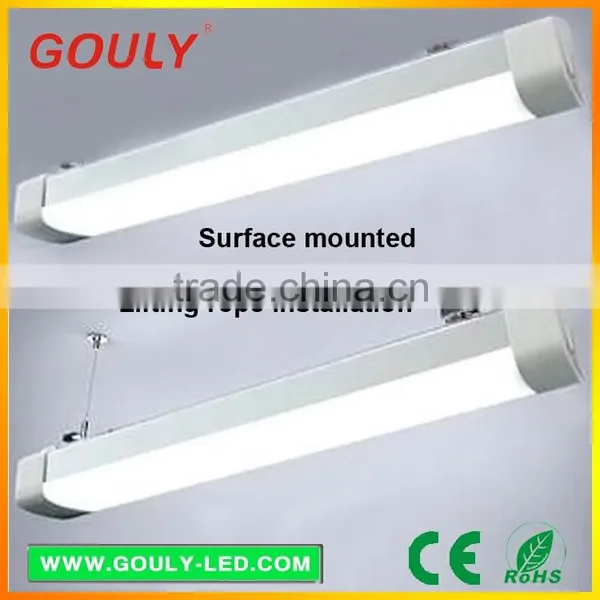

Installations
Attentions:
Working temperature is -40C-+ 50C,or it will have negative influence on LED lifetime if not
Lighting installation or maintenance should be operated by professionals
