Home > Lights & Lighting > LED Encapsulation Series > LED Module > 5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132

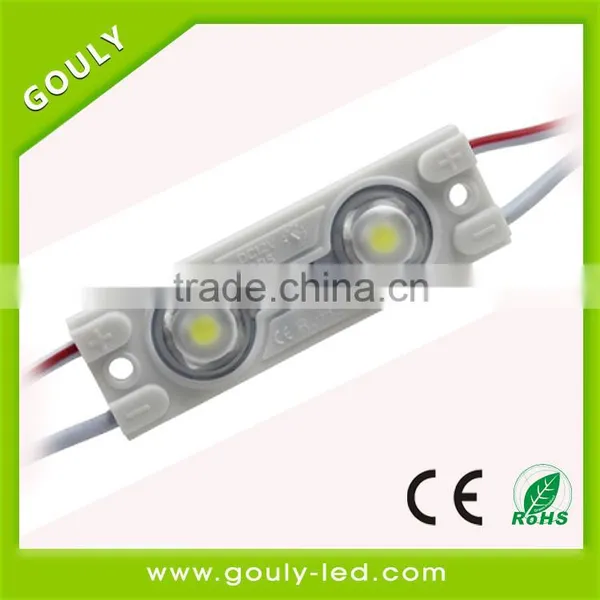

5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132

5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132 thumbnail-1
5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132 thumbnail-2
5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132 thumbnail-3
5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132 thumbnail-4
5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132 photo-1

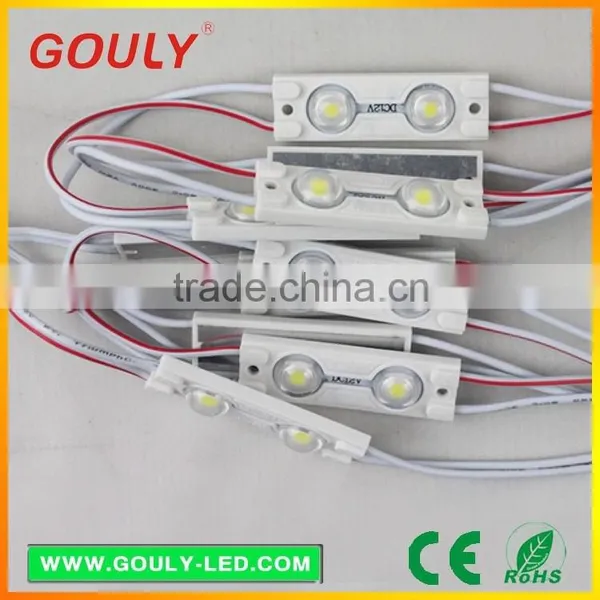

5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132 photo-2

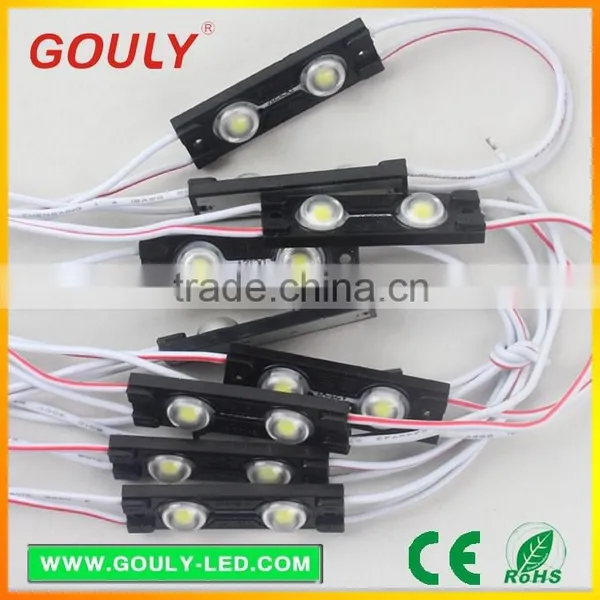

5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132 photo-3

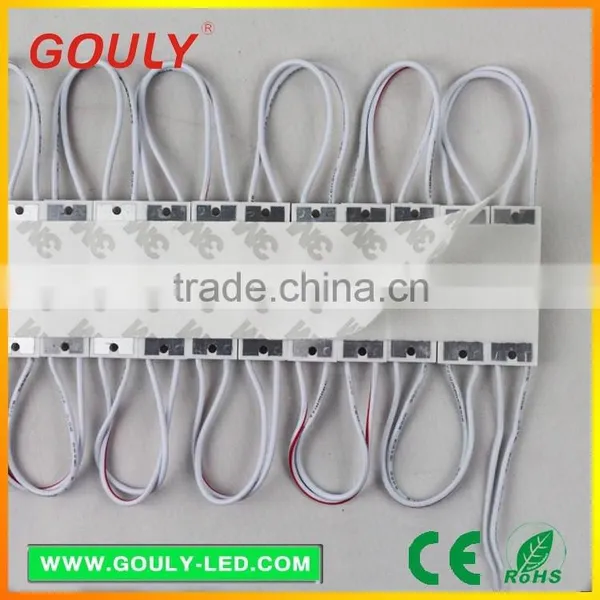

5050 Smd Led Module Samsung Led Modular 2015 New Product GLMD132 photo-4
US$ 0.29 - 0.35 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Model Number:
GLMD132
Chip Material:
GaP
Emitting Color:
Other, CW/PW/WW
Contact Supplier Request Quote Chat Now
Shenzhen Gouly LED Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number GLMD132
Chip Material GaP
Emitting Color Other, CW/PW/WW
Luminous Intensity 10000
Luminous Flux(lm) 40-44LM
Optical Attenuation(%) 10
Power Other, 0.78W
Power Dissipation 0.78W
Color Rendering Index(Ra) 80
Color Temperature 4000K
Operating Temperature(℃) -20, 40
Storage Temperature(℃) -25, 60
Place of Origin Guangdong, China
Brand Name GOULY
Certification CE

uThe advantage of our Injection LED Modules:

1. We are professional manufacturer. We can offer good price and best Quality.

2. Our LED module are completely made by machine.

3. Free sample are available, There are some LED module in stock.

4. We offer OEM and ODM services.











5050 smd led module samsung led modular 2015 new product GLMD132



5050 smd led module samsung led modular 2015 new product GLMD132









Part No

     GLMD132

LED Quantity

2 LED

Input voltage

DC 12V

Input Power

0.78W

Power factor

>0.9

Power efficiency

>90%

Luminous

40-44LM

Lighting efficiency

>80%

color temperature

6000±500K

Coloration Index

Ra>80

Working temperature

-20~40°C

Storage temperature

The storage temperature is -25~60°C in no operating mode

Life Span

>50000Hrs

Material

ABS & epoxy resin

Dimension

46*15*4.5mm

IP Rank

IP65

Quantity

1/20







5050 smd led module samsung led modular 2015 new product GLMD132



5050 smd led module samsung led modular 2015 new product GLMD132

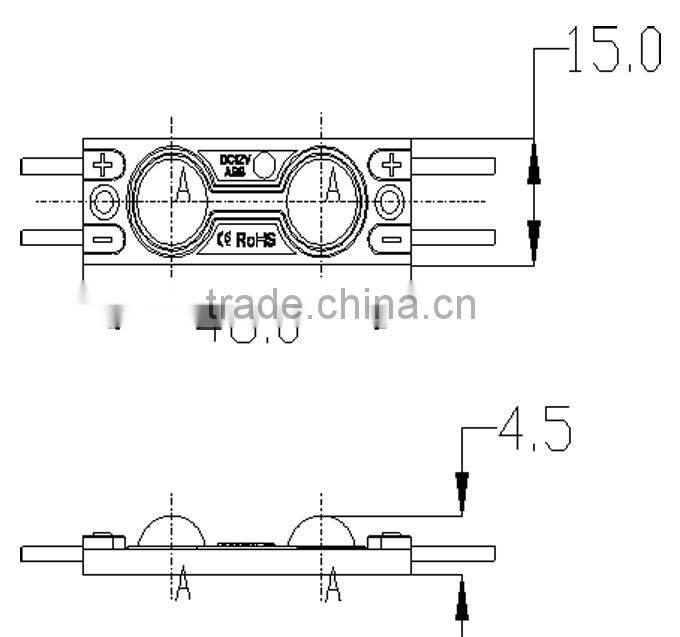

u Dimension(mm)

5050 smd led module samsung led modular 2015 new product GLMD132









  u  Production Line:





Certification:



Why Choose GOULY LED Limited ?



Quality Control:

100% of the lamps will be tested and keep lighting for 12 hours to test its quality reliability,  Then after it is cool we again test 100% of the lamps to see if it still work well. Each lamp should pass all these QC procedures before shipping to customer.



Order infomation

 MOQ: 20pcs

 Trade term: EXW / FOB Shenzhen

 Delivery time: 3-7 working days for sample order, 7-15 working days for mass order.



Warranty

Two years since the date of purchase.



1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free/rework new products



2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, SMART will provide paid maintance within warranty period.

Trade Terms:

1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union and Paypal for small amount.



2. Lead time: normally in 5~15 days after deposit received



3. Sample policy: Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .



4. Shipping port: Shenzhen , China



5. Discounts: We offer discount for big quantity.



Delivery detail:

We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~7 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.

Our services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.



2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language.

3. We offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.



4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
