Specifications
1.synchronous lifting system2.high precision,frequency control
3.CE certificate
4.High quality with competetive price

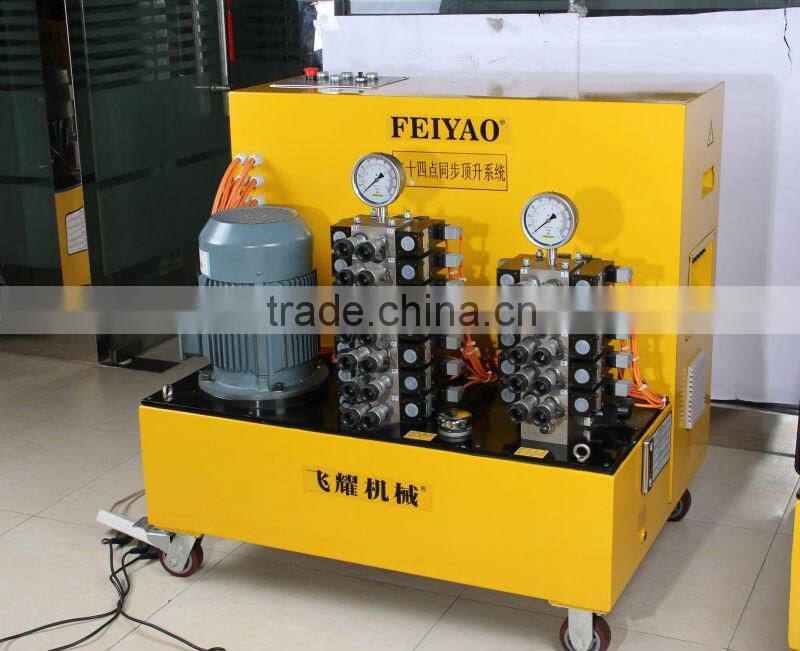

PLC synchronous lifting system
FEIYAO synchro lifting jack system can be used for synchronous jack-up of heavy objects in fields of traffic, railway, sub-railway, ship-building, construction, hydroproject.
Features
1.Computer controlled synchronous jack up system
2..Number of Lifting Points: 4, 8, 12 or 16,24, 32,64
3.Single operation ,computer controlled friendly human computer interface
4.Coupled with high precision electronic conctrol devices and displacement,pressure detection system
5.Closed loopcontrol system with frequency control,synchronization accuracy of up to ±0.25 mm
6.Two speed output ,quickly retract for plunger rod
7.Valve controlled auto balance function
8.Providing the data records, displaying illustration and printing functions
9.Vehicle mounted design, convenient for moving
Parameter information
| Model No. | Lifting weight |
Lifting height |
Min.height |
Piston diameter |
Pressure |
Single cylinder weight |
FY-TD50×4 |
50 |
160 |
335 |
70 |
70 |
23 |
FY-TD100×4 |
100 |
160 |
345 |
100 |
70 |
56 |
FY-TD150×4 |
150 |
160 |
345 |
125 |
70 |
78 |
FY-TD200×4 |
200 |
200 |
385 |
150 |
70 |
110 |
FY-TD320×4 |
320 |
200 |
400 |
180 |
70 |
206 |
FY-TD500×4 |
500 |
200 |
440 |
200 |
70 |
460 |
FY-TD600×4 |
600 |
200 |
460 |
200 |
70 |
580 |
Typical application of synchro lifting system
June .1998,synchronous system applied on beijing —shanghai high—speed bridge to replace the bridge rubber bearing
Septemper.2002, synchronous system applied on blast furnace examine and repair in ansteel group. May .2006, synchronous system applied on separation of mold equipment in changchun first automobile Ltd.
March .2011,synchronous system applied on shanghai—nanjing high—speed bridge to replace the bridge rubber bearing
Brief Introduction of FEIYAO
Established in 1978, Jiangsu Feiyao Machinery Manufacturing factory is an professional leading manufacturer of hydraulic tools in China. Such as PLC lifiting systerm, hydraulic cylinders, torque wrench, nut splitter, flange spreader, gear pullers, hydraulic pumps and accessories etc.
Our products have been widely sold to Europe, South-east Asia and Middle East, and have got high appreciation and trust from all our customers. Whenever you need hydraulic products, please rememmber our company is always your reliable friends.
Our well-equipped facilities and excellent quality control enables us meet customers' satisfaction. Besides, we have gained CE and ISO9001 certificates.
We warmly welcome all overseas customers to talk with us about business or other cooperations.
Any phone call, E-mali, Fax from you would be a beginning of happy cooperation.
Showroom
Workshop
Warehouse
R&D Team
Certification
