ABA Type Plastic film extrusion for HDPE and calcium carbonate
I. Three layer ABA film blowing machine description
Wholeheartedly for the new and old customers to provide quality and reliable products and satisfactory service, ABA film blowing machine, in the production of HDPE, LDPE and LLDPE material, has a unique advantage. The physical strength of the film is improved by co-extrusion. its two hosts supply three-layer extrusion. One with internal filling layer. You can decrease one of the hosts configuration for the purpose of reducing the cost, saving energy and low consumption. At the same time, the internal filling layer can be added to the recovery of the material and calcium carbonate which accounts for more than 80% of the total output. It can greatly reduce the production process of raw material costs to provide customers with stronger market competitiveness
II. Three layer ABA film blowing machine specification
Model |
SD-2LABA700 |
SD-2LABA800 |
SD-2LABA1200 |
SD-2L400-2 |
Suitable Material |
HDPE, LDPE, LLDPE, EVA |
|||
Film Width |
700mm |
800mm |
1200mm |
400mm*2 |
Film thickness |
0.008-0.1mm |
0.008-0.1mm |
0.008-0.1mm |
0.008-0.1mm |
Max. Output |
100kg/h |
120kg/h |
120kg/h |
120kg/h |
Screw Diameter |
50mm*2 |
55mm*2 |
55mm; 65mm |
55mm*2 |
Screw L/D |
30:1 |
|||
Screw Material |
SCAM-645 / 38CrMoAlA+PTA |
|||
Average Power-consumption |
25kw |
28kw |
30kw |
30kw |
Die Size |
80mm(HDPE) |
80mm(HDPE) |
300mm(LDPE) |
80mm*2 |
Take-Up Speed |
120m/min |
120m/min |
120m/min |
120m/min |
Winding Type |
Surface friction type |
|||
Winding Speed |
120m/min |
120m/min |
120m/min |
0.008-0.1mm |
Voltage |
380V. 50HZ. 3 PHASE |
|||
Dimension (L*W*H) |
5.0*2.8*5.5m |
5.*3.7*7.0m |
6.0*4.0*6.5mm |
5.0*3.5*5.8mm |

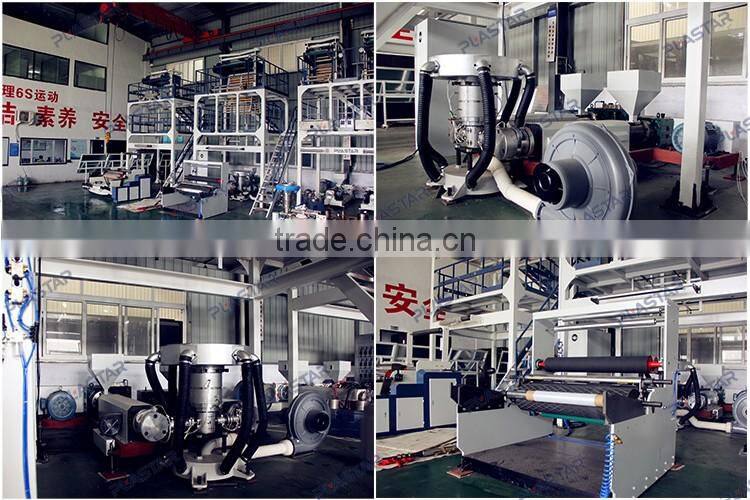

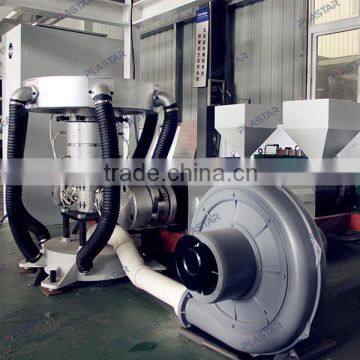

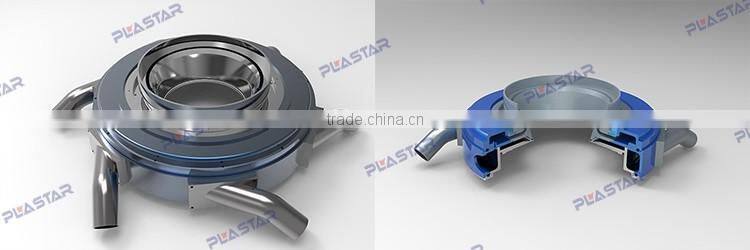

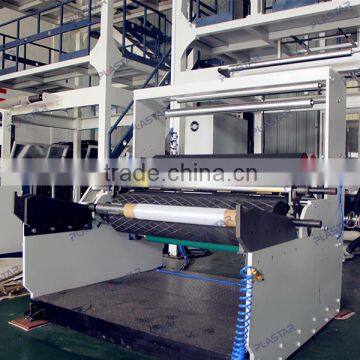

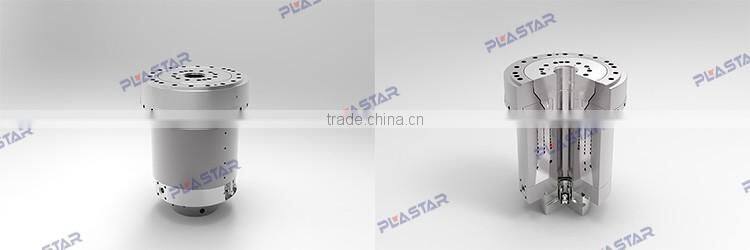

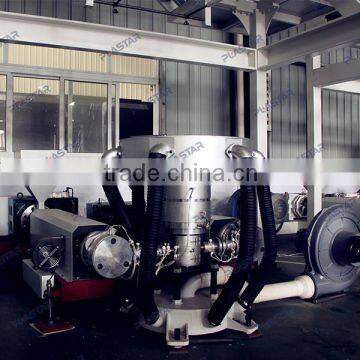

III. Three layer ABA film blowing machine detailed images

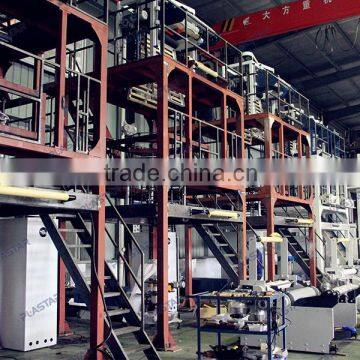

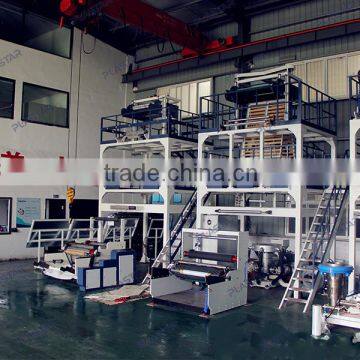

IV. Our Workshop
V. Three layer ABA film blowing machine features
Three layer ABA film blowing machine equip with good quality device and use reasonable design make the film blowing machine have a good stability and good plastify, this kind of machine have a higher output, and this kind of machine is suit to make plastic bag, such shopping bag, garbage bag, T-shirt bag, and other plastic bags.
1- Max. output can reach 120kg/h
2- Lower power consumption
3- Lower noise
4- Good stability
5- Good plastify
VI. Quality control
We have a special QC department in charge of product's quality.
VII. Certificate
Our company have experience R&D engineer to ensure our products have reasonable design, to make the machine have a good effect and qualtiy.

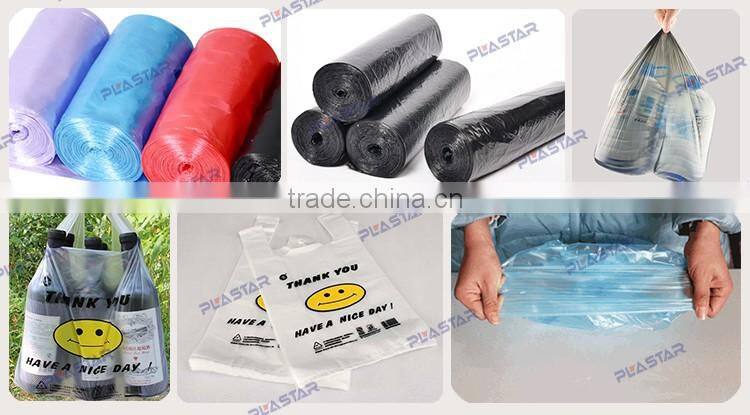

This kind of film blowing machine produce the plastic film use to flexible packaging and make plastic bags, Like shopping bag, garbage bag, T-shirt bag.
Ruian Aoxiang Packaging Machinery Co.,Ltd was founded in 2008, which is located in the China packing machinery City-Ruian, Zhejiang. It is a professional plastic packing machinery enterprises with high science and technology. Our main products are multi-layer Co-extrusion film blowing machine with inner cooling device, stretch film machine etc. Are sold all over the world, such as Europe, the Middle East, India, Pakistan, Turkey, Mexico, Yemen and other country, multi-layer co-extrusion film blowing machine is the top exporting sale in China every year, and get good comments by customers.
Our company adopt the ISO9001 international quality management system, and also get the EU. CE product certification. With “integrity, quality, service, innovation”, we always improve and innovate technology to get the best service and the most reliable, competitive machine. We take up the most of packing machinery market. So our machine become internationalization, globalization in future soon.
2015 Guangzhou ChinaPlas, We show our three layer film blowing machine, Mini type film blowing machine and ABA three layer film blowing machine.
1. By T/T, L/C or Western Union
2. One year guarantee
3. Can offer free spare parts
4. Have engineer come to your country for test.
1. 7 days after your order
2. Stretch film packing, easy damage part in wooden box.
3. By sea
1. Q: Are you a factory or trading company?
A: We are a factory
2. Q: What certificate do you have?
A: We have ISO9001, SGS, GB4455 and CE certificate.
3. Q: How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What's the main market of your company?
A: we have customers all over the world.
6. Q: What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
7. Q: Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
8. Q: Where is your factory located? How can we visit there?
A: Our factory located in Feiyun Industry Zone, Ruian City, Zhejiang Province, CHina.
You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.
We welcome all friends ro visit us for future cooperation!
