PE Film Extruder
- 20 Set / Sets per Month
- Ningbo / Shanghai
- T/T Credit Card
Product Details
Condition: | New | Application: | Other, Film, Industry, Agriculture, Household, etc. | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Zhejiang, China |
Brand Name: | Aoxiang | Model Number: | MSD-45 | Voltage: | 380V 50HZ |
Power(W): | 35 kw | Dimension(L*W*H): | 4500*2000*3700mm | Weight: | 2.5 T |
Certification: | CE ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

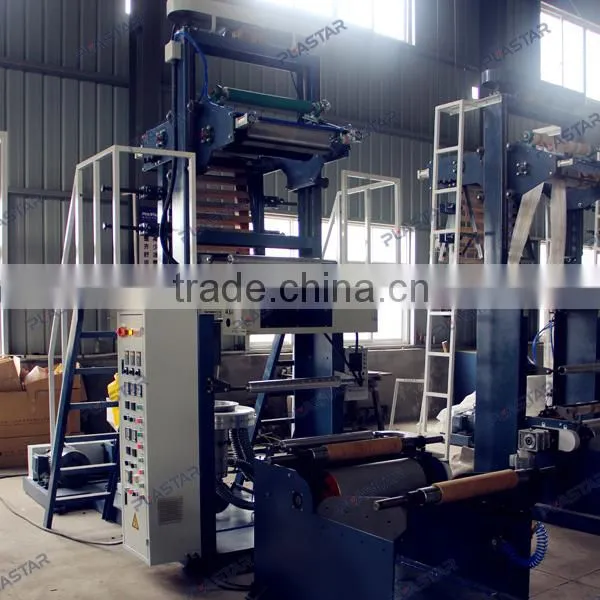

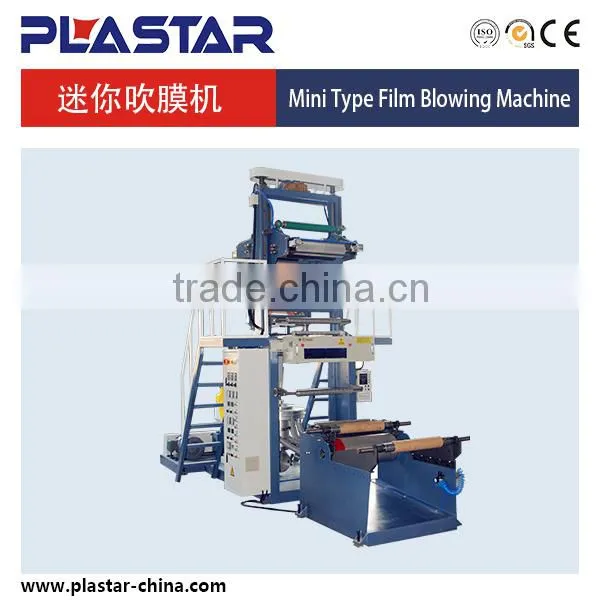

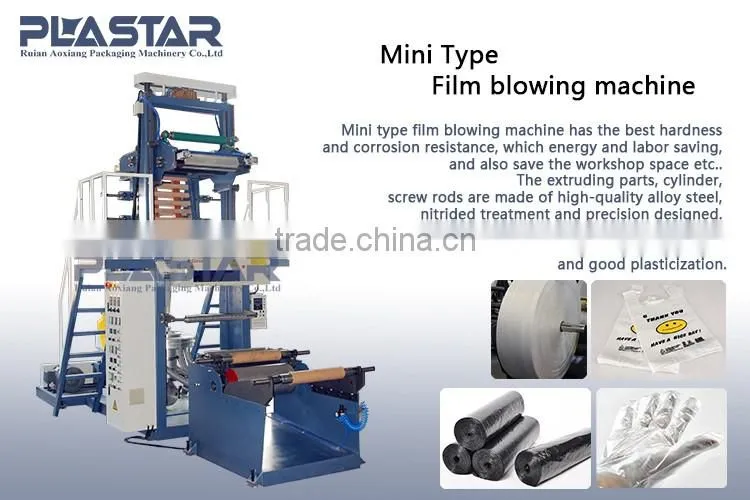

I. Mini film blowing machine description
Mini type film blowing machine has the best hardness and corrosion resistance, which energy and labor saving, and also save the workshop space etc.. The extruding parts, cylinder, screw rods are made of high-quality alloy steel, nitrided treatment and precision designed. It has the best hardness and corrosion resistance. With special designed screw, it has high output and good plasticization.
It is suitable for blowing low density polyethylene (LDPE) and high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) plastic film, which is widely used in the packaging food, clothing, bags, vest bags and other packing area.
II. Mini film blowing machine specification
Model | MSD-45 | SD-50 | SD-55 | SD-60 |
Suitable Material | HDPE, LDPE, LLDPE, EVA | HDPE, LDPE, LLDPE, EVA | HDPE, LDPE, LLDPE, EVA | HDPE, LDPE, LLDPE, EVA |
Film Width | 100-500mm | 300-600mm | 400-800mm | 600-1200mm |
Film thickness | HDPE: 0.006-0.05mm LDPE: 0.02-0.15mm | HDPE: 0.006-0.05mm LDPE: 0.02-0.15mm | HDPE: 0.006-0.05mm LDPE: 0.02-0.15mm | HDPE: 0.006-0.05mm LDPE: 0.02-0.15mm |
Max. Output | HDPE: 45kg/h LDPE: 50kg/h | HDPE: 50kg/h LDPE: 55kg/h | HDPE: 55kg/h LDPE: 60kg/h | HDPE: 75kg/h LDPE: 80kg/h |
Screw Diameter | 45mm | 50mm | 55mm | 60mm |
Screw L/D | 30:1 | 30:1 | 30:1 | 30:1 |
Screw Material | SACM-645 / 38 CRMOALA | SACM-645 / 38 CRMOALA | SACM-645 / 38 CRMOALA | SACM-645 / 38 CRMOALA |
Average Power-consumption | 9kw | 11kw | 15kw | 21kw |
Die Size | HDPE: 60/80mm LDPE: 100/120mm | HDPE: 60/100mm LDPE: 120/150mm | HDPE: 80/100mm LDPE: 180/200mm | HDPE: 120/150mm LDPE: 220/250mm |
Take-Up Speed | 10-110m/min | 10-110m/min | 10-110m/min | 10-110m/min |
Winding Type | Surface friction type | Surface friction type | Surface friction type | Surface friction type |
Winding Speed | 10-110m/min | 10-110m/min | 10-110m/min | 10-110m/min |
Voltage | 380V, 50HZ, 3Phase | 380V, 50HZ, 3Phase | 380V, 50HZ, 3Phase | 380V, 50HZ, 3Phase |
Dimension (L*W*H) | 3.8*1.6*3.6m | 3.8*1.6*3.6m | 5.0*2.5*5.0m | 5.0*2.6*6.0m |

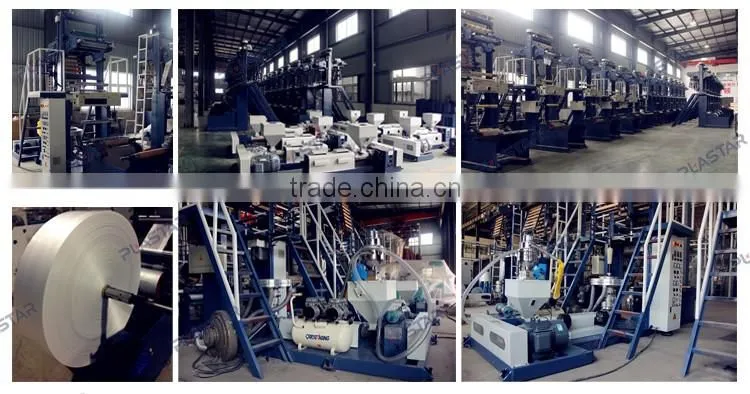

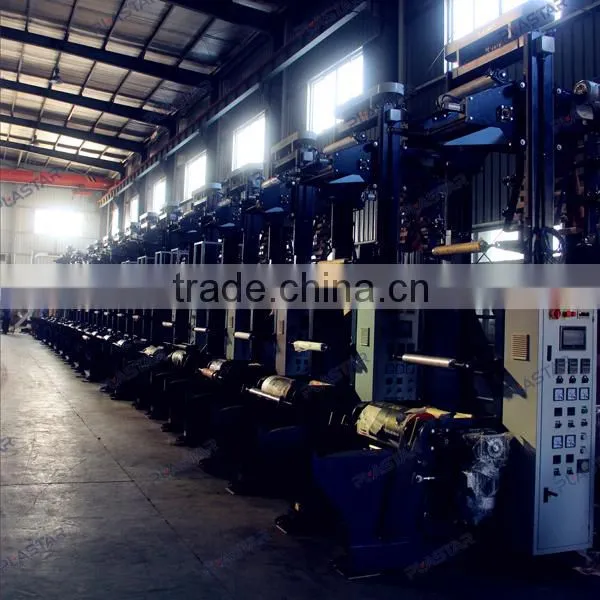

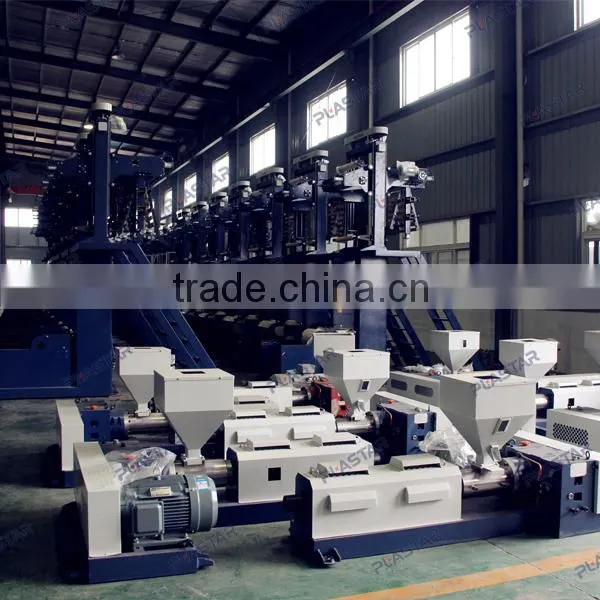

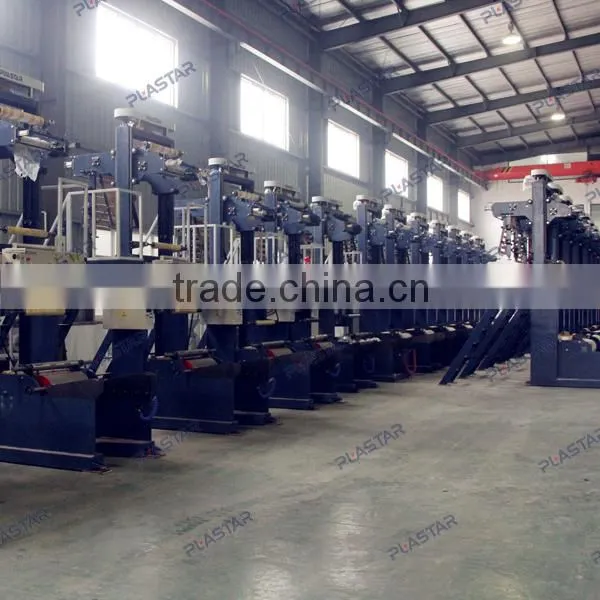

IV. Our Workshop
V. Mini film blowing machine features
Mini type film blowing machine equip with good quality device and use reasonable design make the mini film blowing machine have a good stability and good plastify, this kind of machine max output can reach to 50kg/h, this kind of machine is suit to make plastic bag, such shopping bag, garbage bag, T-shirt bag, and other plastic bags.
1- Max. output can reach 50kg/h
2- Lower power consumption
3- Lower noise
4- Good stability
5- Good plastify
6- Lift-type Take-up unit
7- Max. Winding diameter: 1300mm
VI. Quality control
We have a special QC department in charge of product's quality.
VII. Certificate
Our company have experience R&D engineer to ensure our products have reasonable design, to make the machine have a good effect and qualtiy.
Mini film blowing machine produce the plastic film use to flexible packaging and make plastic bags, Like shopping bag, garbage bag, T-shirt bag.
Ruian Aoxiang Packaging Machinery Co.,Ltd was founded in 2008, which is located in the China packing machinery City-Ruian, Zhejiang. It is a professional plastic packing machinery enterprises with high science and technology. Our main products are multi-layer Co-extrusion film blowing machine with inner cooling device, stretch film machine etc. Are sold all over the world, such as Europe, the Middle East, India, Pakistan, Turkey, Mexico, Yemen and other country, multi-layer co-extrusion film blowing machine is the top exporting sale in China every year, and get good comments by customers.
Our company adopt the ISO9001 international quality management system, and also get the EU. CE product certification. With “integrity, quality, service, innovation”, we always improve and innovate technology to get the best service and the most reliable, competitive machine. We take up the most of packing machinery market. So our machine become internationalization, globalization in future soon.
2015 Guangzhou ChinaPlas, We show our three layer film blowing machine, Mini type film blowing machine and ABA three layer film blowing machine.
1. By T/T, L/C or Western Union
2. One year guarantee
3. Can offer free spare parts
4. Have engineer come to your country for test.
1. 7 days after your order
2. Stretch film packing, easy damage part in wooden box.
3. By sea
1. Q: Are you a factory or trading company?
A: We are a factory
2. Q: What certificate do you have?
A: We have ISO9001, SGS, GB4455 and CE certificate.
3. Q: How dose your factory do regarding quality control?
A: We have a special QC department in charge of product's quality.
4. Q: How long is the warranty period?
A: All of our products have one year warranty.
5. Q: What's the main market of your company?
A: we have customers all over the world.
6. Q: What is your delivery time?
A: Normally, It needs about 45 days. The exact time depends on production management.
7. Q: Can we visit your machine operation in your factory?
A: We have own plastic making company, you can see the machine operation.
8. Q: Where is your factory located? How can we visit there?
A: Our factory located in Feiyun Industry Zone, Ruian City, Zhejiang Province, CHina.
You can by air to Wenzhou Airport and by High-speed rain to Ruian Station.
We welcome all friends ro visit us for future cooperation!
