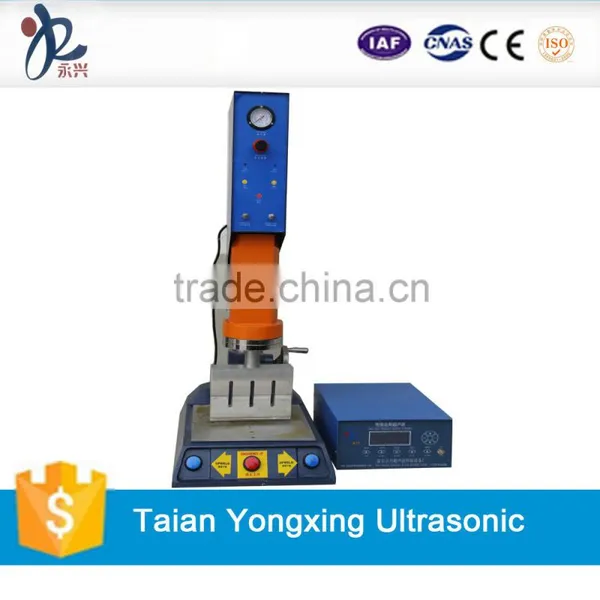

Desktop type Ultrasonic Plastic Welding Machine YX-1528
Desktop type ultrasonic plastic welding machine is widely used for ABS, PC, PS, PA, PP, PET, Acrylic and other industry plastic parts's welding, riveting, heeling-in molding processing; kettle, folder, earphone, U-disk, phone battery, recharger, toys, ecectrical watch, Instrument, phone case, CD case and some other platic parts welding, riveting, molding etc.

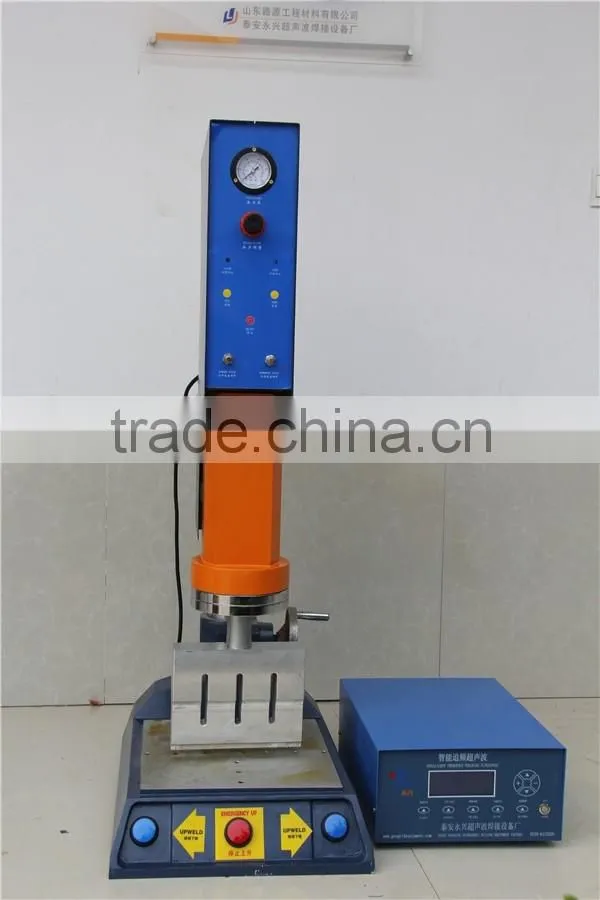

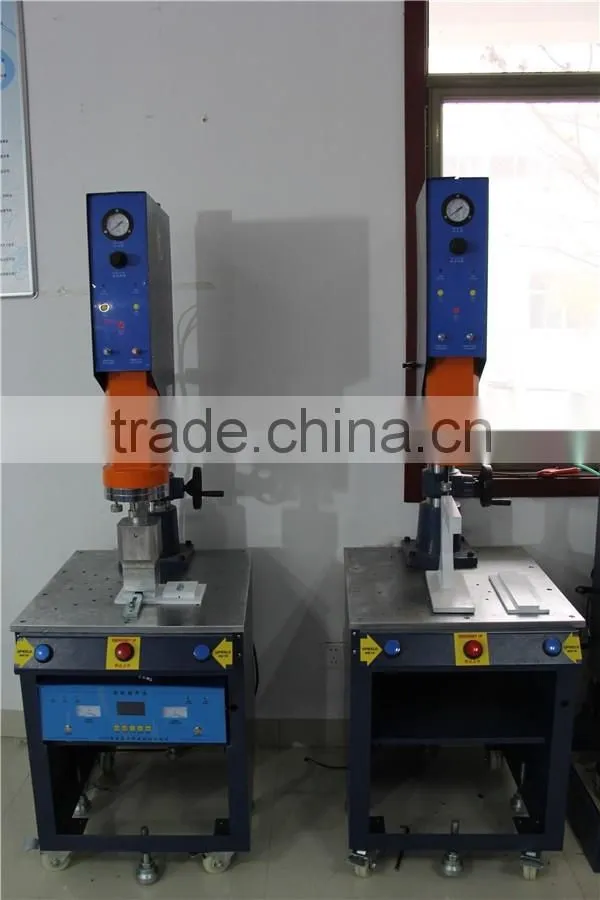

Cabinet-type Ultrasonic Plastic Welding Machine:

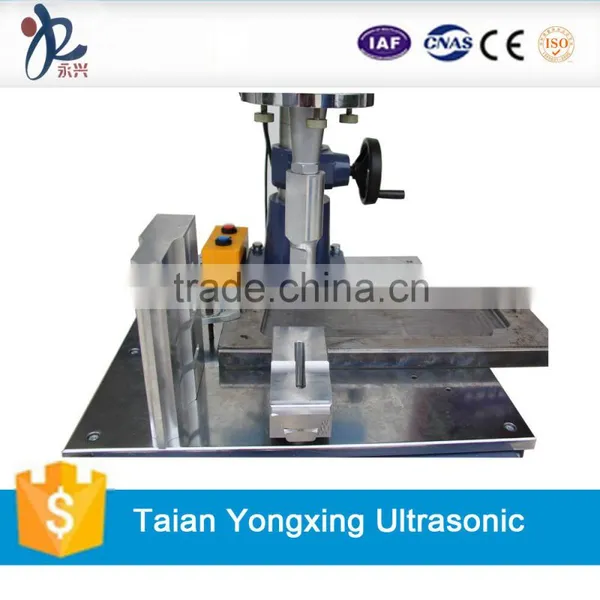

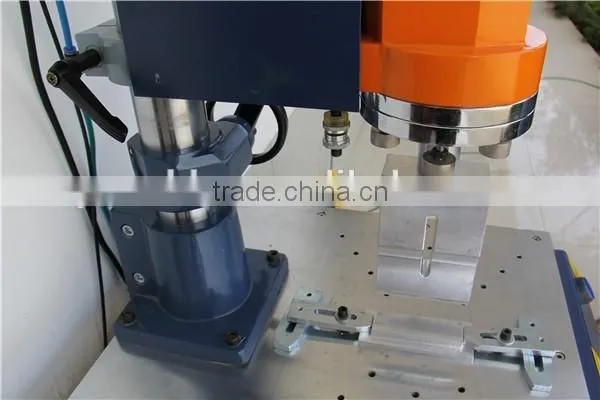

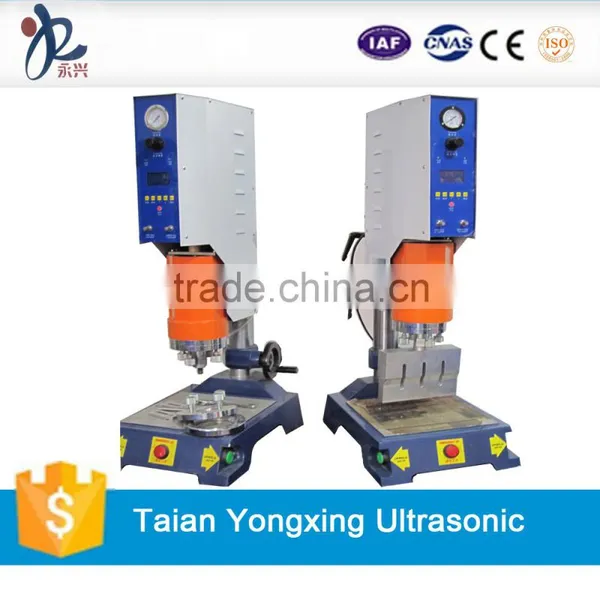

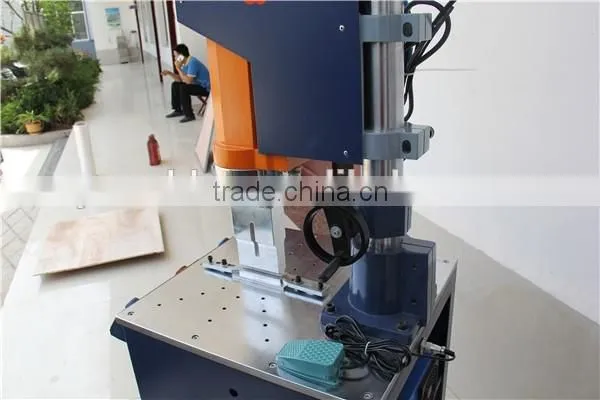

Table-type Ultrasonic Plastic Welding Machine:
1. Imported piezoelectric ceramics transducer from Germany, steady and stronger output;
2. The machine body adopts anti-recline design and coaxial vertical pressure design. The pressure imposed is more balanced and the welding accuracy is improved greatly;
3. LCD demonstration, soft push on the control panel;
4. The molds are designed into adjustable balance structure which is easy and convenient for mold adjusting;
5. New power enlargement electricity circuit, the power is stronger and the transducers are more durable, better for PP nylon materials;
6. Automatic frequency tracking system, types of parameters-presetting;
7. The main electric components are imported from Germany and USA.

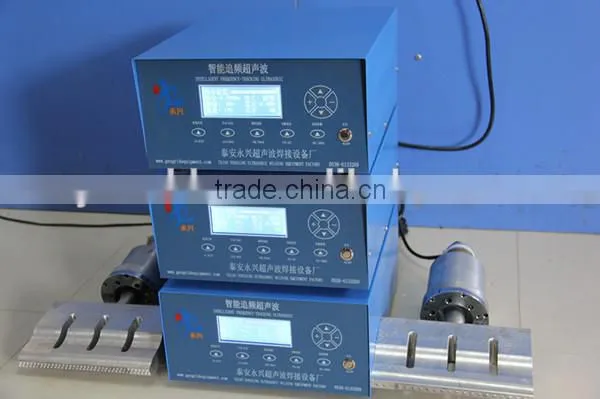

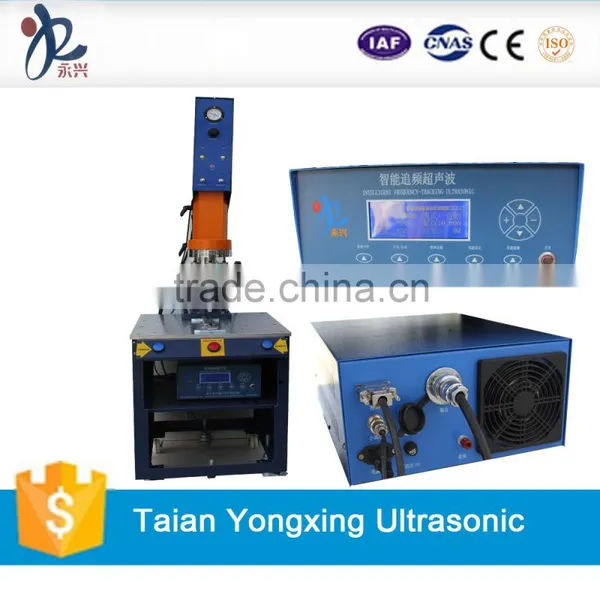

Intelligent Automatic Frequency-tracking Ultrasonic Generator:

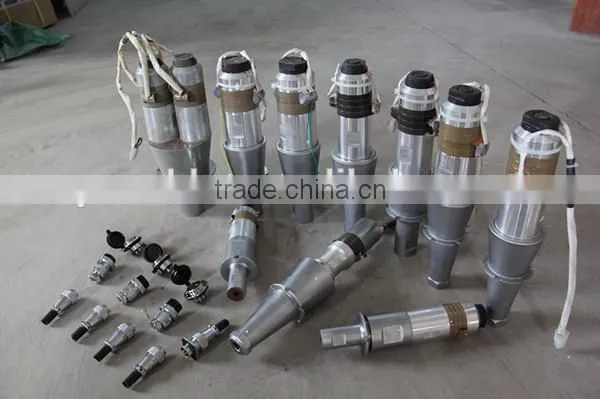

Ultrasonic Transducer of Titanium or Aluminum:
Ultrasonic Transducer:
Parts Marking:

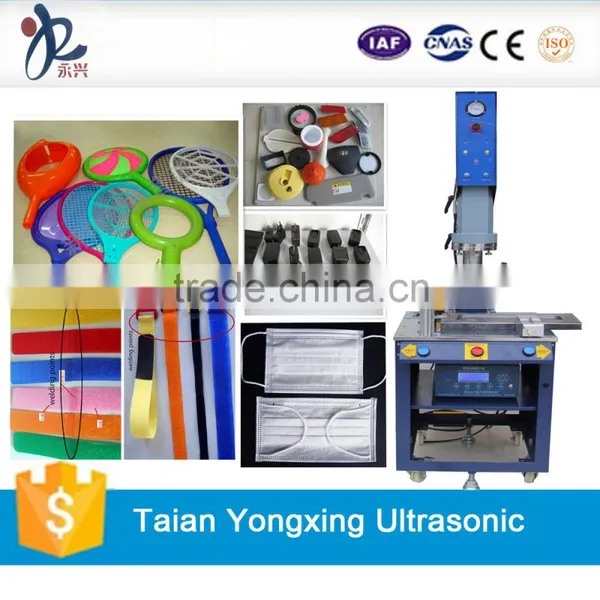

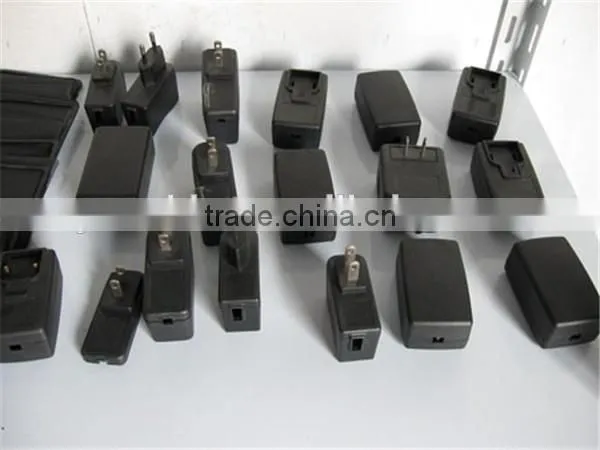

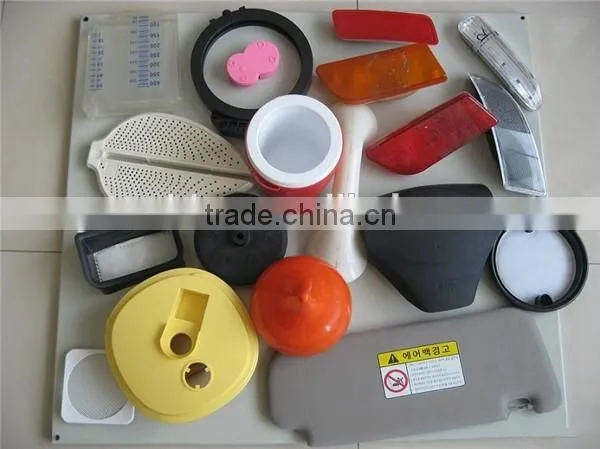

ABS, PP, PC, PE, PVC, SAN, Acrylic, NORYL, PVC alloy and other products:

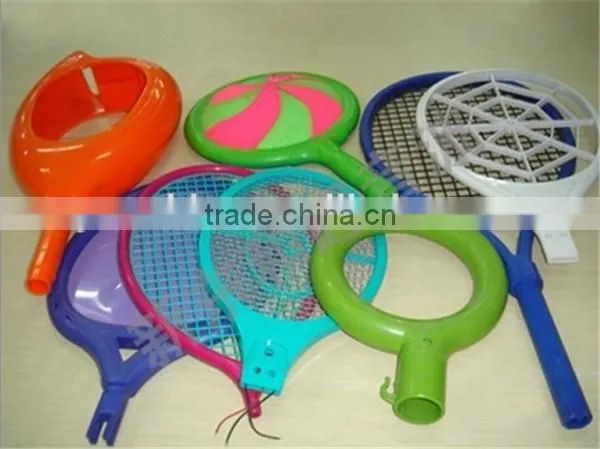

1. Toys: plastic toys, plastic gun, plastic skateboard, plastic cards, remote control models, squirt gun and entertainment tools;
2. Electronics: video shell, video disk and typing ribbon;
3. Food: thermos, food boxes;
4. Stationary: pencil box, PP file folder, pen holder;
5. Household Electrical Appliance: balancing ring of washing machine, computer, steam iron;
6. Motor: switch plug, rectifier, battery;
7. Traffic Equipment: headlight, rear light, car filter;
8. Other Industries: Christmas decorations, plastic lighter.

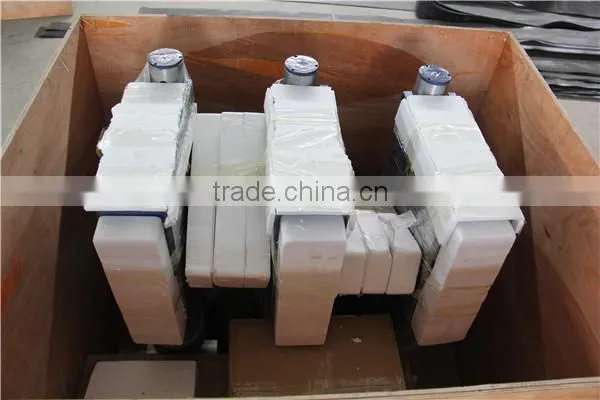

We usually pack the Generator, pneumatic components and pedal into seperate carton boxes, and pack the machine frame with PE film. Then the machine and components are fixed into the Fumigation-free wooden case.
|
Parameters Model |
YX-1518 |
YX-1522 |
YX-1526 |
YX-1528 |
Output power |
1800W |
2200W |
2600W |
2800W |
The working frequency |
15KHz |
15KHz |
15KHz |
15KHz |
Working voltage |
AC220V50Hz |
|||
Working stroke |
70mm |
|||
Working pressure |
2-7kgf/cm2 |
|||
The shape size |
400*600*1200 |
|||
Net weight |
100kg |
105kg |
110kg |
115kg |
1. We have our own factory and professional designers. We can manufacture what you need with competitive price totally as your requests;
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in equipmet design and engineering construction;
3. Different country has different environment, voltage and other elements which related to production. Don't worry we have the most professional engineers to clear all the concerns and promise the regular production in your country.
We are looking forward to your sincerely cooperation. If you have any questions, please feel free to contact us:
