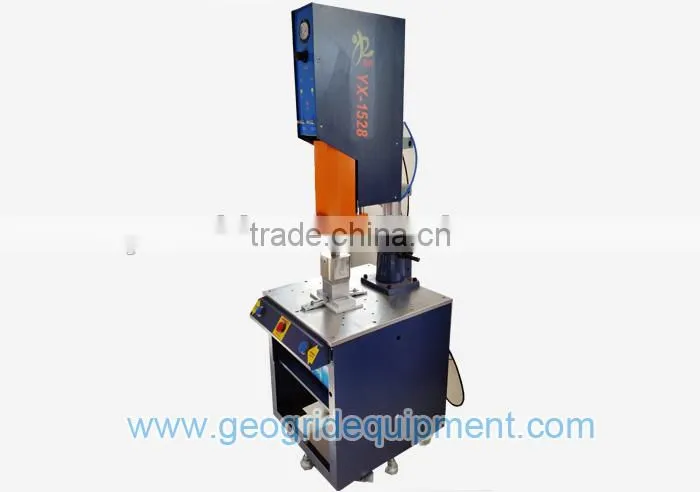

ultrasonic welding machine
What is our machine?
Ultrasonic welding is a high-tech which is used on welding thermoplastic products, and all kinds of thermoplastic rubber products can be welded by ultrasonic. It doesn’t need any adhesives, supplements or solvents, and it’s low energy-consuming. The machine has the advantages of simple operation, high welding strength and productivity. Therefore, ultrasonic welding technology has been used more and more widely and deeply in recent years
Our machine advantages:

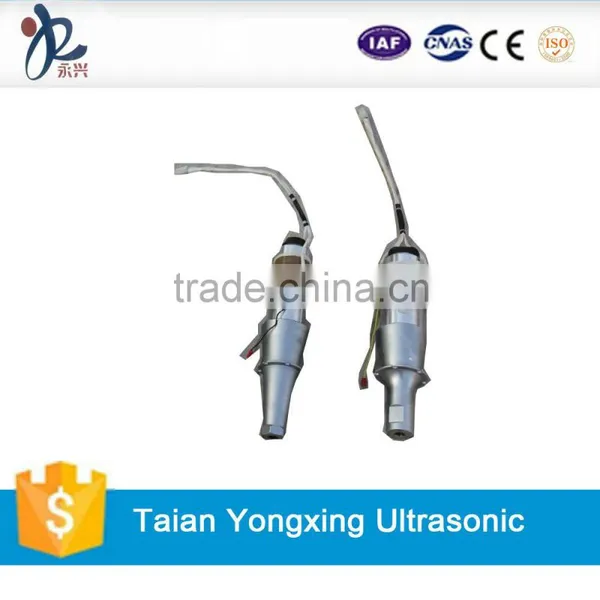

1. Imported piezoelectric ceramics transducer from Germany, steady and stronger output;
2. The machine body adopts anti-recline design and coaxial vertical pressure design. The pressure imposed is more balanced and the welding accuracy is improved greatly;
3. LCD demonstration, soft push on the control panel;
4. The molds are designed into adjustable balance structure which is easy and convenient for mold adjusting;
5. New power enlargement electricity circuit, the power is stronger and the transducers are more durable, better for PP nylon materials;
6. Automatic frequency tracking system, types of parameters-presetting;
7. The main electric components are imported from Germany and USA.

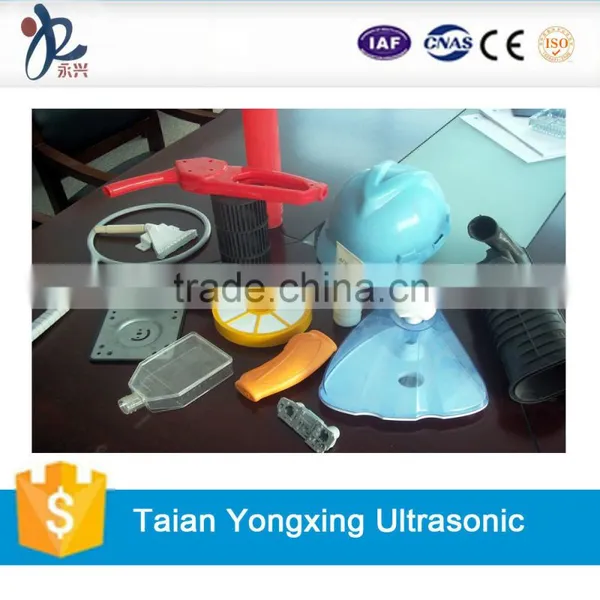

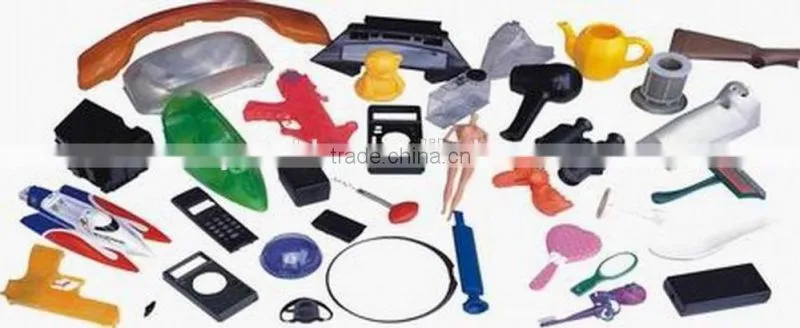

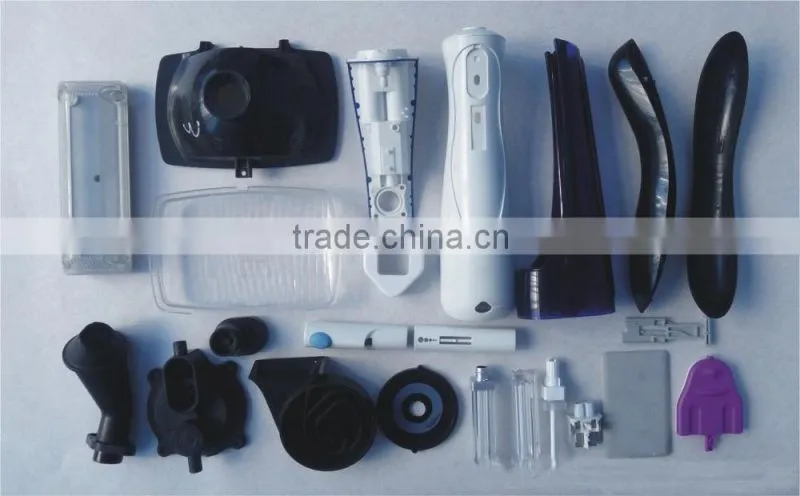

Our machine Application:
ABS, PP, PC, PE, PVC, SAN, Acrylic, NORYL, PVC alloy and other products:
1. Toys: plastic toys, plastic gun, plastic skateboard, plastic cards, remote control models, squirt gun and entertainment tools;
2. Electronics: video shell, video disk and typing ribbon;
3. Food: thermos, food boxes;
4. Stationary: pencil box, PP file folder, pen holder;
5. Household Electrical Appliance: balancing ring of washing machine, computer, steam iron;
6. Motor: switch plug, rectifier, battery;
7. Traffic Equipment: headlight, rear light, car filter;
8. Other Industries: Christmas decorations, plastic lighter.
Technical Parameter:
|
Parameters Model |
YX-1518 |
YX-1522 |
YX-1526 |
YX-1528 |
Output power |
1800W |
2200W |
2600W |
2800W |
The working frequency |
15KHz |
15KHz |
15KHz |
15KHz |
Working voltage |
AC220V50Hz |
|||
Working stroke |
70mm |
|||
Working pressure |
2-7kgf/cm2 |
|||
The shape size |
400*650*1200 |
|||
Net weight |
100kg |
105kg |
110kg |
115kg |
